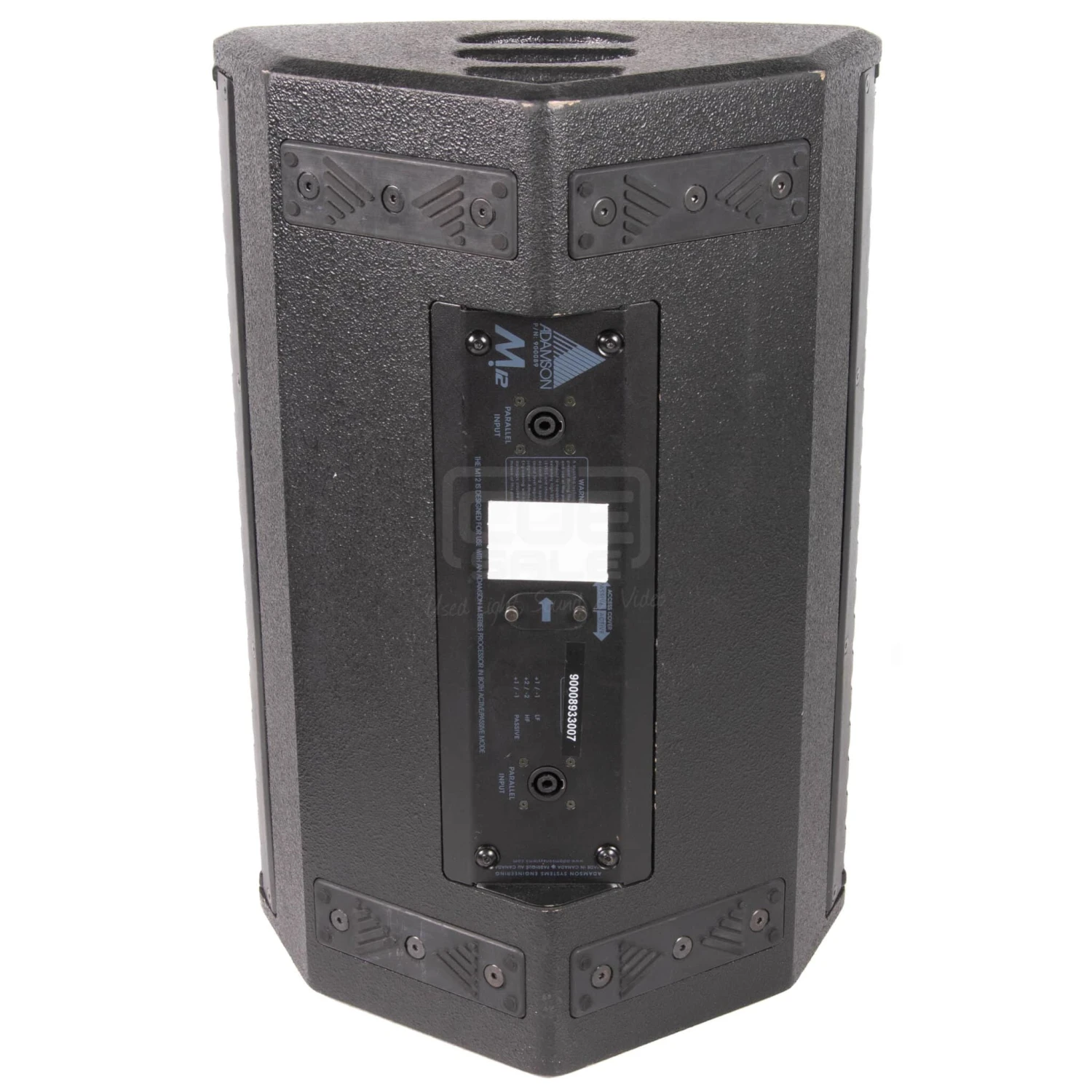

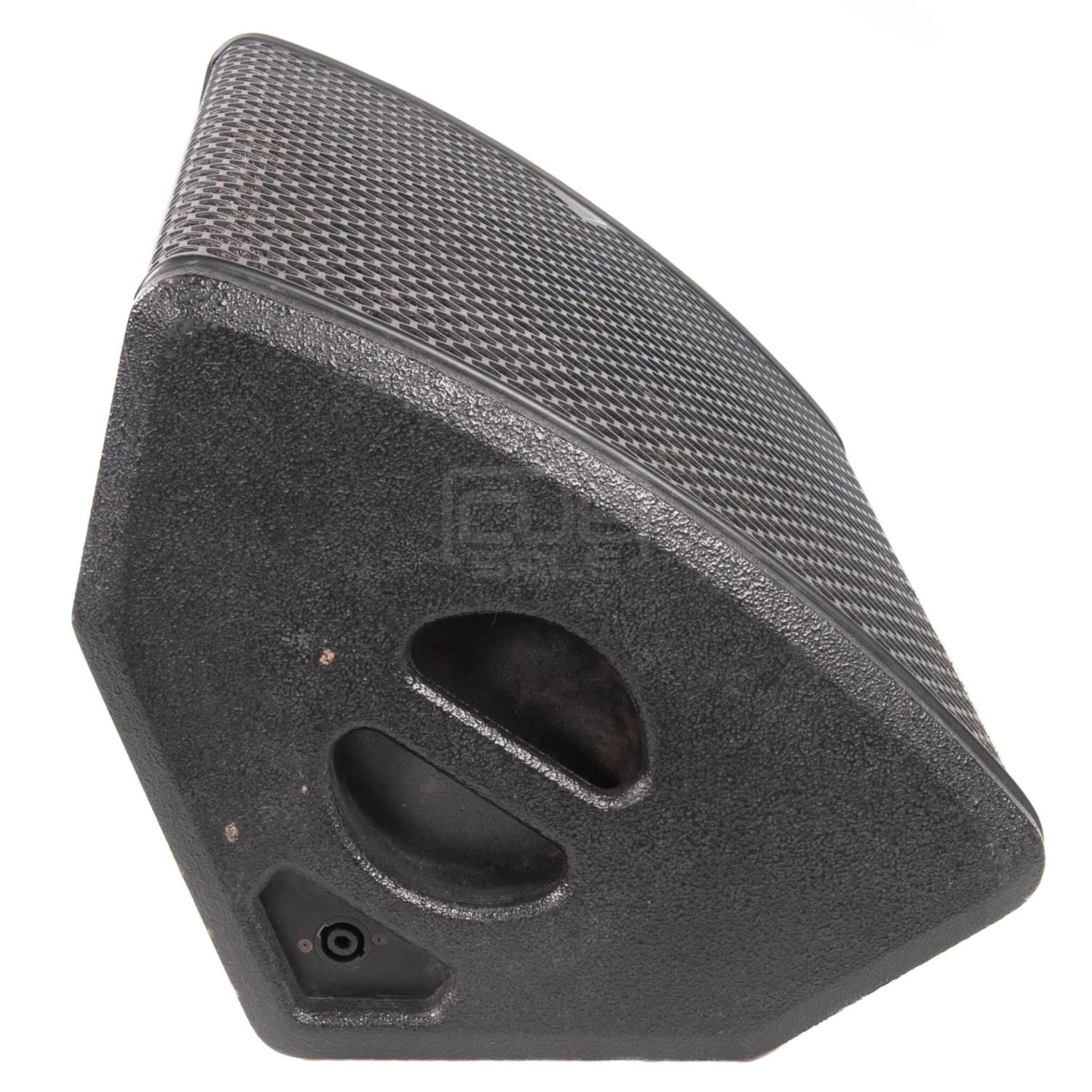

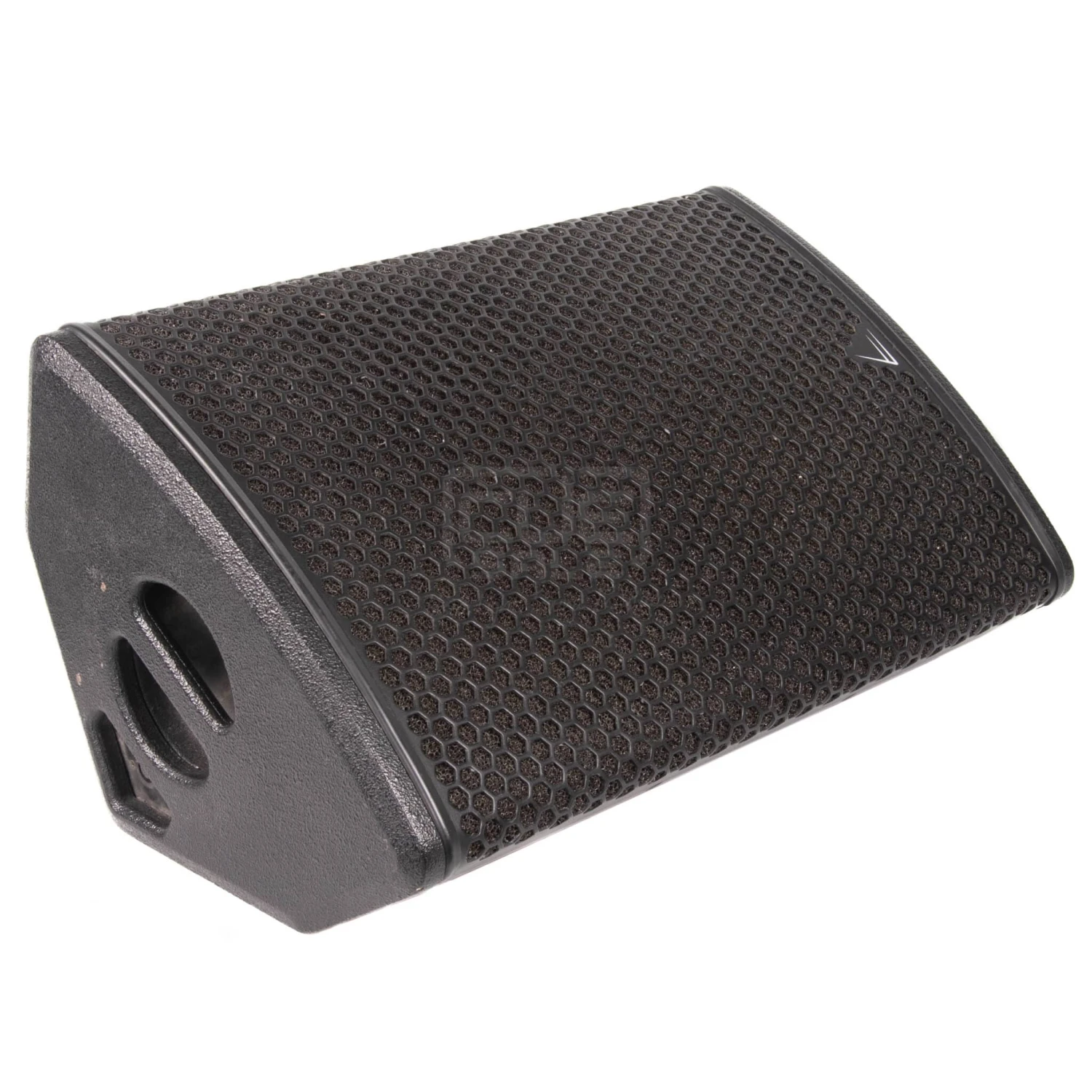

Adamson M12 Stage Monitor

Adamson M12 Stage Monitor

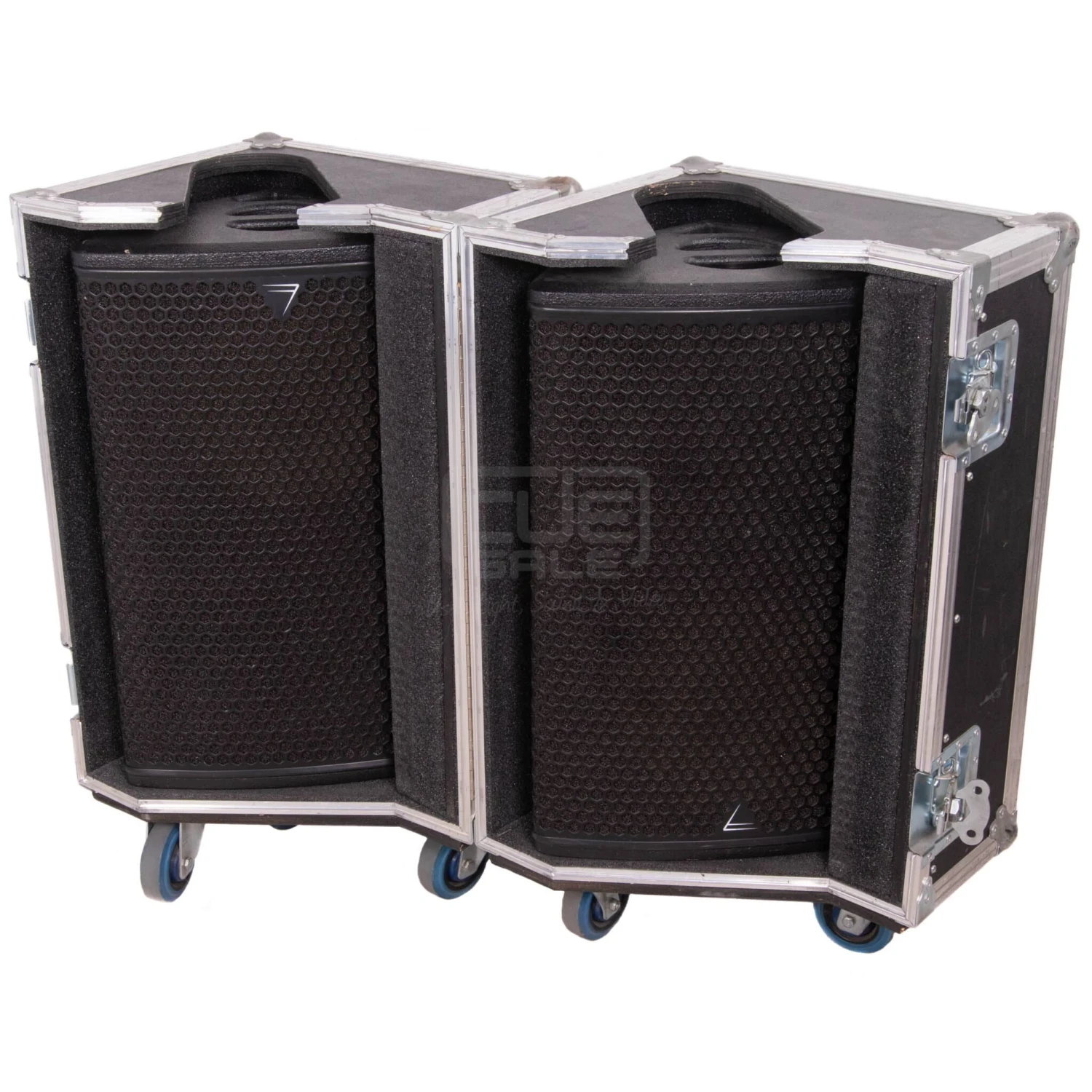

Flightcase included when buying 2 units.

The incredibly lightweight Adamson M12 monitor delivers everything you need in a low profile stage monitor: fantastic gain before feedback, precise pattern control and high output with extremely low distortion. Together, the symmetrical trapezoid design and the 65° x 65° waveguide, allow any two M12s to operate as a mirrored pair. The M12 exhibits remarkably low distortion thanks to the qualities of its advanced multi-layer Kevlar cone driver.

Specifications :

Frequency Range (+/-3 dB) : 60 Hz – 18 kHz
Nominal Directivity (-6 dB) : H x V 65° x 65°
Maximum Peak SPL  : 136.9 dB Active, 136.7 dB Passive
Components LF : 12″ ND12-L Kevlar Neodymium Mid-Bass Driver
Components HF : B&C DE920TN 3″ Diaphragm / 1.4″ Exit Compression Driver
Nominal Impedance LF : 8 Ω
Nominal Impedance HF : 8 Ω
Nominal Impedance Passive : 8 Ω
Power Handling (AES / Peak) LF : 500 / 2000 W
Power Handling (AES / Peak) HF : 110 / 440 W
Power Handling (AES / Peak) Passive : 610 / 2440 W
Connection : 4x Speakon™ NL4
Height Front (mm / in) : 343 / 13.5
Width (mm / in) : 638 / 25.1
Depth (mm / in) : 401 / 15.8
Weight (kg / lbs) : 19.3 / 42.5
Supported Processing : Lake, XTA
