Analog Way Quattro D HD Seamless Switcher

Analog Way Quattro D HD Seamless Switcher

QUATTRO D by Analog Way is High Resolution Digital and Analog Computer & Video Up/Down Scaler Switcher. It is fitted with 4 Universal A/V inputs including one DVI, and 2 outputs: 1 Analog and 1 DVI. It performs an ultra fast and smooth transition between any Video or Computer sources.
The device is a High Performance State of the Art Up/Down Video and Computer Scaler. Ready to fit the native resolution of the latest HD display devices, it provides a high quality image thanks to its high quality digital decoder, improved 3:2 and 2:2 pull down circuitry, auto-adaptative pixel by pixel 3D motion compensation, time base corrector, frame rate converter & follower.
Easy to use, the device offers Auto Setup function, Auto Clock and Phase for Computers. Each input image control – brightness, contrast, color, hue, processing, aspect ratio, zoom, etc … – can be individually set and stored in nonvolatile memories. Each of the 4 Inputs is fitted with a stereo audio line. The audio can either follow or break away from the Video image. The device is fitted with a Dual RS232 Com port for Integral remote control and automatic control of other devices in the installation.

Specifications :

• 4 Universal Inputs :
  • Composite Video NTSC = 15.735 kHz/60 Hz ; PAL/SECAM = 15.625 kHz/50Hz
  • S.Video (Y/C) NTSC = 15.735 kHz ; PAL/SECAM = 15.625 kHz/50Hz
  • Component (YUV) 15.625 kHz/50 Hz – 625L ; 15.735 kHz/60 Hz – 525L
  • RGB/S (TTL or 0.3V Analog), RGsB (SOG: 0.3V Analog), 15.625 kHz/50 Hz – 625L, 15.735 kHz/ 60 Hz – 525L
  • HDTV: Component (HDYUV 2/3 Level Sync.) 1080i/60-50Hz, 720p/60-50Hz, 480p/60Hz
  • Computer (RGB HV, RGB/S and RGsB): PC, Mac, Workstation. Automatic Sync. & centering. Resolution from 640×480 to 1600×1200 (up to 110kHz)
  • DVI: Digital computer up to 1600×1200 RB/60Hz and 1920×1080/60Hz (Fpx: 165MHz max)
• Audio Inputs, 4 Stereo Inputs :
  • 1 balanced audio input
  • 3 unbalanced audio inputs
  • Vi = + 18 dBu max
  • Zi = 20 kOhms unbalanced
  • Zi = 40 kOhms balanced
  • Gain : adjustable
• Display Output :
  • 1 x Buffered output (1 on HD15 F connector connector) RGB HV, RGB/S or RGsB selectable (H&V separated, Sync. Composite or SOG), RGB= 0.7Vp/p (75 Ohms)
  • 1 x DVI-D on DVI-I connector
  • Resolution: 4/3 & 5/4 = SVGA, XGA, SXGA+, UXGA, 16/9 & 16/10 = WVGA, WSVGA, WXGA, WSXGA, WSXGA+, 1080p
  • Rate: Internal 50, 60, 72(*) & 75(*) Hz (Follow)
• Audio Output :
  • Stereo output (balanced & unbalanced)
  • Vo = + 18 dBu max – Zo = 300 Ohms (unbalanced)
  • Vo = + 24 dBu max – Zo = 600 Ohms (balanced)
  • G = 0dB nominal, with volume

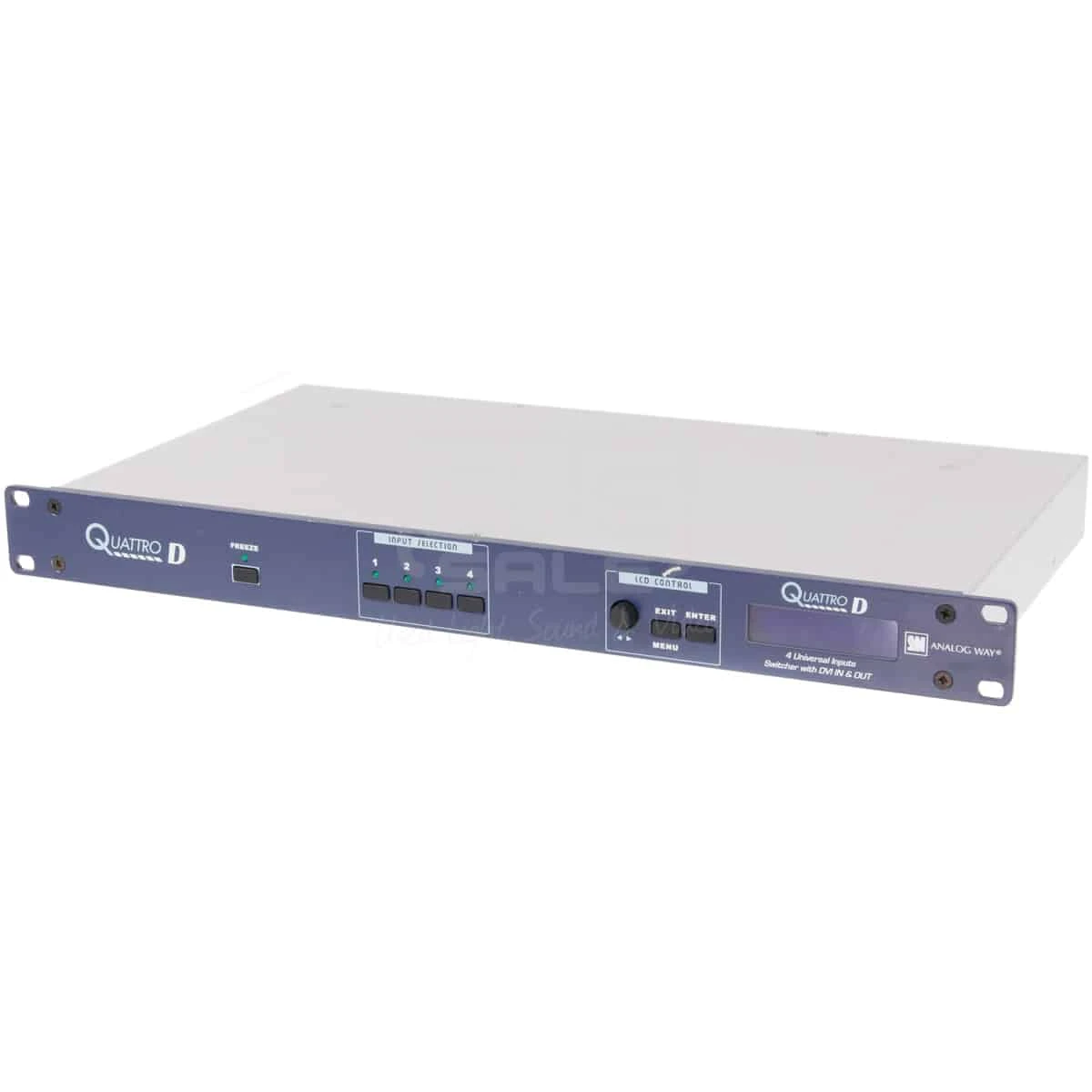

• Front Panel :
  • User controls :
    • Selection of inputs 1 to 4
    • Freeze
    • LCD window & control buttons for menu:
    • Test patterns, proc. image adjust., input format selection, output format display, output format & sync., audio input level and output, volume adjustments, position & size adjustments, front panel control lockout

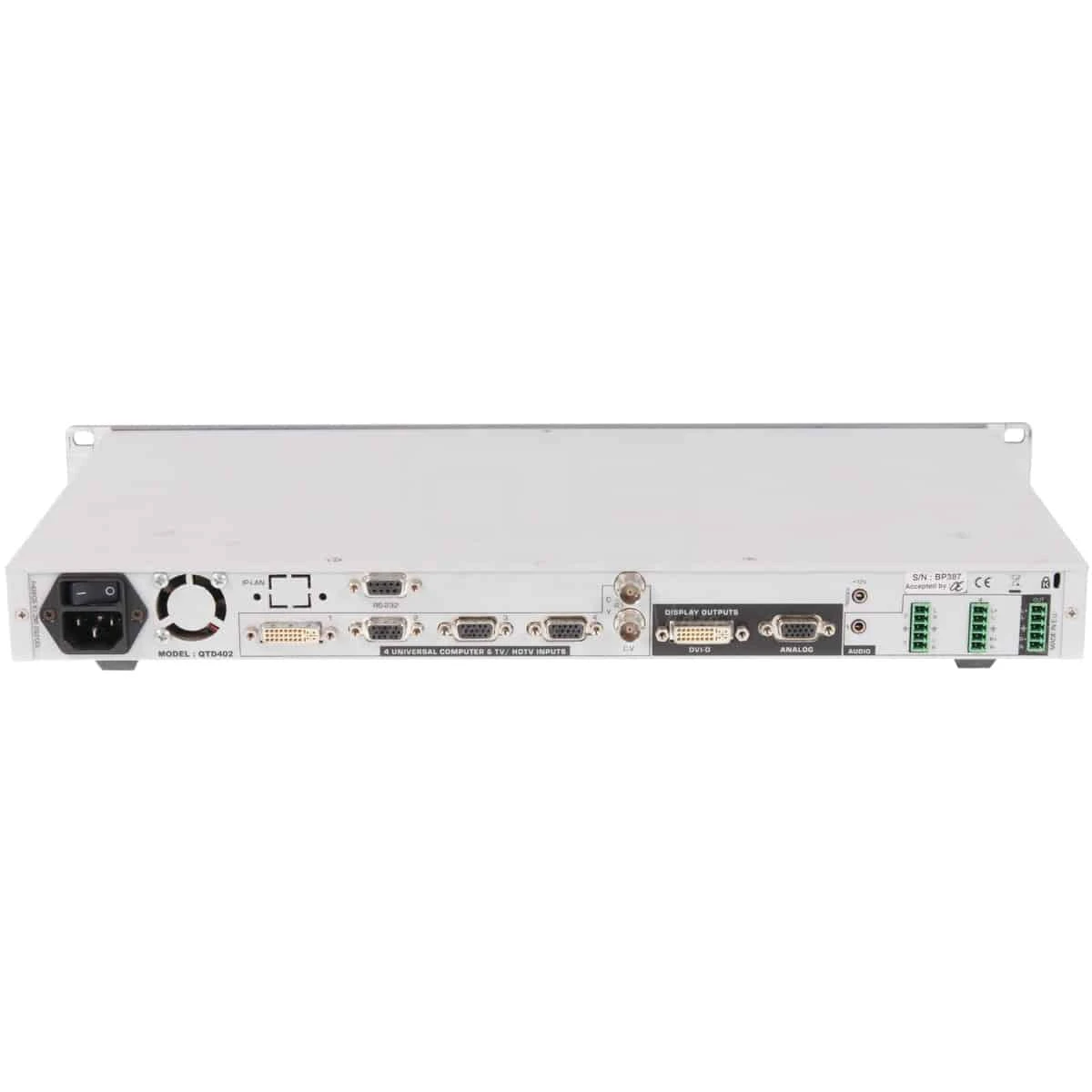

• Rear Panel :
  • Input Connectors :
    • Input #1: DVI-I
    • Inputs #2 and #3: HD 15F
    • Input #4: HD 15F + 2 BNC
    • Audio inputs 2 to 4 and auxiliary: on 5-pin screw terminal
    • Audio inputs 1: on 3.5 jack stereo
  • Output Connectors :
    • Video: DVI-I + HD 15F
    • Audio: 5-pin screw terminal
  • Other :
    • 1 x DB9F with 2 RS232 ports
    • 1 x Jack 3.5: +12Vdc trigger
