Ant BHS 800 – Sub + 2x Top (Active PA Set) (B-Stock)

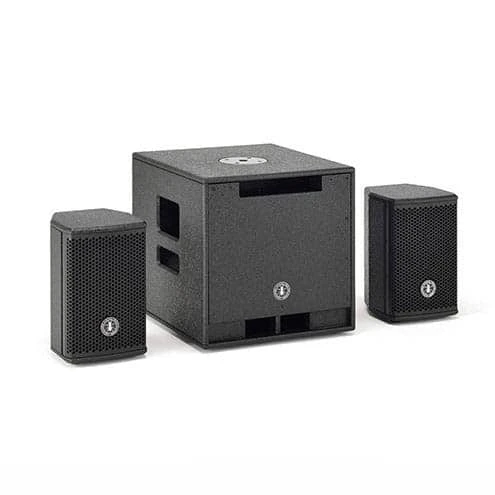

Ant BHS 800 Complete PA System, 1x sub 2x top.

ULTRA COMPACT 2.1 800W SYSTEM
BHS 800 8” active band-pass sub +2 full range 2-way speakers (1×5”LF+1×1”HF)

The bass reflex subwoofer is the heart of the system, equipped with a Class D amplifier delivering power to the sub itself and to the 2 full-range satellites, providing a dynamic and faithful response wherever your performance space is.

The family is comprised of 3 models in order to meet a vaste range of requirements from home application to live stage gigs: 2 SpeakON cables to connect satellites to the sub are included in every model.

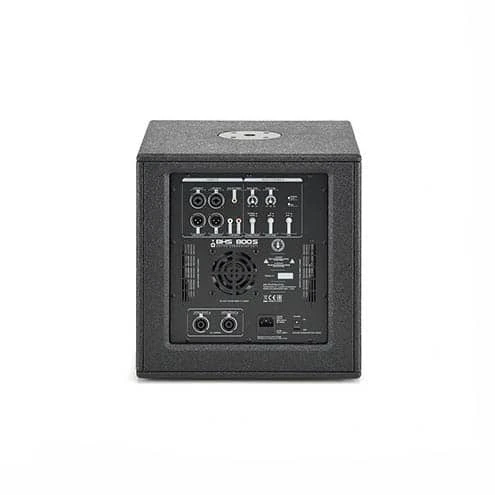

BHS systems have been designed for an intuitive and quick all-user set up, featuring 2x combo (XLR/6.35mm jack) inputs, 1x 3.5 mm mini-jack AUX INPUT to connect external devices and 2 L/R RCA TAPE Inputs. 2x Speakon OUT allow to connect left and right satellites while 2x XLR LINK Outputs allow to connect another speaker or a mixing console.

Controls allow users to modify main level, sub level, select Mono or Stereo Mode and reverse sub phase.

• 2.1 powered pa system
• 1 active sub + 2 full-range satellites
• Powerful 3-way class d amplifier
• Up to 126 db spl (for bhs 1800)
• Dynamic and faithful response
• Ultra-compact
• Wide range of applications
• From home to live stage

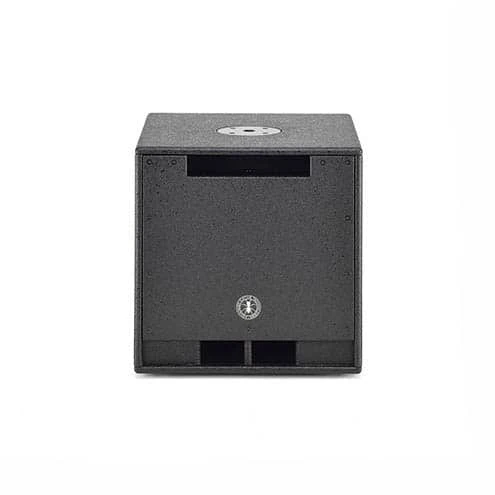

• Subwoofer: Band-Pass cabinet
  8” custom ferrite woofer
  1.5” VC
• Satellite dispersion (H° x V°): 100 x 60
• Frequency response: 60Hz-20kHz
• Max SPL: 120 dB
• Peak Power: 800 W
• Crossover: 24dB/Oct @ 200Hz
• I/O connectors: 2 x COMBO (XLR-F + 2 x jack 6,35mm. 1/4”)
  AUX IN: 1 x mini- jack 3.5mm
  TAPE IN: RCA L/R
  LINE OUTPUT: 2 x XLR-M
  SATELLITE OUT: 2 x SPEAKON Pair button & Led
