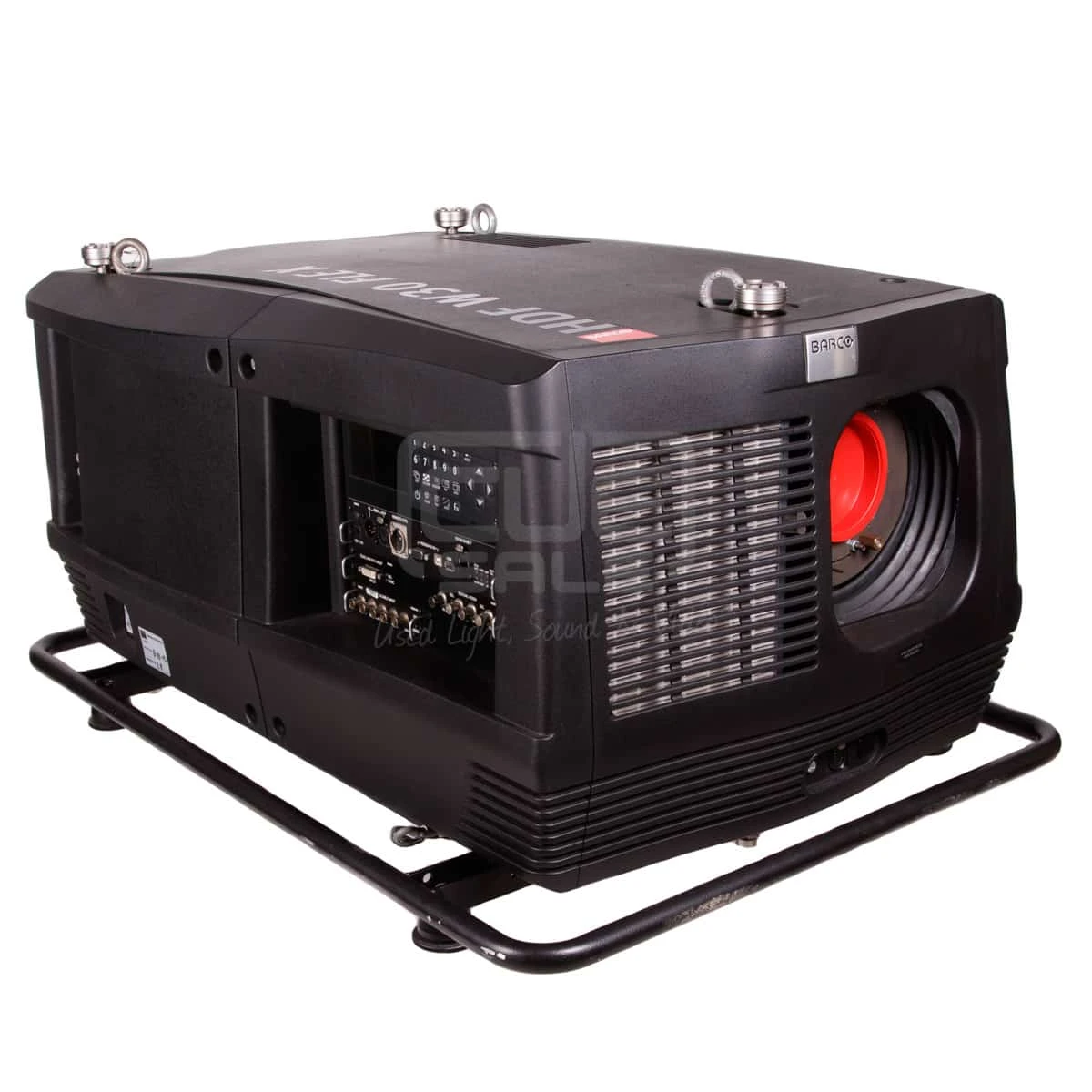

Barco HDF W30 Flex

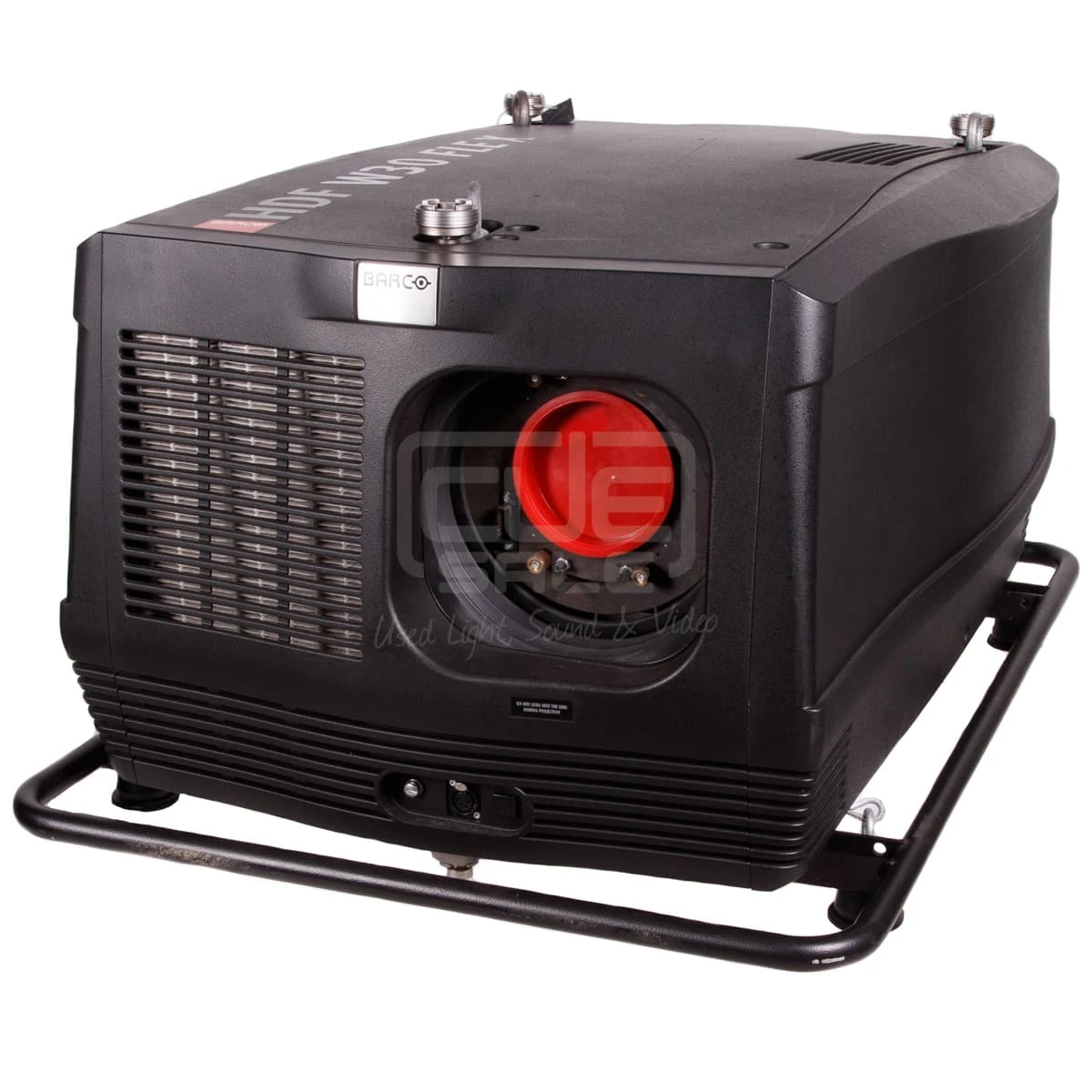

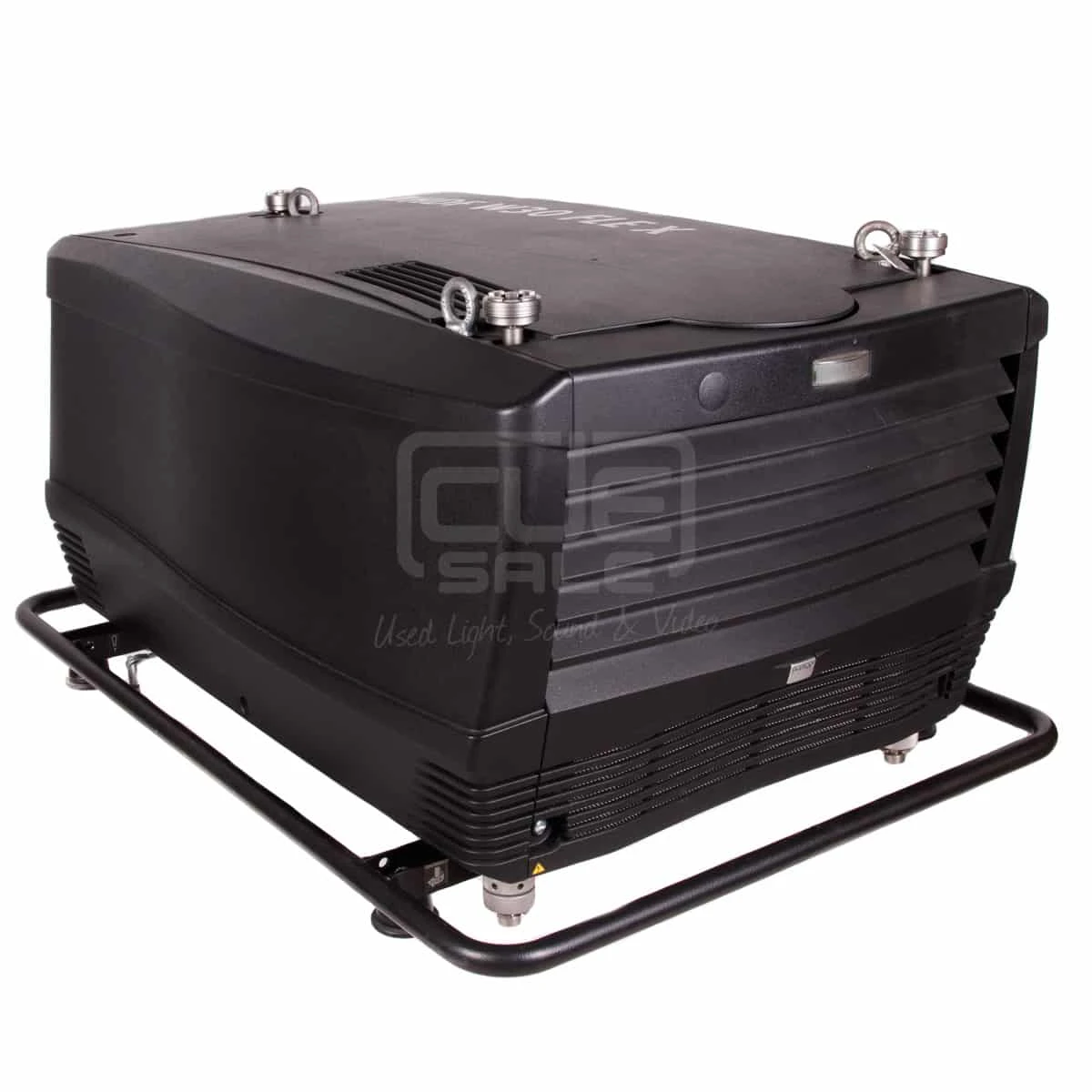

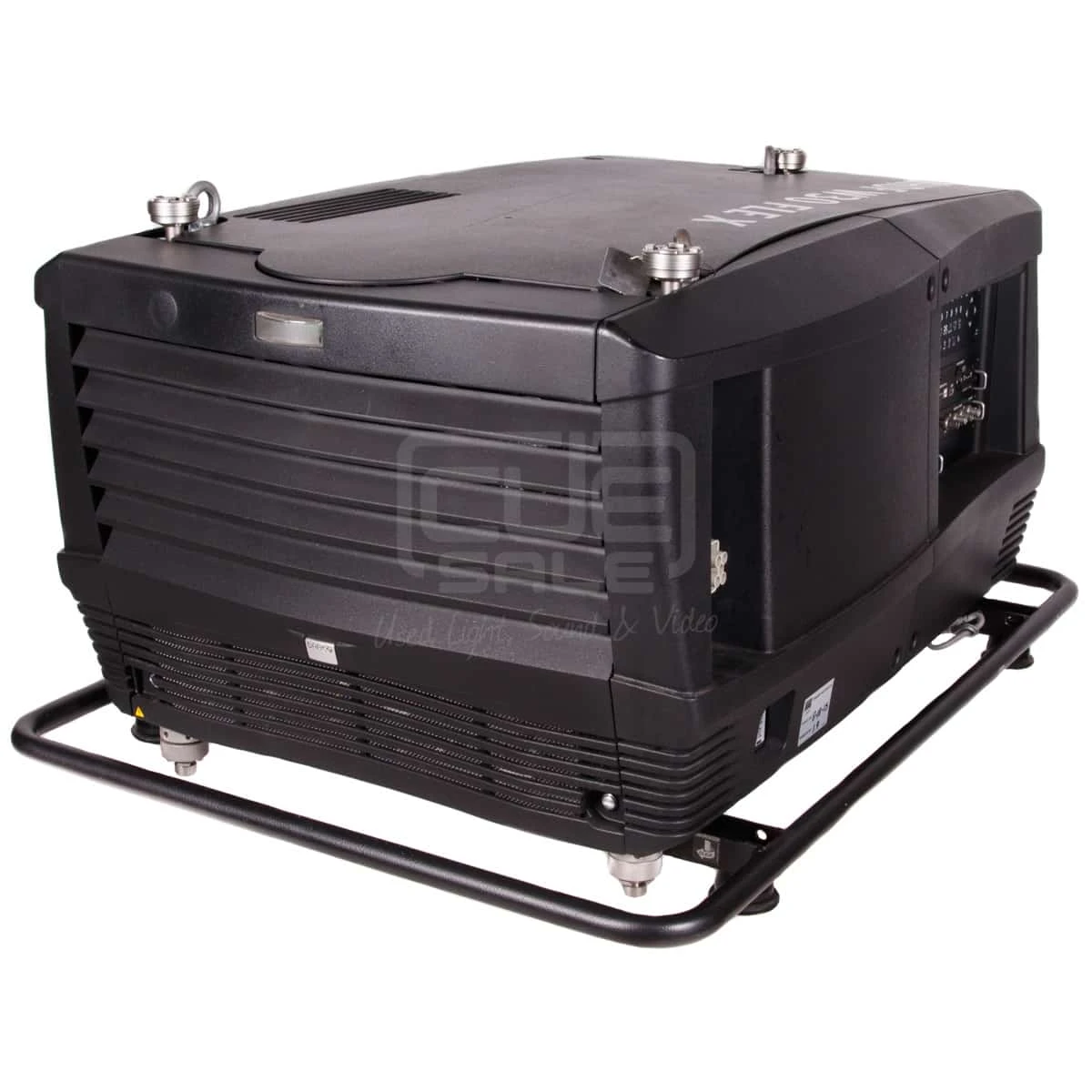

Barco HDF W30 Flex 30,000 lumens, WUXGA, 3-chip DLP projector with standard FLEX brightness

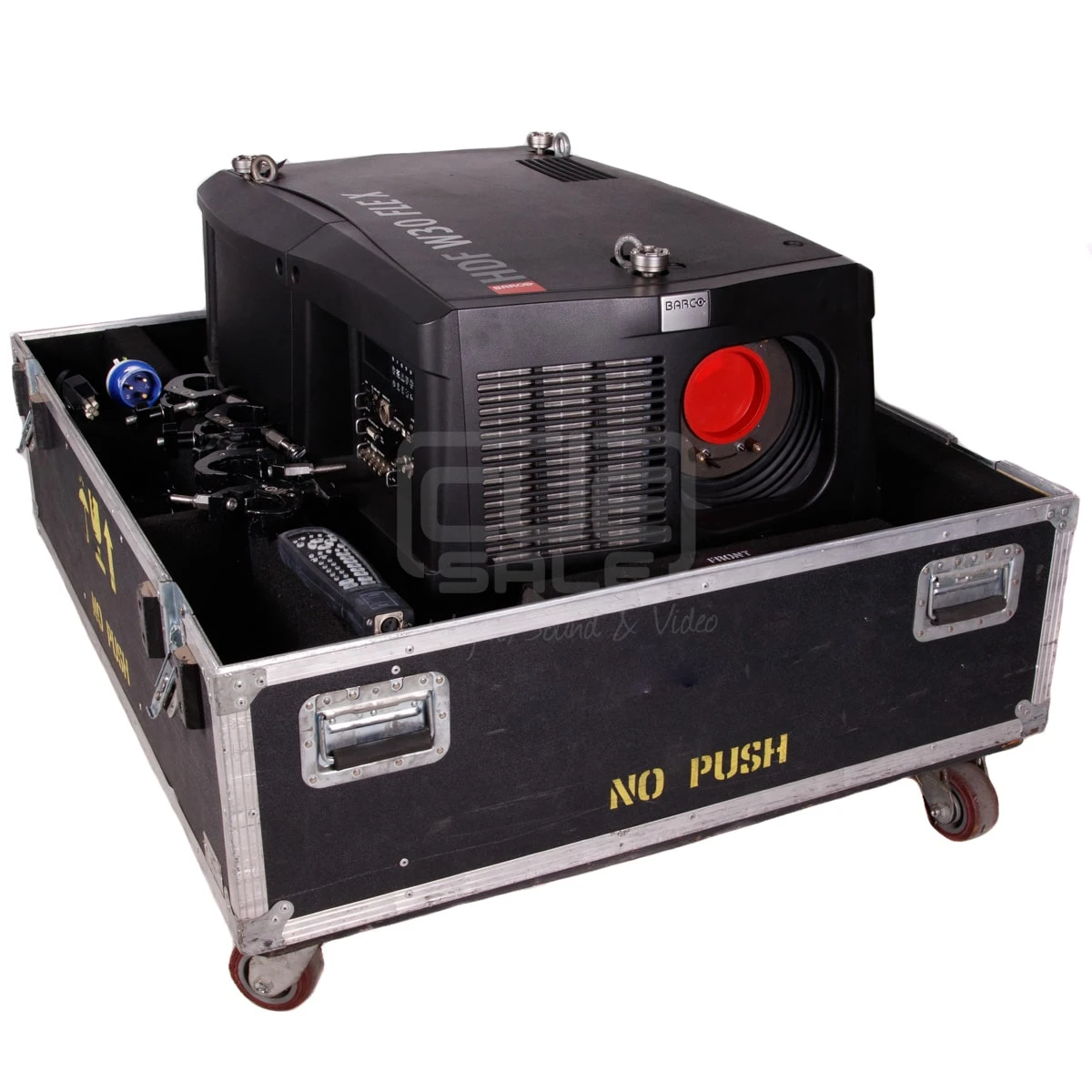

Thanks to its high light output, the HDF-W30 FLEX offers impressive performance for large venues – even when there’s lots of ambient light. Designed for life on the road, the rugged and modular projector is easy to install and service. And when equipped with a rental frame, it can easily be stacked or rigged. Just like the RLM, HDX, HDF and FLM projector families, the HDF-W30 FLEX uses the TLD lens suite.

Stunning images for large screens

Geared with 3-chip DLP technology, single Xenon lamp illumination, and a highcontrast optical engine, the HDF-W30 FLEX makes no compromises on brightness, color accuracy, and stability. Its Xenon lamp color accuracy delivers the best performance required for premium large-screen projection. Plus, the projector’s also equipped with Barco’s cutting-edge ImagePRO technology for remarkable scaling power.

Choose your brightness

The HDF-W30 FLEX’s most remarkable benefit is that it offers FLEX brightness as standard. In this way rental companies have the flexibility to tune the projector’s brightness to a specific show – from 18,000 to 30,000 lumens in incremental steps of 2,000 lumens.

Low total cost of ownership

This projector produces its 30,000 lumens brightness with a single Xenon lamp. Compared to projectors with multiple lamps, managing the HDF-W30 FLEX is a breeze. Moreover, this not only makes it easier to align images during setup but servicing the projector and replacing the lamp also take less time – thus reducing total cost of ownership.

Specifications :

Projector type : WUXGA 3-chip DLP digital projector
Technology : 0.96″ DMD™ x3 sealed DLP core
Resolution : 1,920 x 1,200 -16:10 aspect ratio
Brightness : 30,000 center lumens / 28,000 ANSI lumens*
Contrast ratio : 1,900:1 (standard) / 2,200:1 (high contrast mode)
Brightness uniformity : 90%
ScenergiX : Horizontal and vertical edge blending
Lenses : TLD+ 0.73:1 ; 1.2:1 ; 0.8-1.16 ; 1.16-1.5:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
Optical lens shift : V: -30% to +120% / H: -40% to +40% on zoom lenses (memorized)
Color correction : P7
Lamps 4.0 kW xenon
Lamp lifetime : 600 Hrs
Transport with lamp : Yes
Lamp house, quick replace : Yes
Customer bulb replace : Yes
Optical dowser : Standard
Picture-in-picture : Two sources simultaneously
Orientation : table -ceiling -side (portrait)* -vertical / * lamp door down/bottom
DMX 512 : standard
WARP : Direct adjust OSD + toolset
Image processing : Embedded warp & blend engine
Keystone correction : Yes
Integrated web server : Yes
CLO (constant light output) : Standard

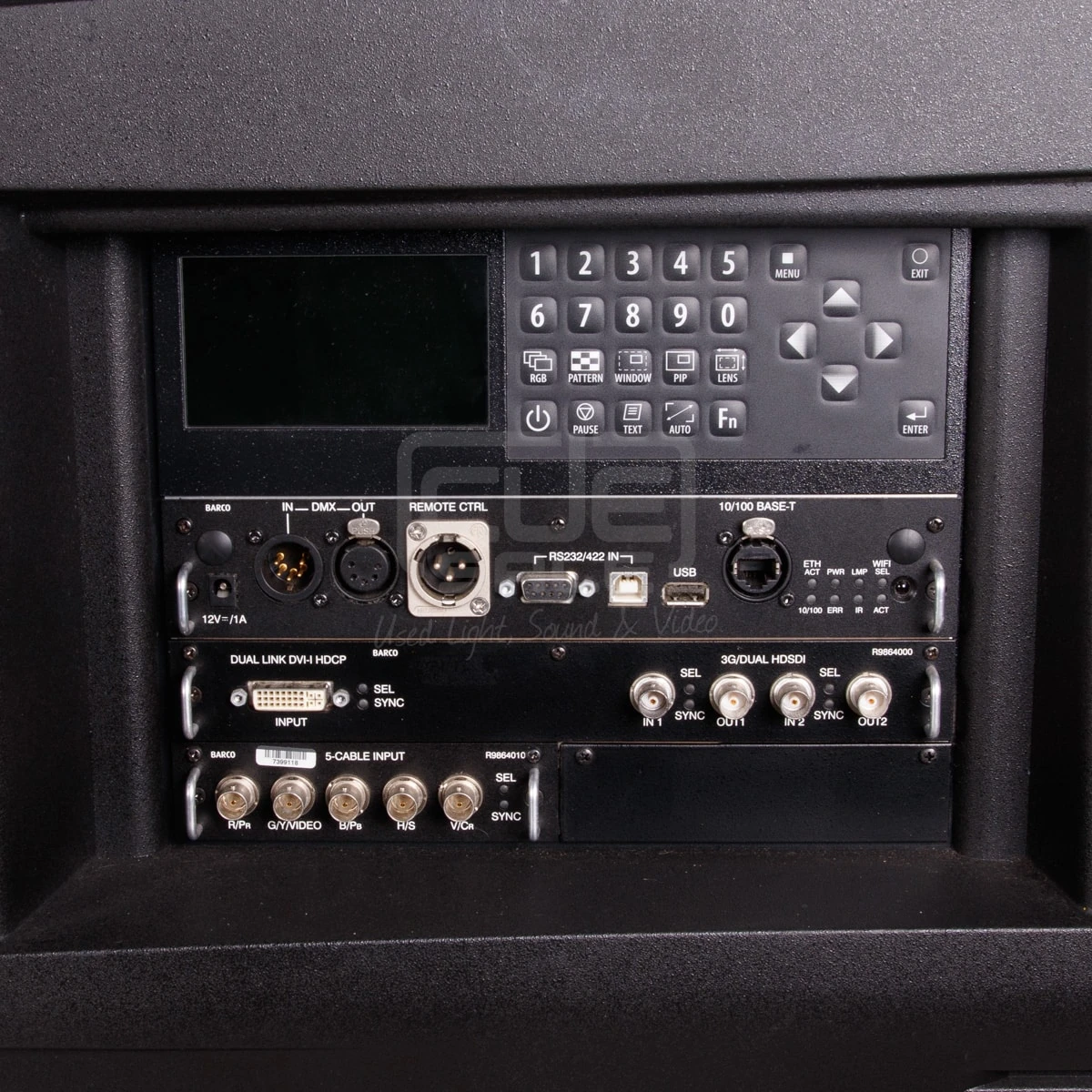

Inputs : DVI-I (HDCP including analog RGB YUV), SDI/HDSDI/Dual HDSDI/3G/BarcoLink
Optional Inputs : 5-BNC RGBHV (RGBS/RGsB, YUV CS/SOY, Composite video, S-Video); DVI-I (HDCP including analog RGB YUV) + BarcoLink/SDI/HDSDI/Dual HDSDI/3G; 3D active  input (HDMI/DisplayPort) feat. SENSIO 3D
Input resolutions : From NTSC up to QXGA (2,048 x 1,536)
Max. pixel clock : 200 MHz
Control : XLR wired + IR, RS232, Wifi, GSM (opt)
Network connection : 10/100 base-T, RJ-45 connection, Wifi (optional)

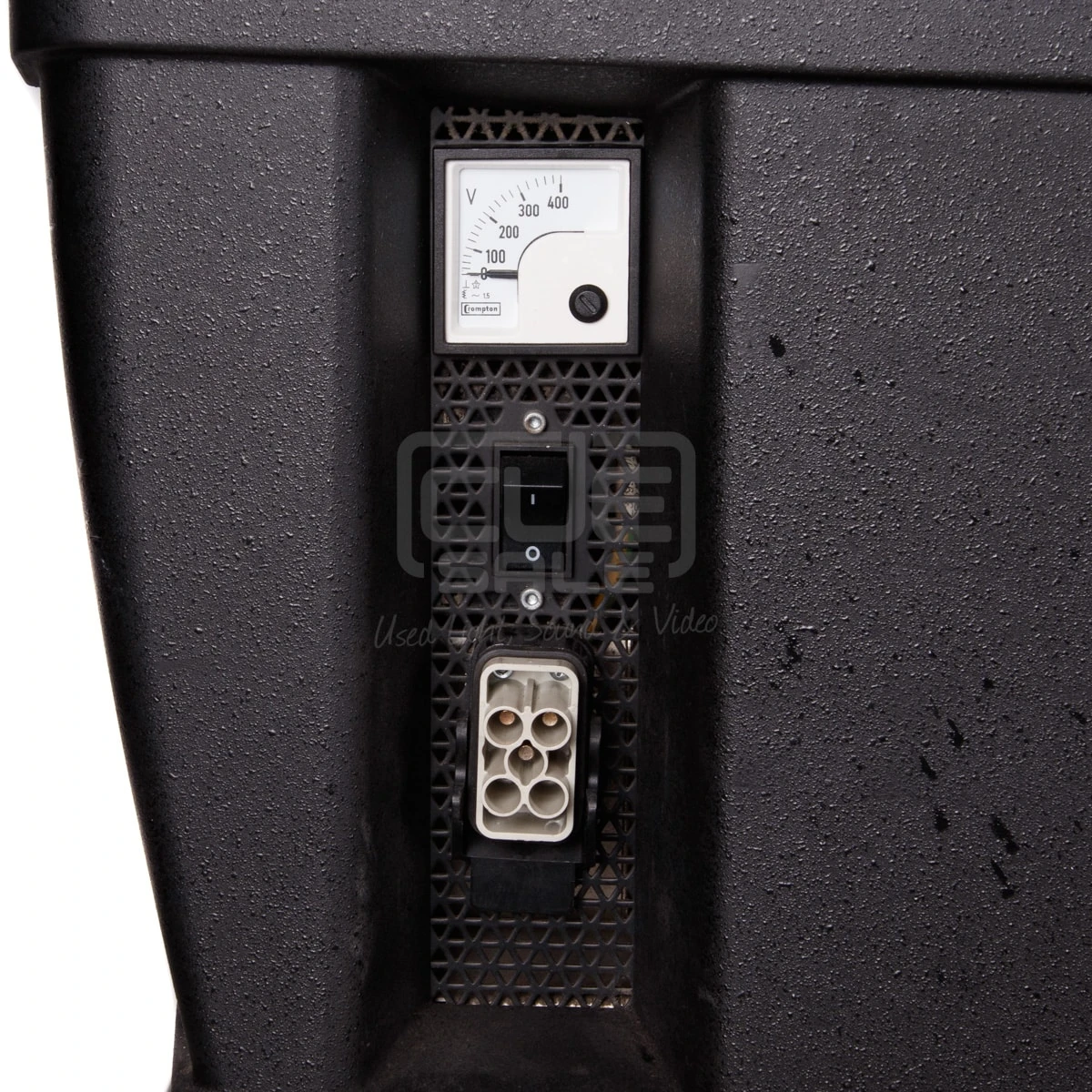

Power requirements : 200-240V / 50-60Hz
Max. power consumption : 4,800W / STBY < 10W
Noise level (typical at 25°C/77°F) : 60dB(A)
Operational ambient temperature : 0-40°C / 32°-104°F
Operational humidity : 0-80% (non condens)
Dissipation BTU : Max. 16,378 BTU/h
Dimensions (WxLxH) : 707 x 1,025 x 548mm / 27.83 x 40.35 x 21.57 inches
Weight 99kg (218.25lbs)
