BlackMagicDesign OpenGear Converter SDI to HDMI

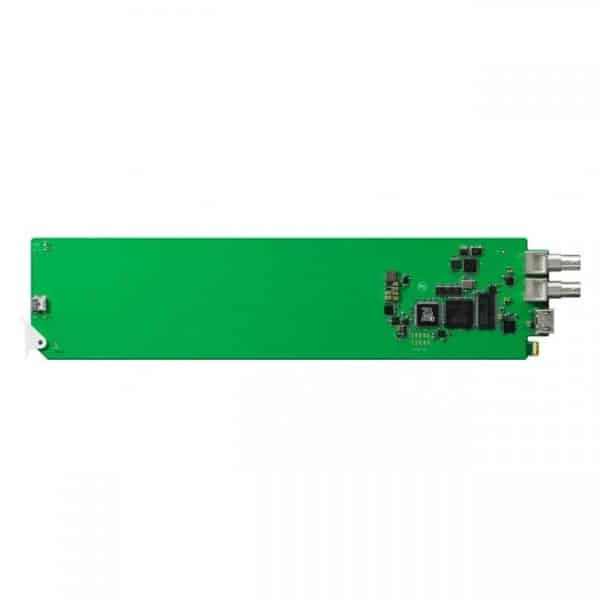

The Blackmagic Design CONVOGBSH Open Gear Mini Converter gives you SDI to HDMI video out with embedded HDMI audio. You gain the ability to use your existing HDMI gear like projectors, TV’s and more as a display for your SDI based equipment!

Please Note: This module is a component created to be part of an OpenGear System and requires an OpenGear chassis/frame.

• Model : CONVOGBSH
• SDI Input : Switchable between SD, HD and 3 Gb/s SDI
• SDI Output : Switchable between SD, HD and 3 Gb/s SDI
• HDMI I/O : HDMI out x1
• Analog Audio : 2 channels of professional balanced analog audio with standard 1/4 inch jack connections
• AES/EBU : 2 channels of professional balanced digital with standard 1/4 inch jack connections
• Format : SDI 625/25, PAL 525/29.97, NTSC 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60,HDMI 625/25,
• PAL 525/29.97 ,NTSC 625/50p, PAL 525/59.94p, NTSC 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60
• Sampling : 4:2:2
