ChamSys MagicQ MQ80 Compact Console

ChamSys MagicQ MQ80 Compact Console

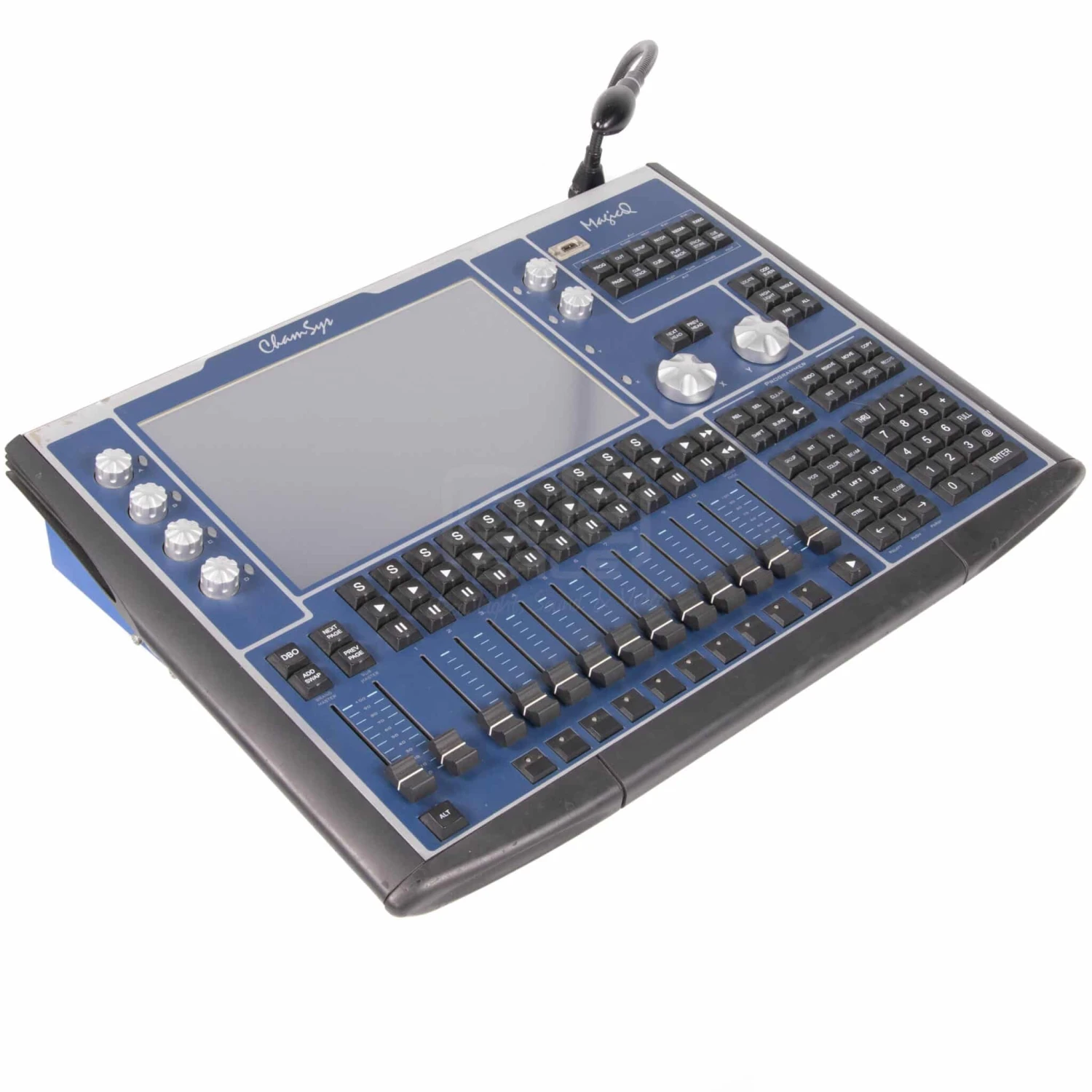

The MagicQ MQ80 is an extremely powerful console in a small size, supporting 48 universes direct from the console and 4 DMX ports supporting RDM, but still fits with in checked luggage restrictions.

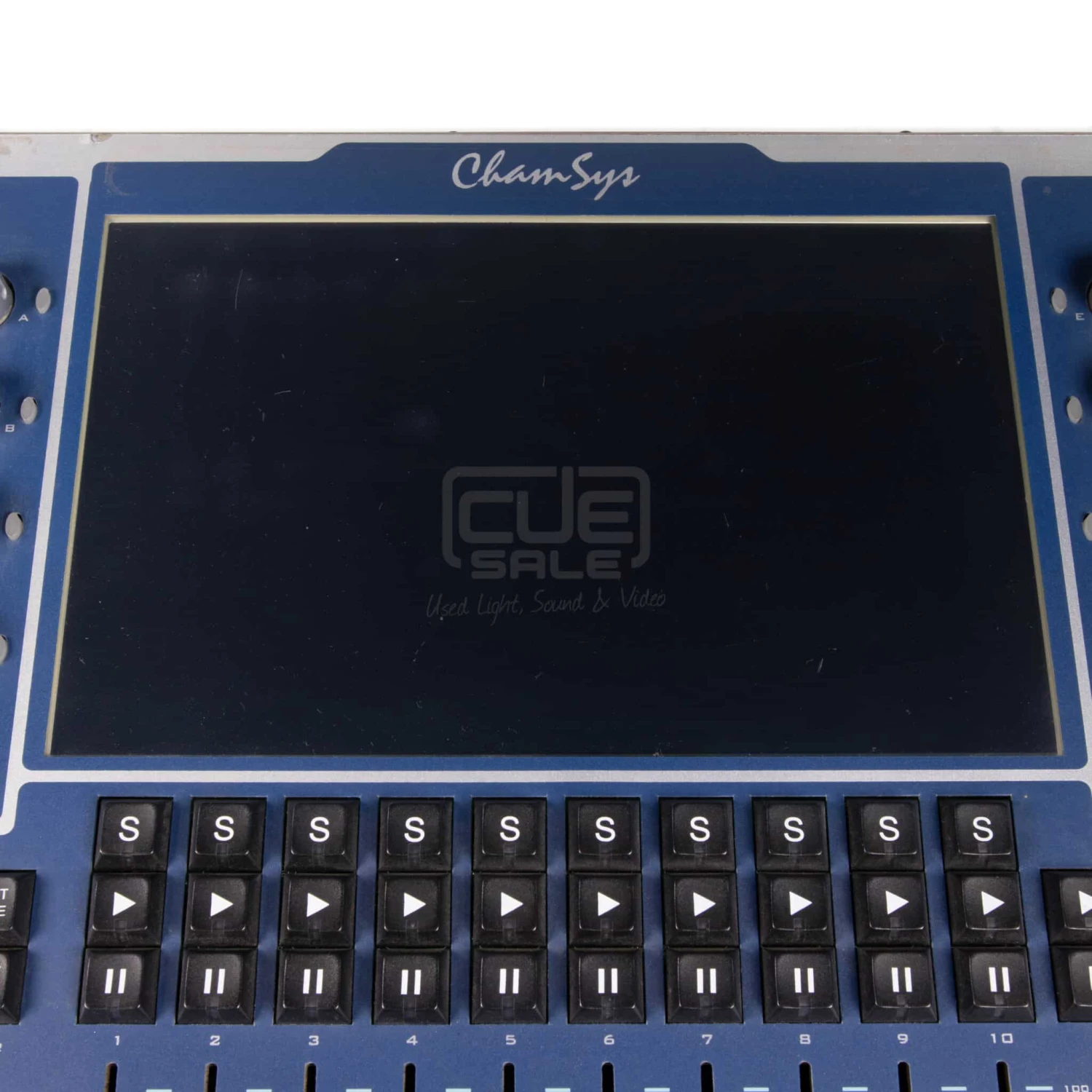

It has a large 12” high resolution display provides easy access to all MagicQ features including the Plot window where fixtures can be selected and focused graphically.

MagicQ MQ80 features the same software found on all MagicQ consoles, and uses the same show file formats, enabling compatibility between all MagicQ products. MagicQ MQ80 can be connected over network to a PC or Mac running the free ChamSys free MagicVis lighting visualisation software, or MagicHD media player software (for output of up to 8 layers of HD media) at no extra cost.

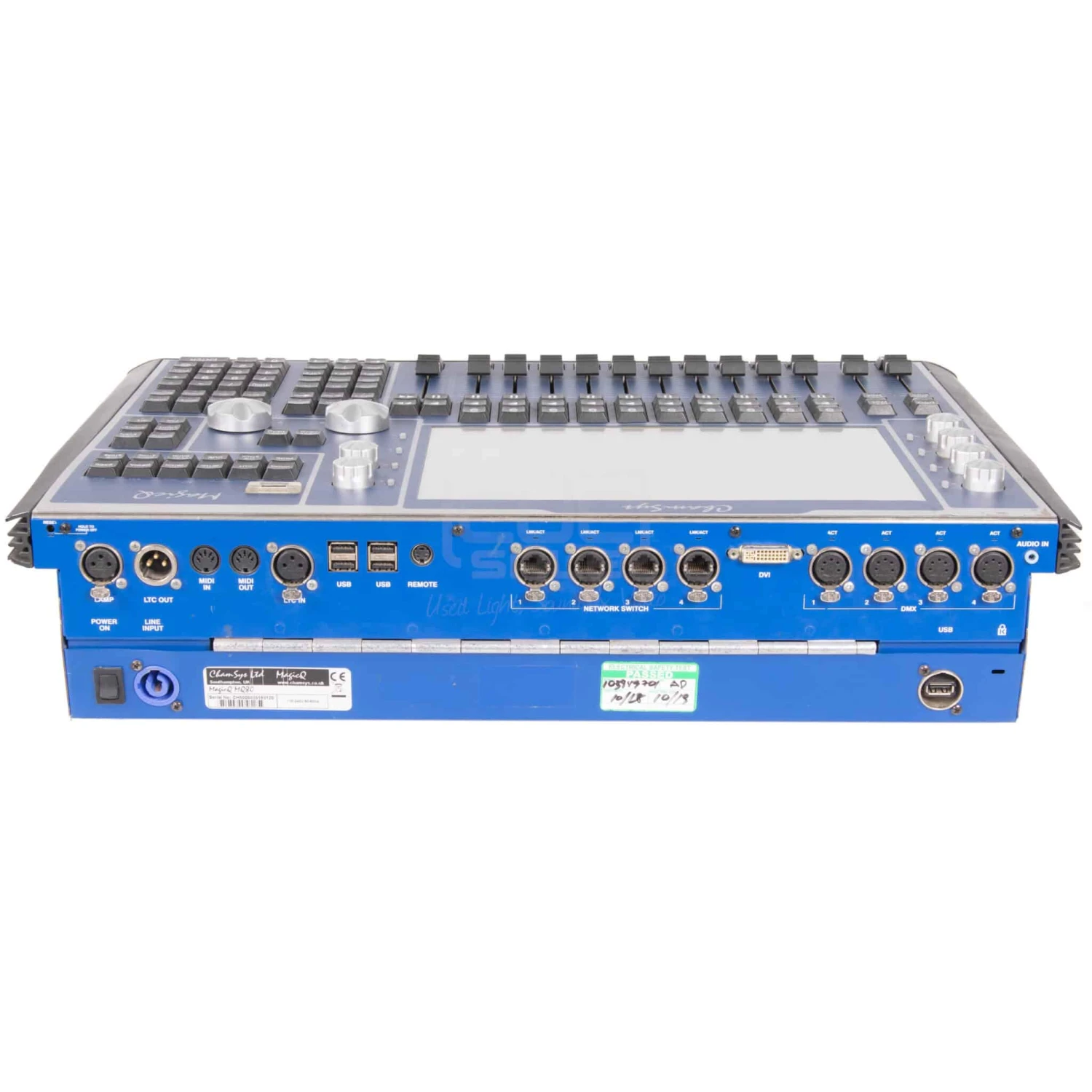

The construction of the MagicQ MQ80 incorporates high reliability components, including durable metal Neutrik locking connectors. The inbuilt 4 port Ethernet switch is protected by the UPS, thus ensuring that both the console and the network switch maintain operation even during a power loss.

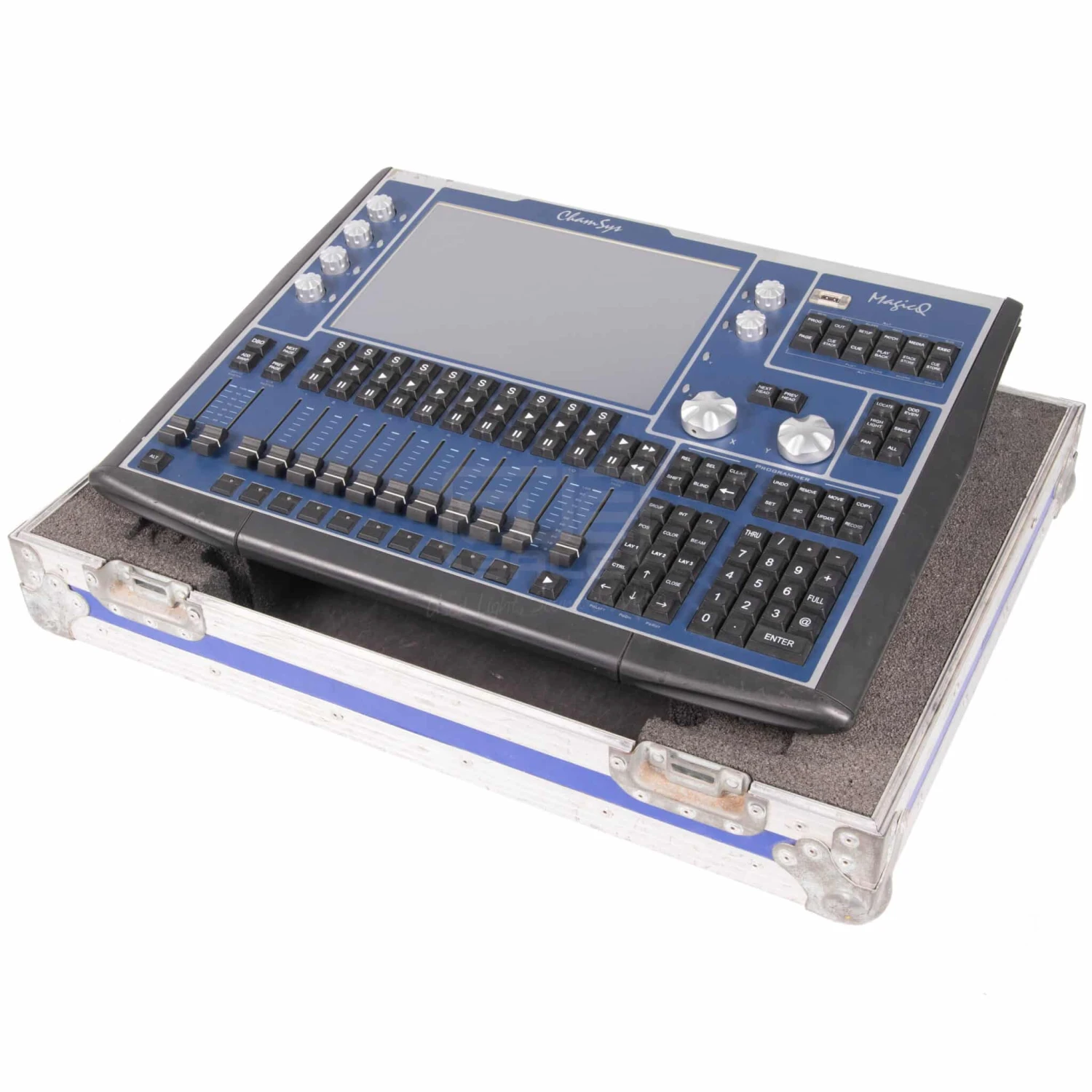

The console features a Kensington security slot for securing the product. Both soft bags and flight cases are available as optional extras.



• 48 universes direct from the console
• Fits within checked luggage
• 10 Playback faders, 200 Pages
• 20 Execute buttons
• UPS inbuilt to the console
• External monitor (full HD, can be touch)
• Includes MIDI, Audio and Timecode input support
• RDM support via direct DMX Ports and Network
