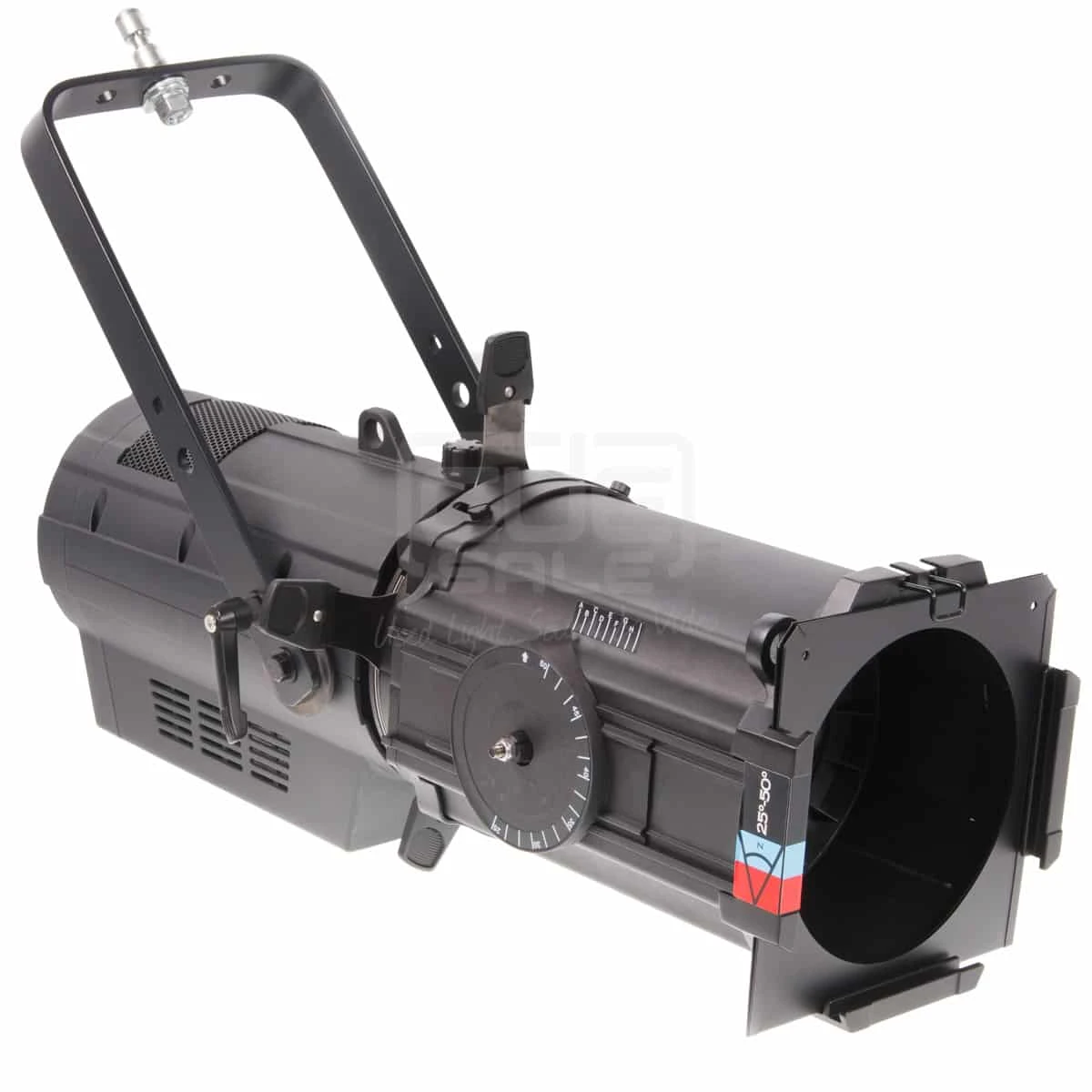

Chauvet Ovation E-910FC 25-50°

Chauvet Ovation E-910FC 25-50°

**wachten met listen – mist zoom knop, wordt besteld **

Demo model.

Ovation E-910FC is a high-performance ERS-style fixture with full RGBA-Lime color mixing and Color Temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full 16-bit dimming (per color and master), selectable PWM, RDM and onboard dimming curve selection. Also accessible is our Virtual Color Wheel which matches popular gel colors.

At a glance :

• Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production
• Ultra smooth 16-bit dimming of master dimmer and individual colors
• Flat, even field of light with superior color mixing
• Virtual Color wheel with color matched to popular gel colors
• Color Temperature Presets from 2800 K to 6500 K with high CRI & CQS
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
• Works perfectly with industry standard lens tubes and accessories

Specifications :

Optical :

• Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy (L70)
• Color Temperature (range): 2800 to 6500 K
• Color Temperature (at full): 6031 K
• CRI (3200 K): 86
• Beam Angle (w/25°–50° lens)(Narrow): 23°
• Beam Angle (w/25°–50° lens)(Wide): 36°
• Field Angle (w/25°–50° lens)(Narrow): 26°
• Field Angle (w/25°–50° lens)(Wide): 50°
• Lumens (w/25°–50° lens)(Narrow): 5,261
• Lumens (w/25°–50° lens)(Wide): 7,263
• Illuminance (w/25°–50° lens)(Narrow): 1,790 lux @ 5 m
• Illuminance (w/25°–50° lens)(Wide): 825 lux @ 5 m
• Barrel Rotation: +/- 27°
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic effects :

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Manual
• Strobe Rate: 0 to 28 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

Connections :

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

Control :

• Protocol(s): DMX, RDM
• DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV
• Modes/Personalities: 8 personalities (1, 3, 5, 7, 10, 12, 13, 16 or HSV)

Electrical :

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
• Power and Current: 220 W, 2.171 A @ 100 V, 60 Hz
• Power and Current: 215 W, 1.786 A @ 120 V, 60 Hz
• Power and Current: 214 W, 1.032 A @ 208 V, 60 Hz
• Power and Current: 216 W, 0.935 A @ 230 V, 50 Hz
• Power and Current: 217 W, 0.904 A @ 240 V, 60 Hz

Certifications / Qualifications :

• CE, MET, FCC
• IP Rating: IP20, dry location
