Christie D12HD-H

Christie D12HD-H 1DLP Dual-lamp Digital Projector

Click for available lenses

From boardrooms to auditoriums, the Christie® H Series is the most versatile 1DLP projector. Combining high​ 1DLP brightness with excellent color reproduction, the Christie H Series is small, light and quiet – perfect for discrete installations.

The Christie H Series can be set-up in any orientation, includes built-in warping and blending, and offers a full suite of lenses to meet even the most challenging projection needs. With superior image quality, flexible connectivity and less than half the noise of competitive products, the Christie H Series makes itself seen, not heard.

The Christie H Series packs a lot of high-performance features into a surprisingly small and sleek package. Plus, the Christie H Series looks great: with an input panel cover plate and a second HDMI input on the bottom of the projector to hide cords. Don’t sacrifice one for the other: experience color integrity and bright, powerful images with Christie H Series projectors.

Specifications :

• Image :
  • Brightness
    – 11,250 lumens (Compliance with ISO 21118 standard)
    – 11,000 Center lumens
    – 10,500 ANSI lumens
  • Contrast
    – 5000:1 (Dynamic Aperture Enabled)
    – 1200:1 Full On/Off
    – 250:1 ANSI
  • Color Wheel
    – 6-segment (RGBCYW)
• Display
  • Type
    – 1-chip 0.95″ DMD
  • Native resolution
    – 1920 x 1080 HD (2,073,600 pixels) 16:9
• Lamp
  • Type
    – 2 x 465W (003-005237-XX)
  • Life
    – 1500 hours typical @ 465W
    – 2000 hours typical @ 370W

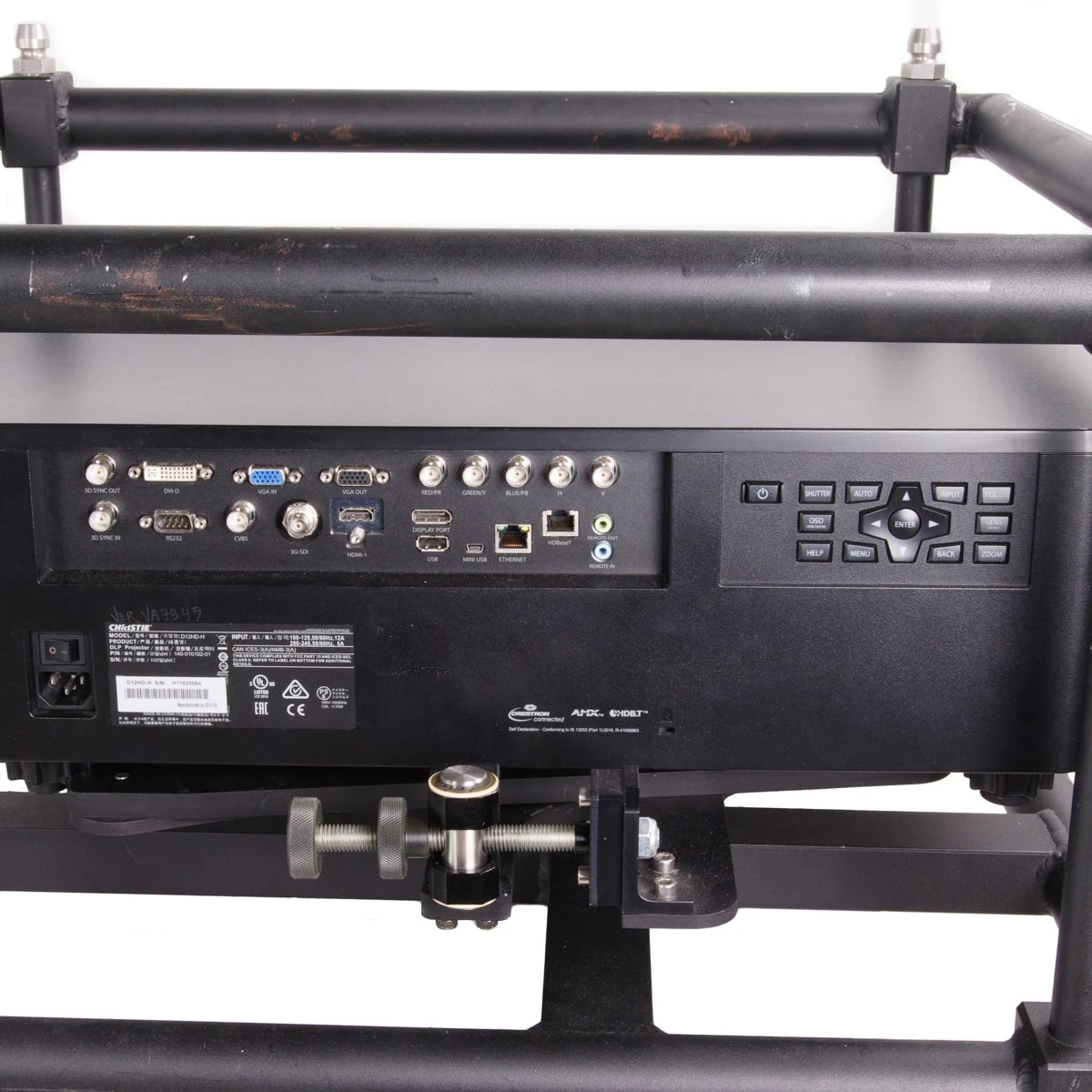

• Input
  • Standard
    – HDMI x 2 (One on side panel, one on bottom of projector, independently selectable)
    – 3GSDI x 1 (BNC)
    – DVI-D x 1 (Digital only)
    – Display Port x 1
    – HD15 x 1
    – RGBHV/Component (5 BNC)
    – Composite Video x 1 (BNC)
    – S-Video x 1 (mini DIN)
    – Component Video (RCA)
    – USB x 1 (Type B mini) – Display over USB
    – USB x 1 (type A) – Image Viewer or WiFi Dongle (optional)
    – HDBaseT (RJ45 x 1)
    – RJ45 x 1 (ChristiePresenter over wired network connection)
  • 3D
    – HDMI, HDBaseT – frame packed, side by side, top/bottom Signals
    – HDTV formats VGA through to WUXGA (1920 x 1200)
    – Horizontal and vertical scaling while maintaining aspect ratio, all inputs
  • Pixel clock
    – 162 MHz
  • Scan rates
    – Horizontal: 15 kHz to 100 kHz
    – Vertical: 24 Hz to 85 Hz
• Output
  • Standard
    – HD15 x 1
  • Control and networking
    – RS232 In
    – Control via HDBaseT
    – Ethernet (10/100) RJ45 with ChristieNET connectivity
    – Built-in backlit keypad
    – Wired remote control (3.5mm stereo) – Loop out available for daisy chaining
