Clay Paky A.leda B-Eye K20 Wash Beam

Clay Paky A.leda B-Eye K20 Wash Beam

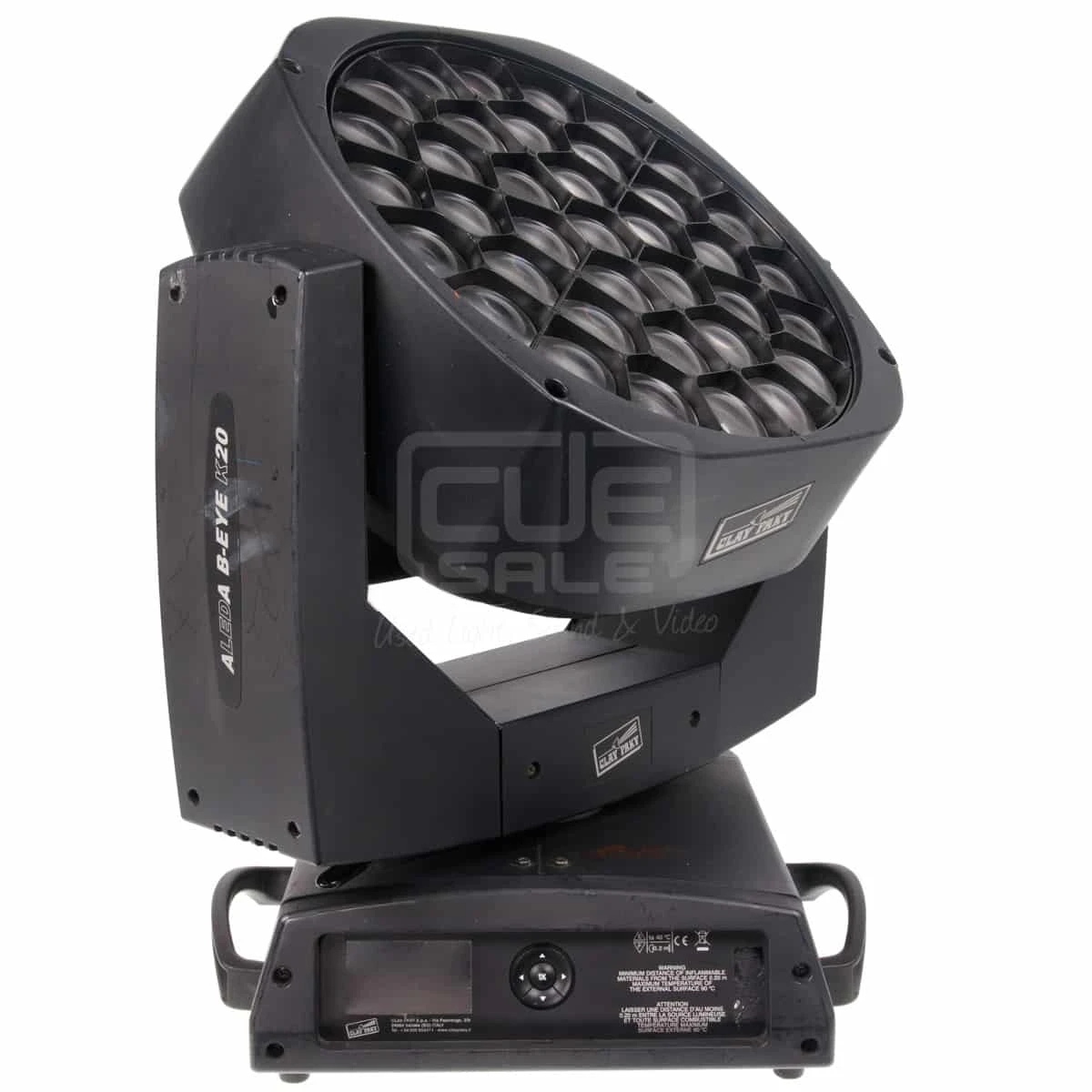

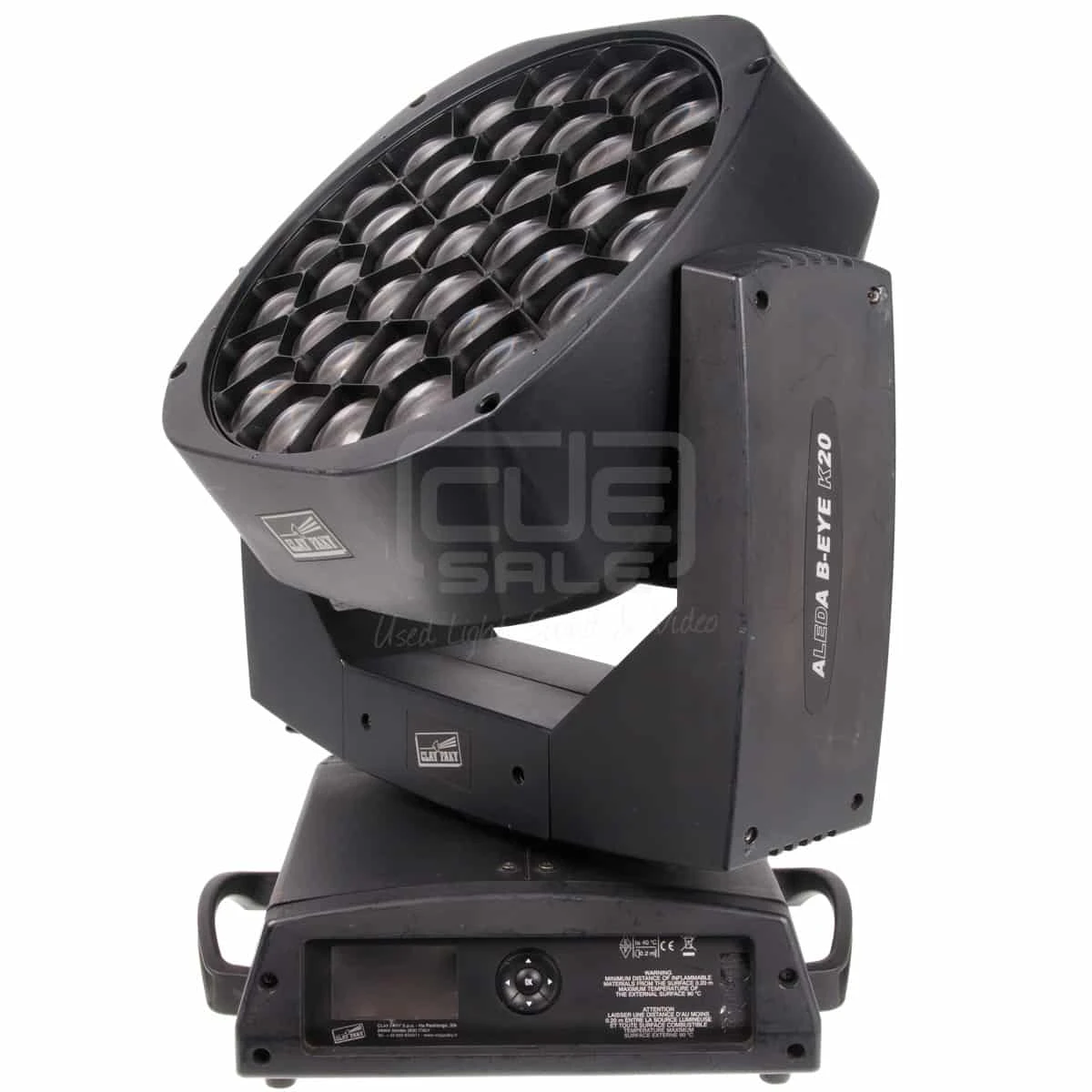

The A.leda B-EYE K20 is a high-performance wash light, a breathtaking beam light, and a creator of completely new spectacular visual effects. Its unparalleled versatility makes it an interesting creative tool for all lighting designers.

The B-EYE is first and foremost an excellent quality wash light. It can wash surfaces with colors anywhere, making the most of its light source. B-EYE is brighter than any LED-wash with the same rated power, thanks to its special optical unit with a truly amazing lumen/watt ratio, designed and built by Claypaky. The zoom ranges from 4° to 60°, suitable for environments with low ceilings (small theatres and TV studios, for example), where large angles are useful, and for shows in arenas or large environments, where a tight zoom is perfect.
When the B-EYE beam is zoomed down to 4°, the “wash” light turns into a “beam” fixture. The B-EYE therefore becomes a surprising mid-air parallel effect light, capable of generating a pulsating beam of micro-rays, which may be controlled individually, each with its colors and shades. All the parameters of each LED can be completely controlled.
Lastly, the B-EYE K20 introduces a new feature: the front lens may be rotated to create many small bright compositions, which may be opened and closed like petals. By adding colors and dynamic graphics, the B-EYE generates never-seen-before graphic light effects

Features :

• Light Source : 37 x 15W RGBW LEDs
• Zoom range : 4°-60° Electronic Zoom Range
• Effects : Three operating modes: wash, beam, FX (Kaleido effects); Rotating Front Lens; 0-100% linear electronic dimmer; Adjustable speed stop/strobe effect; dedicated CTC

Specifications :

Light source type :

• 37 Osram Ostar RGBW LEDs
• LED Nominal Wattage: 15W
• LED Average Life: 50,000 h

Optics :

• 4°-60° Electronic Zoom Range
• High efficiency optical system

Input power :

• 750 VA @230Vac – 50Hz

Control and connections :

• Control channels: 21/35/111/148
• Basic Engine (Standard and Shape Mode).
• Pixel Engine (RGB and RGBW Mode).
• DMX protocol signal: USITT DMX 512.
• Art-Net / RDM / sACN
• Display: Graphic LCD backlit b/w Display.
• Pan/Tilt Resolution: 16 bit.
• Dimmer Resolution: 16 bit.
• Movement control: vectorial.

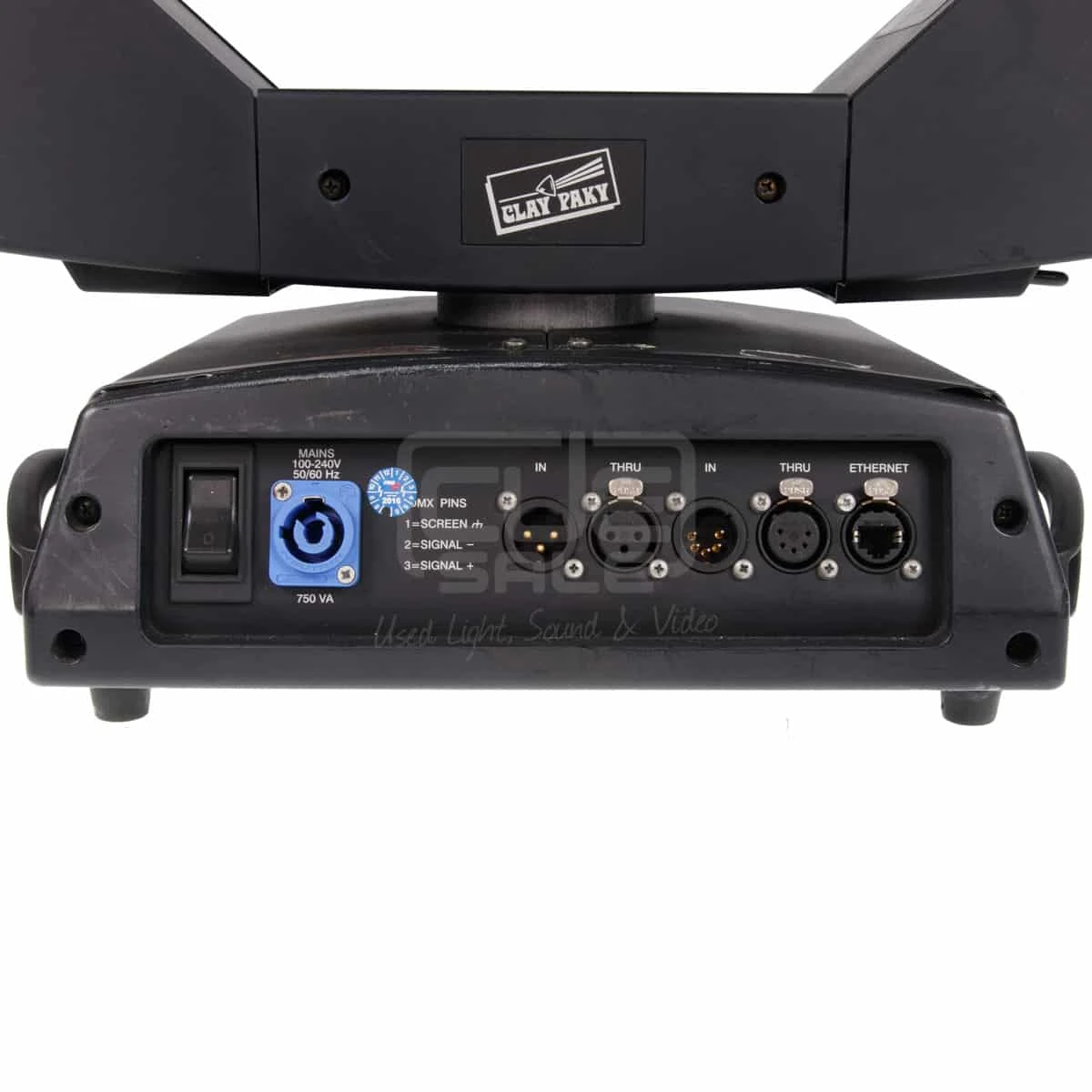

• DMX signal connection: 3 and 5 pole XLR input and output.
• Software upload through DMX input

Effects section :

• Three operating modes: wash, beam, FX (Kaleido effects)
• Bi-directional Rotating Front Lens
• Digital Wash-Beam Framing effect
• Beam edge softening control (in Wash mode)
• Pixel Patterning Macros with enhanced control
• 0-100% linear electronic dimmer
• Adjustable speed stop/strobe effect, with instantaneous blackout
• Dedicated channel for color temperature setting
• White CT Emulation 2500-8000K
• RGBW auto-tuning to lamp CT Emulation
• Tungsten Lamp Emulation
• Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
• Movement:
  • PAN = 540°
  • TILT = 210°

Hardware and software :

• Long-life auto-charging buffer battery
• Preset color and graphic effect macros
• Function reset controllable from a central control unit
• Menu-driven internal self-test function
• Ethernet ready with RJ45 socket
• Display: backlit black-and-white graphic LCD display
• Electronic check-up of every single parameter with error alarm
• DMX level monitoring on each channel
• Automatic internal data transmission error diagnostics
• Firmware upgrade even when the unit is not connected to the power supply
  Firmware transfer from one light to another

Housing :

• Aluminium structure with die-cast plastic cover
• Two side handles for transportation
• PAN lock for transport and maintenance
