D&B Audio Ci60 Speaker

D&B Ci60 Full range 2-way loudspeaker, optional bracket. Select variation

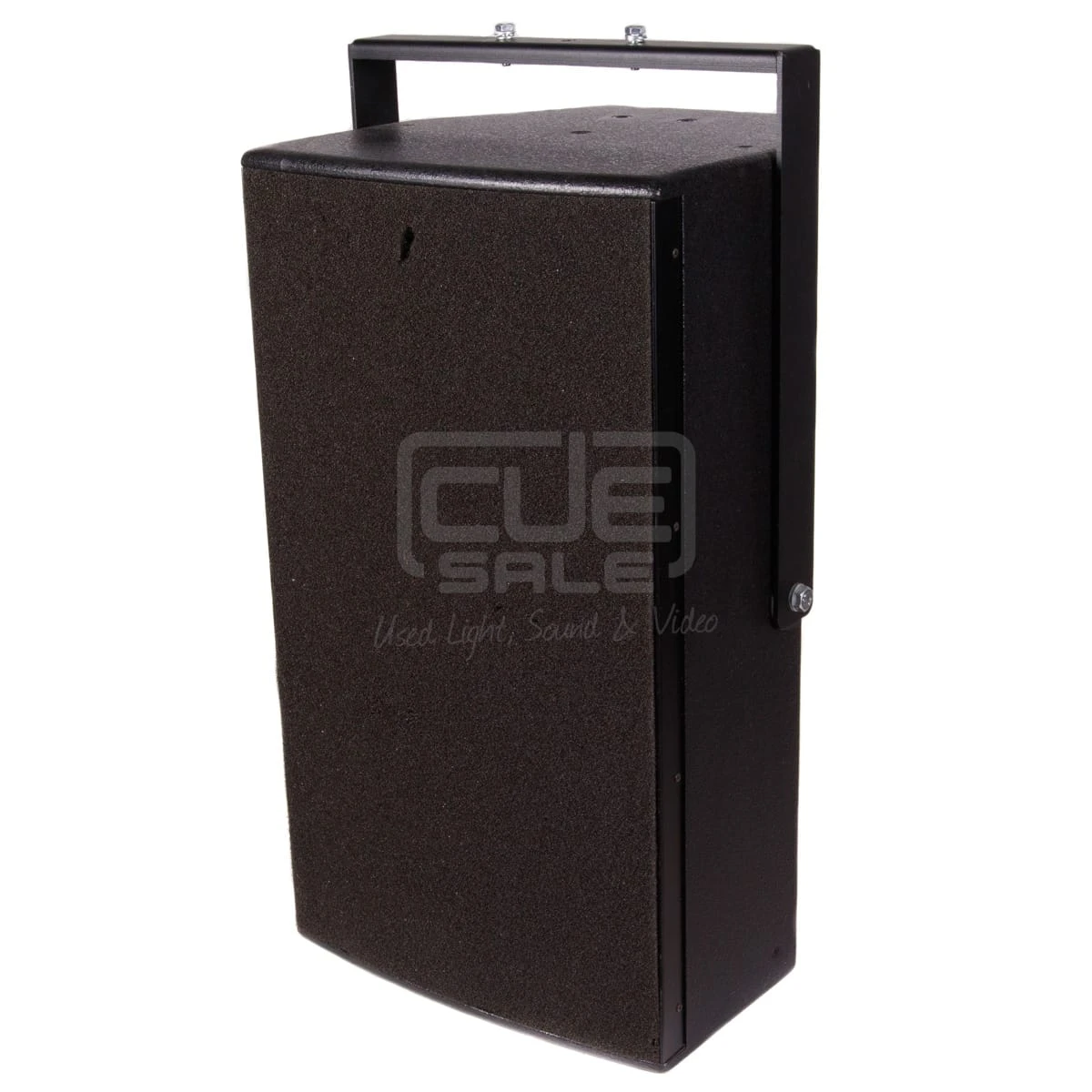

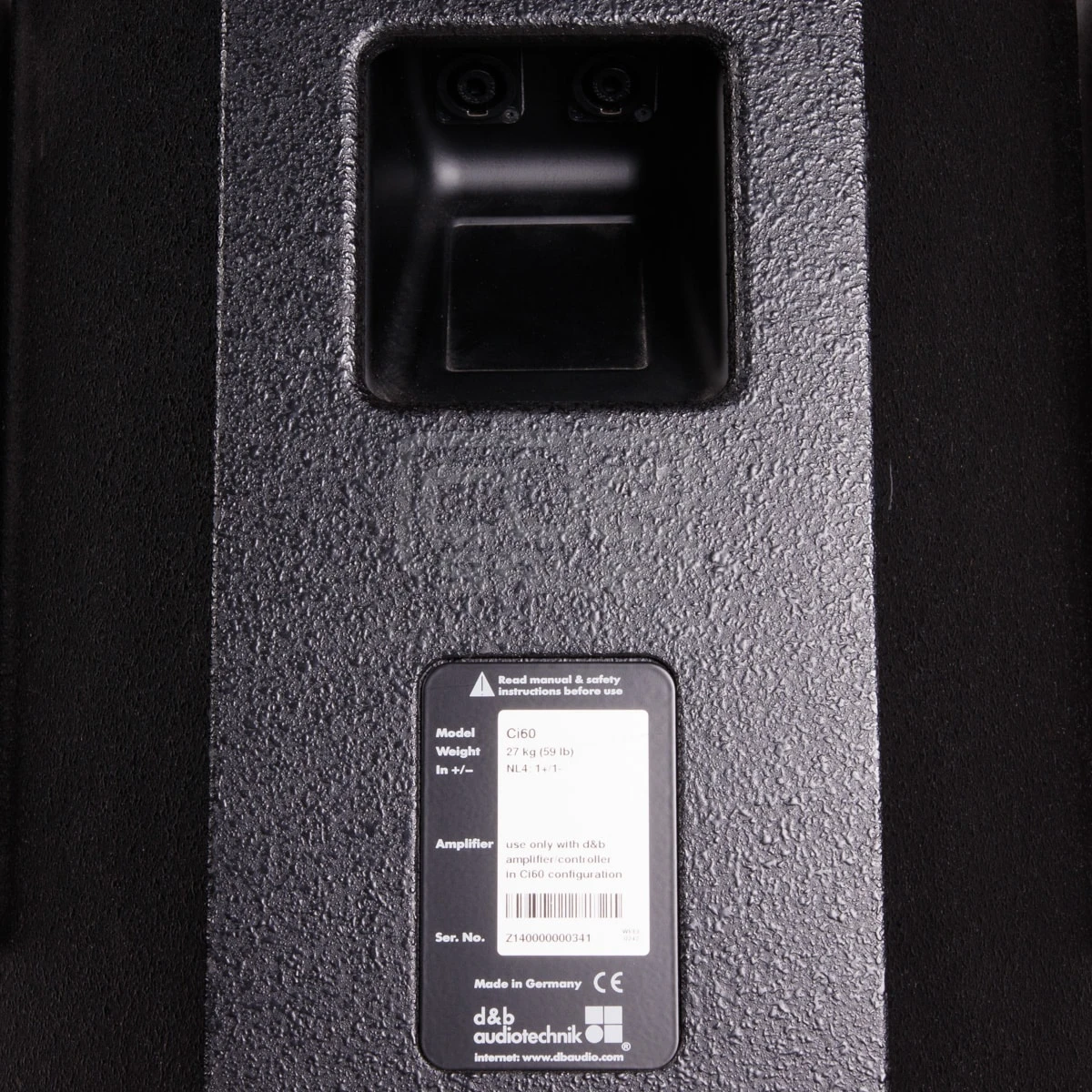

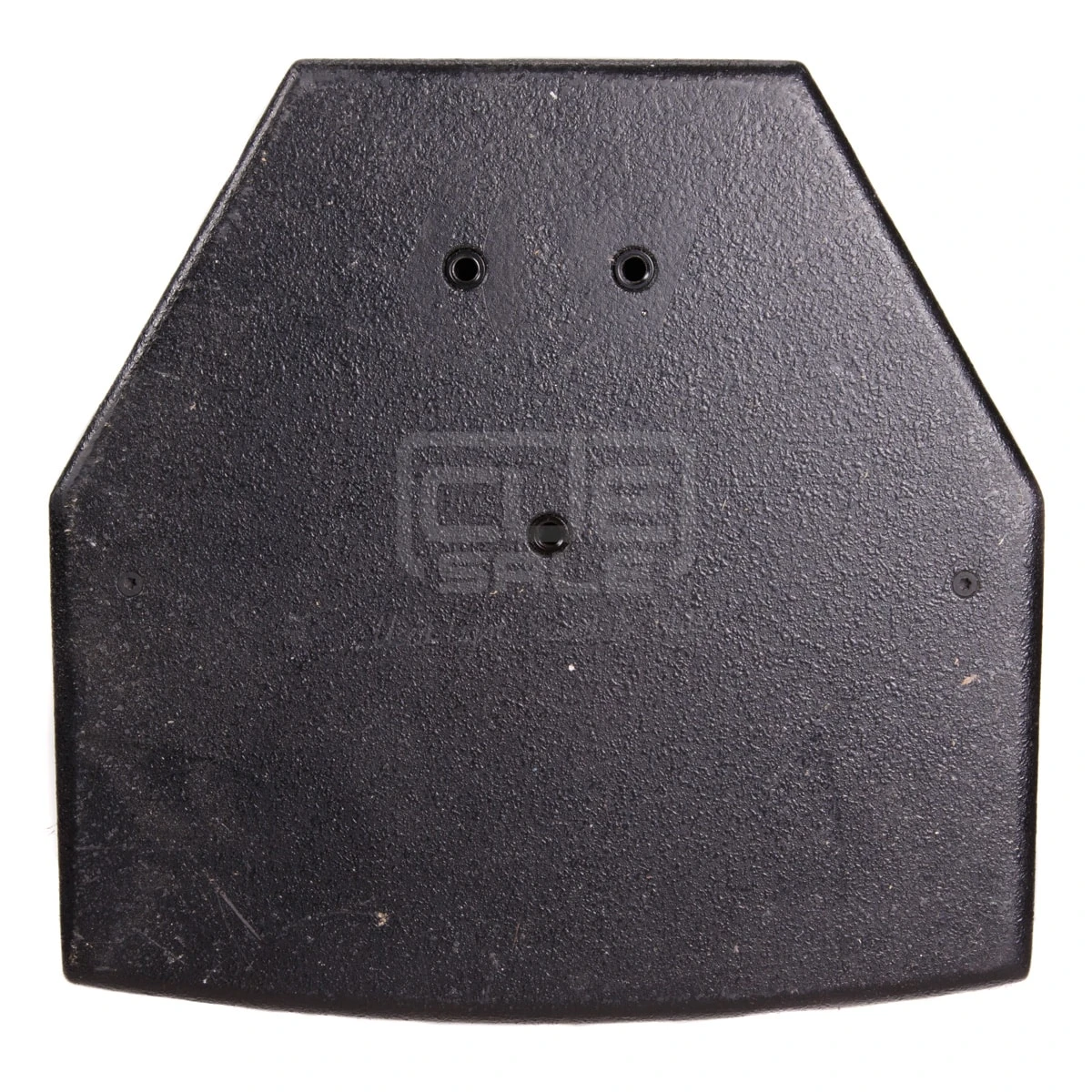

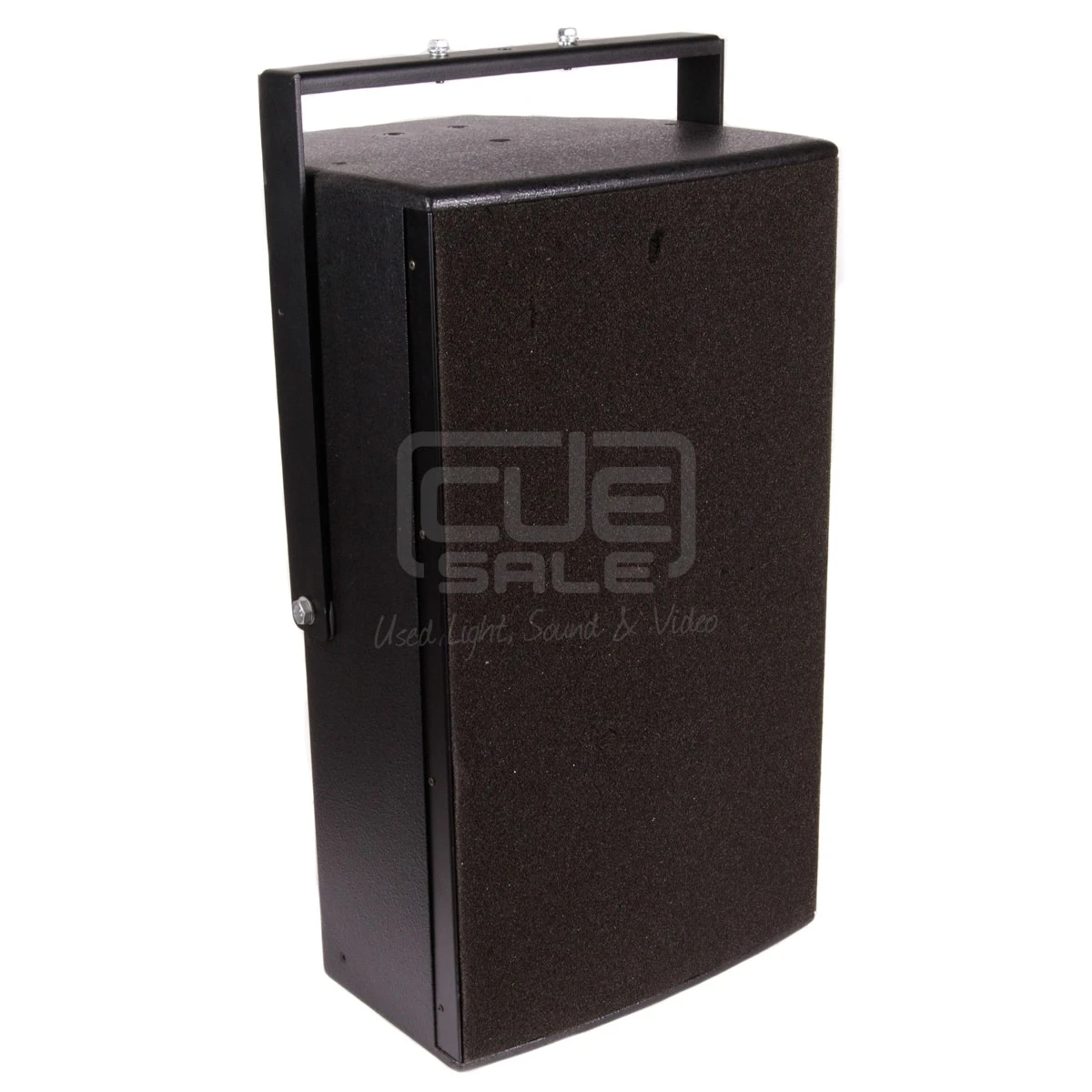

The Ci60 is a full range, 2-way bass-reflex cabinet designed specifically for permanent installation. In the standard, upright operating position the CD horn is positioned below the LF driver so the HF dispersion is less likely to be influenced by reflections from walls, ceilings or other equipment mounted nearby. This arrangement improves the headroom before feedback when systems are flown above the stage. The cabinet is designed to allow the horn flares to be rotated through 90°, allowing greater flexibility in placement for a given dispersion. The cabinet is constructed from marine plywood and has an impact resistant paint finish. The front is protected by a rigid metal grill fitted with an acoustically transparent foam. M10 threaded inserts are provided on the top and bottom, and on the sides of the cabinet, for mounting rigging accessories. A recess at the top of the rear panel, which also serves as a handle, is fitted with an NL4 input connector.

• Components 12″/1.4″
• Dispersion 65° x 40°
• SPLmax 136 dB
