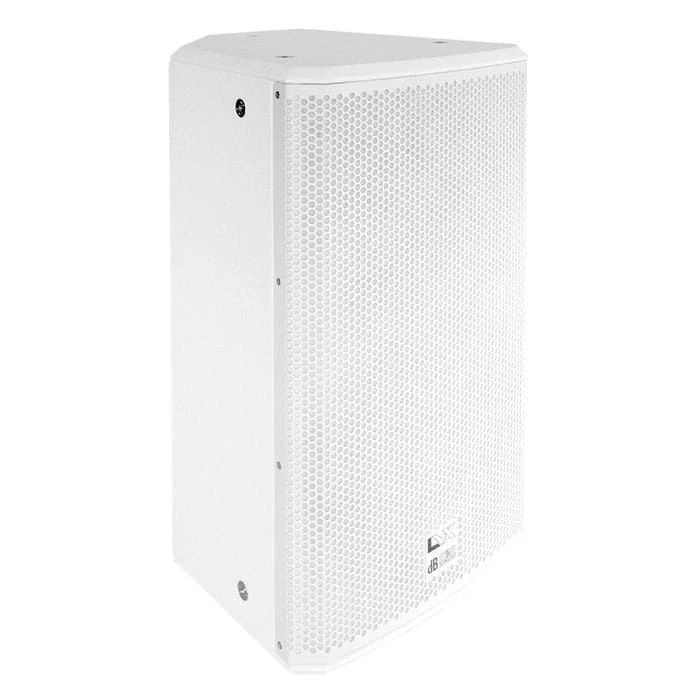

DB Technologies LVX 10 Active Speaker White (B-Stock)

dB Technologies LVX 10 Active full range speaker: WHITE Version

LVX active loudspeakers series is the answer to all those fixed installations and live music requirements where sound reinforcement systems must be lightweight, stylish, portable, powerful. As a result of the experience in touring gear designing, the new LVX series offers smart solutions with a special attention to the needs of fixed and portable installations.

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance. The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45° The digital amplifiers (DIGIPRO® series) are totally silent due to the low thermal dissipation and controls audio crossover, frequency response, and acoustic alignment and 2 different preset EQ.

The enclosure is made of robust 12mm plywood with a look very elegant and refined.

LVX 10 provided with a single top handle to ease transport. A D36mm pole mount cup on the bottom allows all LVX speakers to be placed on poles or tripods

Two types of wall-mounting brackets are available: one for vertical installation, especially studied for live applications or truss mounting, with variable pan-tilt options (a pole mount cup is included as a stand adapter). The second for horizontal permanent installations, where you can easily change tilt position.

All models and related accessories are available in black or withe finshes.

The white installation version of all the four models comes without the pole mount cup and the handles, providing a very transparent look.

Technical Data
Speaker Type: 2-Way Active Speaker

Acoustical data
Frequency Response [-10dB]: 60 – 20.000 Hz
Frequency Response [-6dB]: 70 – 19.000 Hz
Max SPL: 125 dB
HF: 1″
Directivity: 90 x 70°
Horn: Rotatable CD Horn
LF: 10″

Amplifier
Amp Technology: Digipro® G2
Amp Class: Class-D
Peak Power: 800 W
PRG Power: 400 W

Processor
Controller: DSP 24bit/48kHz
System Presets: Flat, Processed
Limiter: Dual Active Peak, RMS, Thermal
Crossover Frequency LF-HF: 2050 Hz
Slope LF-HF: 24 dB/Octave
