DB Technologies VIO C15 Line-Source System (B-Stock)

dB Technologies VIO C15 Line-Source System (B-Stock)

Upgrading arrayable loudspeaker concept to a brand-new level, dBTechnologies proudly presents VIO C, a complete series of 2-way active line-source speakers for the widest range of venues and applications, from installed PA systems to sound reinforcement for touring.

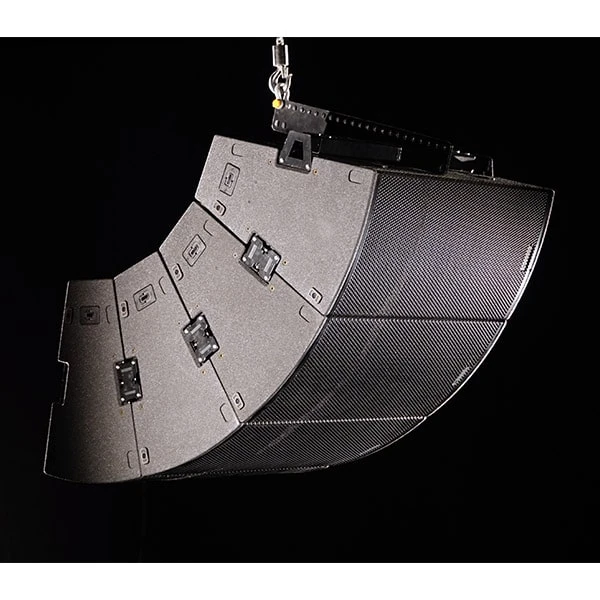

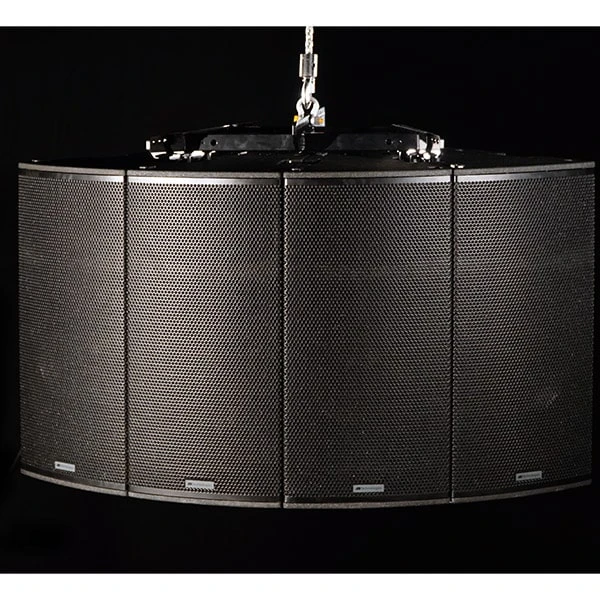

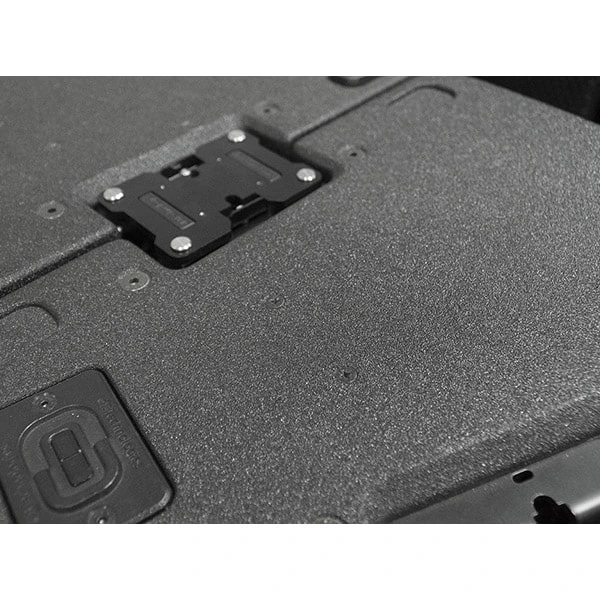

Designed to create horizontal or vertical line-source arrays and featuring a simple yet rapid rigging system, VIO C offers the most flexible coverage options as well as the powerful and pure acoustic performance that distinguishes all VIO cabinets. The series encompasses 3 enclosures housing premium neodymium components: VIO C12 (1×12”, 3.5” v.c. LF and 1×1.4”exit, 3” v.c. HF), VIO C15 (1×15”, 3.5” v.c. LF and 1×1.4” exit, 3” v.c. HF) and VIO C212 (2×12”, 3” v.c. LF and 1x 1.4”exit, 3” v.c. HF ). The whole series is equipped with latest generation 1600 W RMS Class D Amp module Digipro G4 driving a powerful DSP and allowing each system to deliver impressive SPL (139 dB for VIO C12, 140 dB for VIO C15, and 141 dB for VIO C212).

Technical Data
Speaker Type2-Way Active Cluster Loudspeaker

Acoustical data
Usable Bandwidth [-10 dB]42 – 19.000 Hz
Frequency Response [-6 dB]46 – 18.000 Hz
Max SPL140 dB
HF1x 1.4”, 3” v.c. – Neodymium
LF1x 15”, 3.5” v.c. – Neodymium
Horizontal Directivity22.5°
Vertical Directivity45° (+15°/-30°)

Amplifier
Amplifier1600 W RMS Class-D Digipro® G4
CoolingConvection, Internal fan
Power SupplyFull-range SMPS with PFC

Processor
ControllerDSP 32 bit
AD/DA Converter24 bit/96 kHz
LimiterDual Active Peak, RMS, Thermal
Processing (filters)FIR Linear Phase
