EAW CIS400 Two-way Ceiling Monitor

EAW CIS400 Two-way Ceiling Monitor

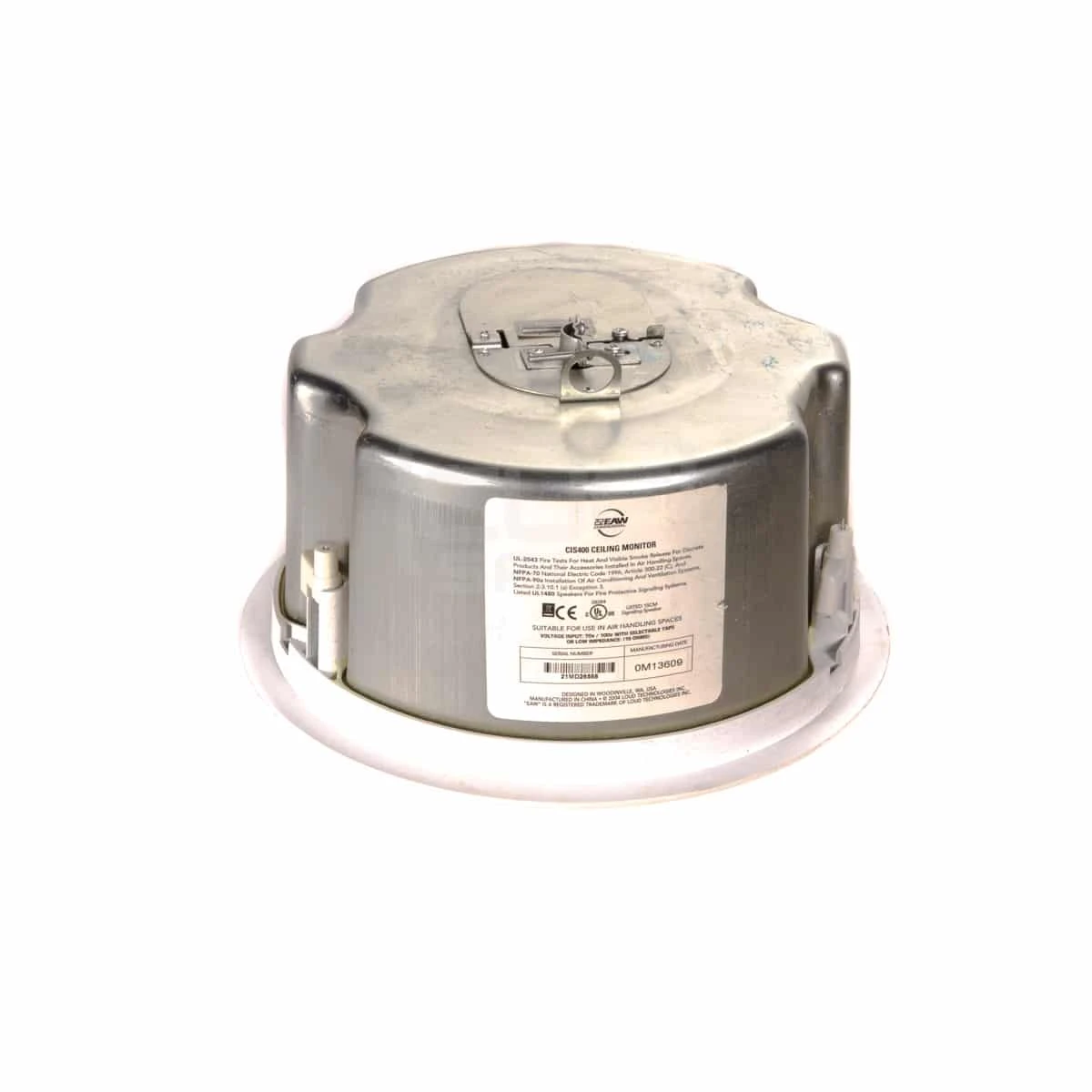

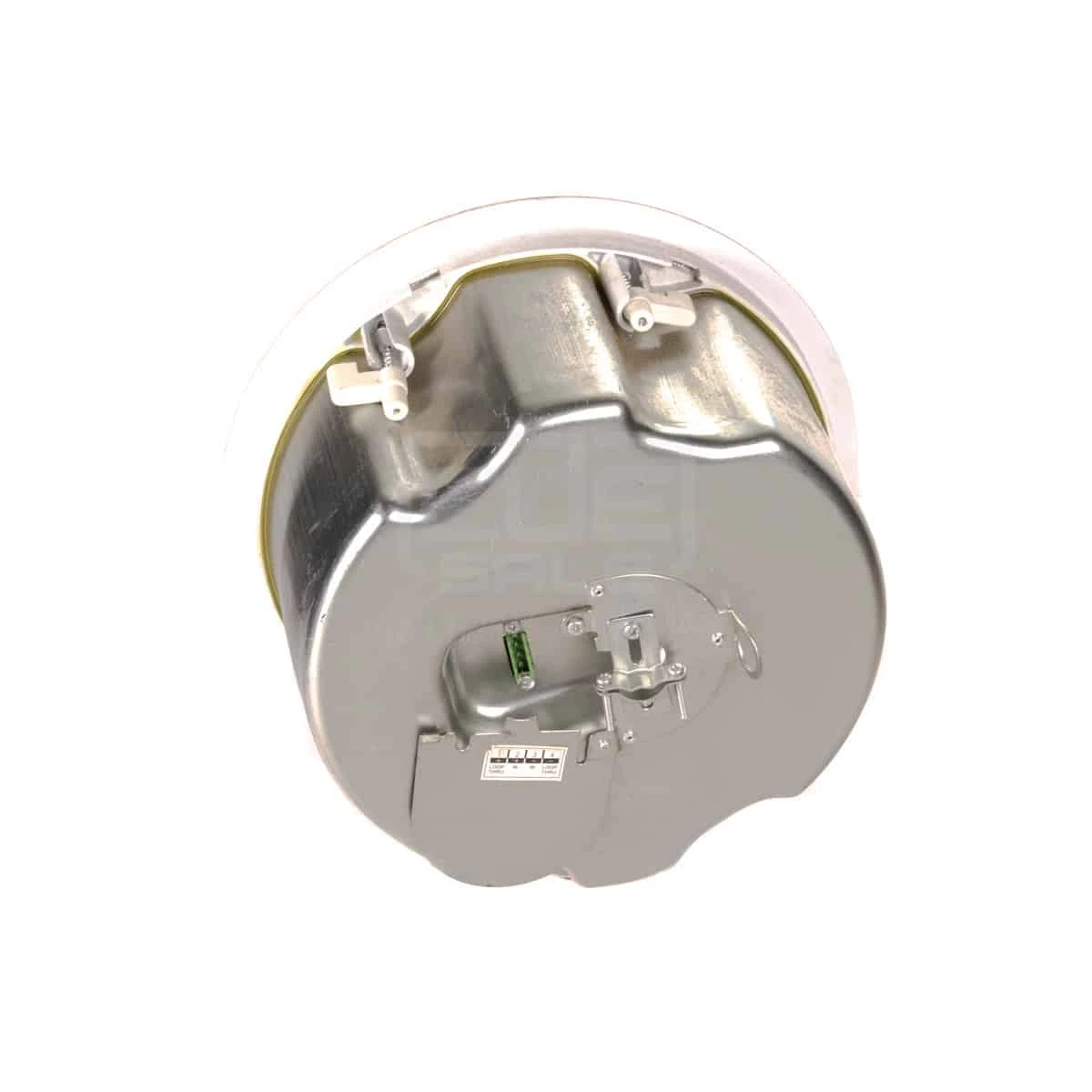

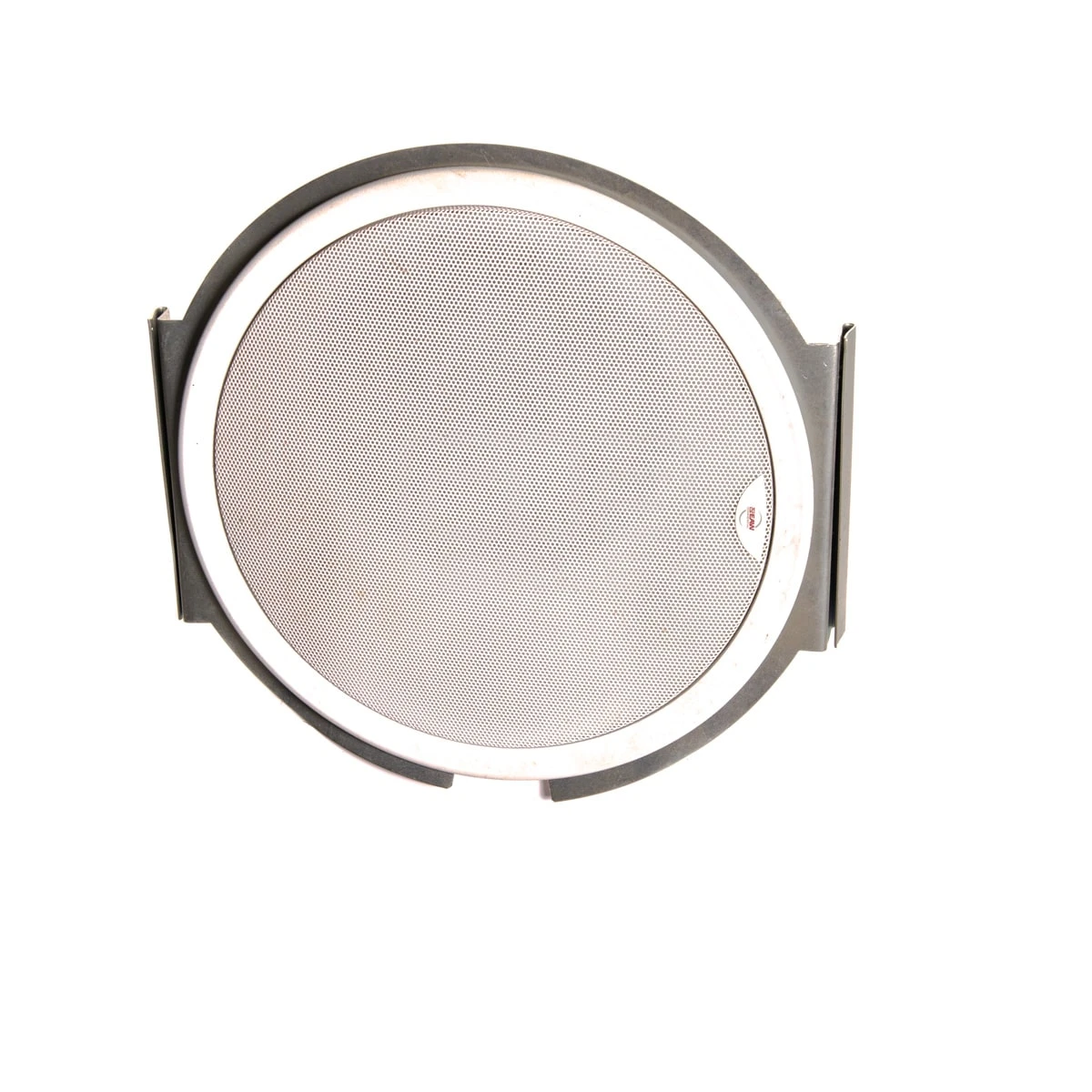

The CIS400 is a complete two-way bassreflex flush-mount loudspeaker assembly designed for fixed installations into typical ceiling plenum spaces. Employing a unique HF waveguide design based on the Mackie HR824 studio monitors, the CIS400 delivers superior dispersion and pattern control over conventional coaxial designs. The waveguide integrates the HF driver with a 6.5″ LF driver optimized for smooth frequency response and seamless transition through the crossover point. The result is extraordinary acoustic performance not generally associated with a commercial ceiling speaker in this price range.

FEATURES

· 6.5″ cast steel basket, high-efficiency carbon fiber woofer
· 110º x 110º constant directivity horn with Ferrofluid® cooled, 1″ Neodymium dome tweeter
· Built-in LICC low-inductance passive crossover with high frequency dynamic protection
· Lightweight, UV/weather resistant, high density polystyrene

SPECIFICATIONS

Freq. Range (–10 dB): 70 Hz–22 kHz
Freq. Response (–3 dB): 89 Hz–20 kHz
Horizontal Coverage Angle (–6 dB): 110° averaged, 1 kHz to 6 kHz
Vertical Coverage Angle (–6 dB): 110° averaged, 1 kHz to 6 kHz
System Sensitivity: 92 dB, 1W @ 1m
Rated Maximum SPL: 107 dB @ 1m
System Input Power Rating: 120W peak, 60W program, 30W long term
Transformer Taps
70V: 3.75W, 7.5W, 15W, 30W
100V: 7.5W, 15W, 30W
Operation in Low-Impedance Mode
Frequency Response: 89 Hz–20 kHz (–3 dB)

Set of 4;
3 mounting brackets
