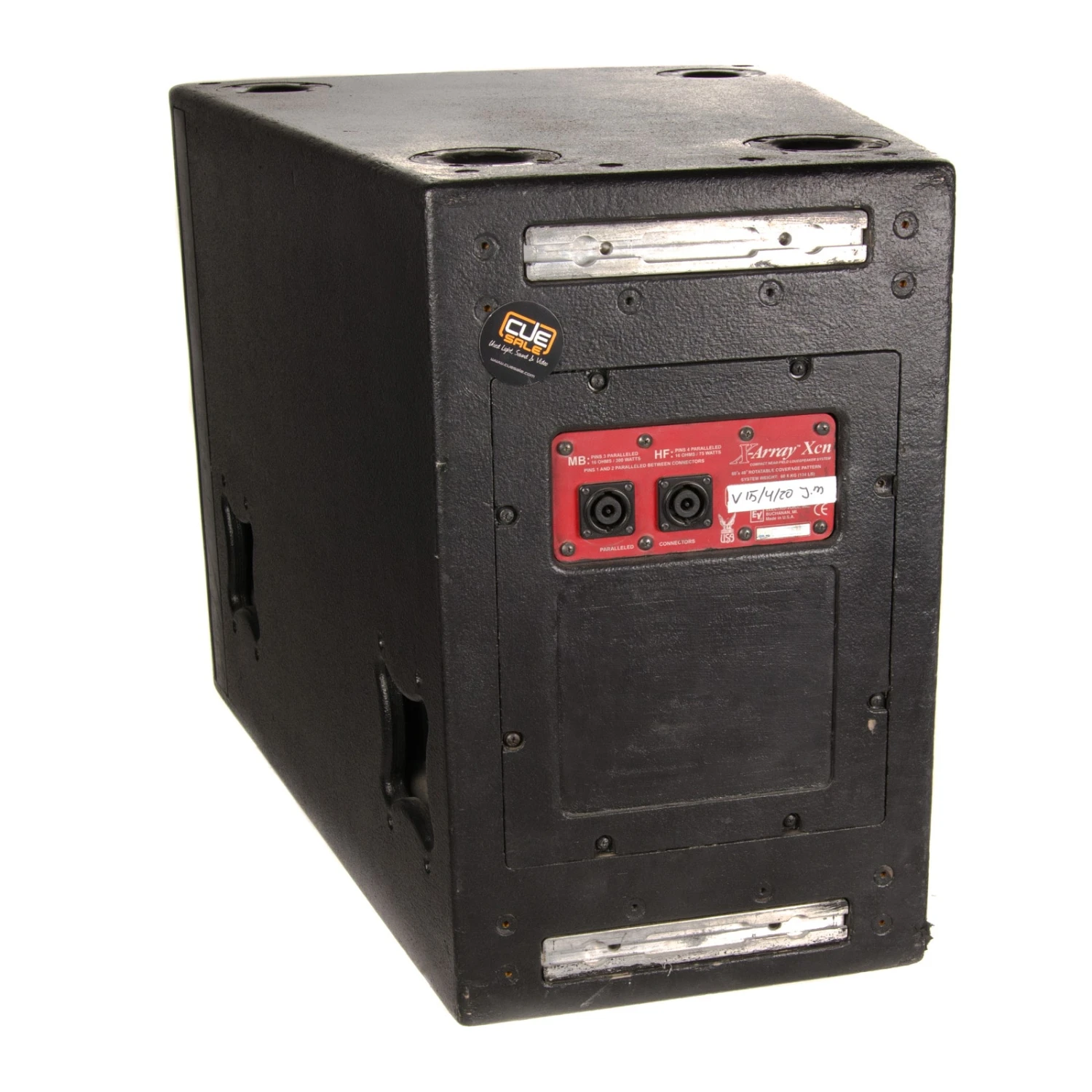

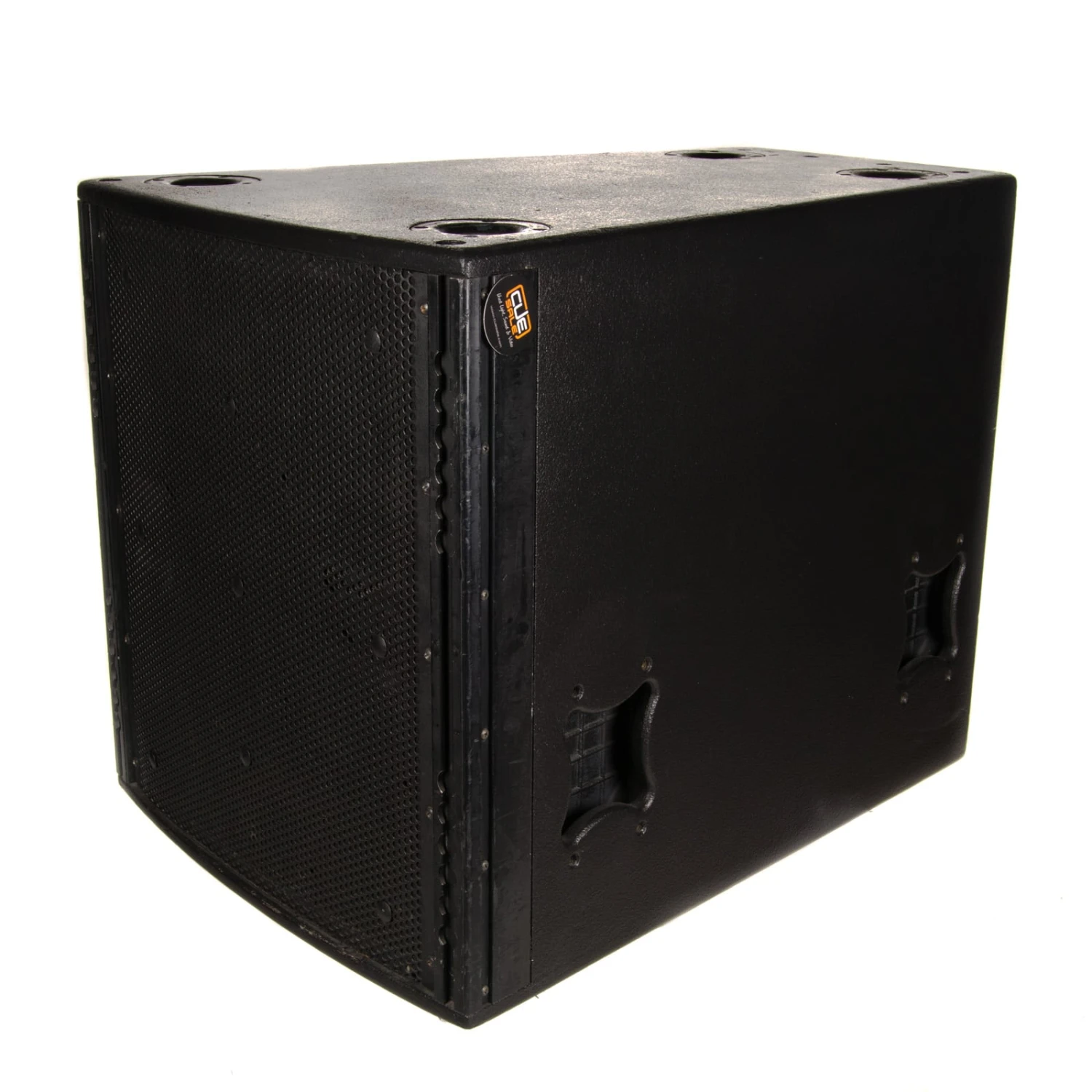

Electro Voice X-Array XCN Top Speaker

Electro Voice X-Array XCN Top Speaker

Only available per 2 pieces, 1 piece is €695

• Frequency Response (measured in far field, calculated to one meter on axis, swept sine wave, one watt into MB section–4.00 V at 500 Hz, anechoic environment): 125-20,000 Hz
• Crossover Frequency: 125/1,760 Hz
• Efficiency, Mid Band MB/HF: 25/25 %
• Maximum Long-Term-Average Power-Handling Capacity (per ANSI/EIA RS- 426A 1980), MB/HF: 300/75 watts
• Maximum Long-Term Average Mid-Band Acoustic Output, MB/HF: 75/19 acoustic watts
• Sensitivity (SPL at one meter, indicated input power, anechoic environment, average level), MB/HF,
  • 1/1 watt: 110.0/112.0 dB
  • 300/60 watts: 134.8/130.8 dB
• Beamwidth (angle included by 6-dB-down points on polar responses, indicated one-third-octave bands of pinknoise,
  • Horizontal, 800-16,000 Hz: 60° (+30°, -18°)
  • Vertical, 800-16,000 Hz: 40° (+24°, -4°)
• Directivity Factor, R (Q),800-16,000 Hz
  • Average: 22.1 (+12.5, -7.6)
• Directivity Index, D, 800-16,000 Hz
  • Average: 13.4 dB (+2.0 dB, -1.8 dB)
• Distortion (115 dB SPL at one meter, shaped spectrum),
