ElectroVoice X-Array Xi-1183/64 (SET Of 2)

ElectroVoice X-Array Xi-1183/64 (SET of 2)

Three-Way, Full-Range, Sound-Reinforcement System

Introducing a family of advanced sound reinforcement products for everyone who desires the sound quality of Electro-Voice’s X-Array™ touring systems. X-Array Install™ is the ideal choice for small-to-medium array configurations and fixed installations of any size.
Inspired by the most demanded features of EV’s acclaimed X-Array™ touring systems, the X-Array Install™ series incorporates a potent combination of very high output, medium- to long-throw “cells,” and Ring Mode Decoupling (RMD™).
Ring-Mode Decoupling (RMD™) RMD™ (Ring-Mode Decoupling) is the same advanced technology built into the X-Array™ touring series. RMD™ produces substantially improved tonal character and fidelity whether operated at low or extremely high sound pressure levels. RMD™ attacks time domain “ringing modes” at their sources. Mechanical solutions resolve mechanical issues, and acoustical solutions address acoustical modes found in all sound reinforcement systems. The combination of each RMD™ technique provides improved tonal character and fidelity at increasing drive levels. The result is clear, even sound quality with vastly improved intelligibility.

Xi-1183/64

This full-bandwidth, three-way, triamp system is designed for medium- to long-throw applications. Its high-frequency horn/driver section is rotatable to provide proper coverage for vertical or horizontal system installations.
The low-frequency is powered by an 18-inch driver (EVX-180B) in a slot-loaded, closed-box configuration suitable for moderate to moderately high sound pressure levels. The 12-inch, application-specific mid-bass driver features RMD™ and a 60° x 40° horn.
The DH6 high-frequency driver/horn combination is fully “shrouded” to preserve midbass wave-front detail.

• Full Ring-Mode Decoupling (RMD™)
• Ultra-compact/high-level, three-way design
• EVX-180B low-frequency section: Excellent linear excursion, superior thermal capability
• New design, 12-inch mid-bass driver (60° x 40°)
• Coaxially-mounted HF section includes DH6 compression driver for very high output, extremely rigid piston range performance
• Fully rotatable HF section for vertical or horizontal suspension

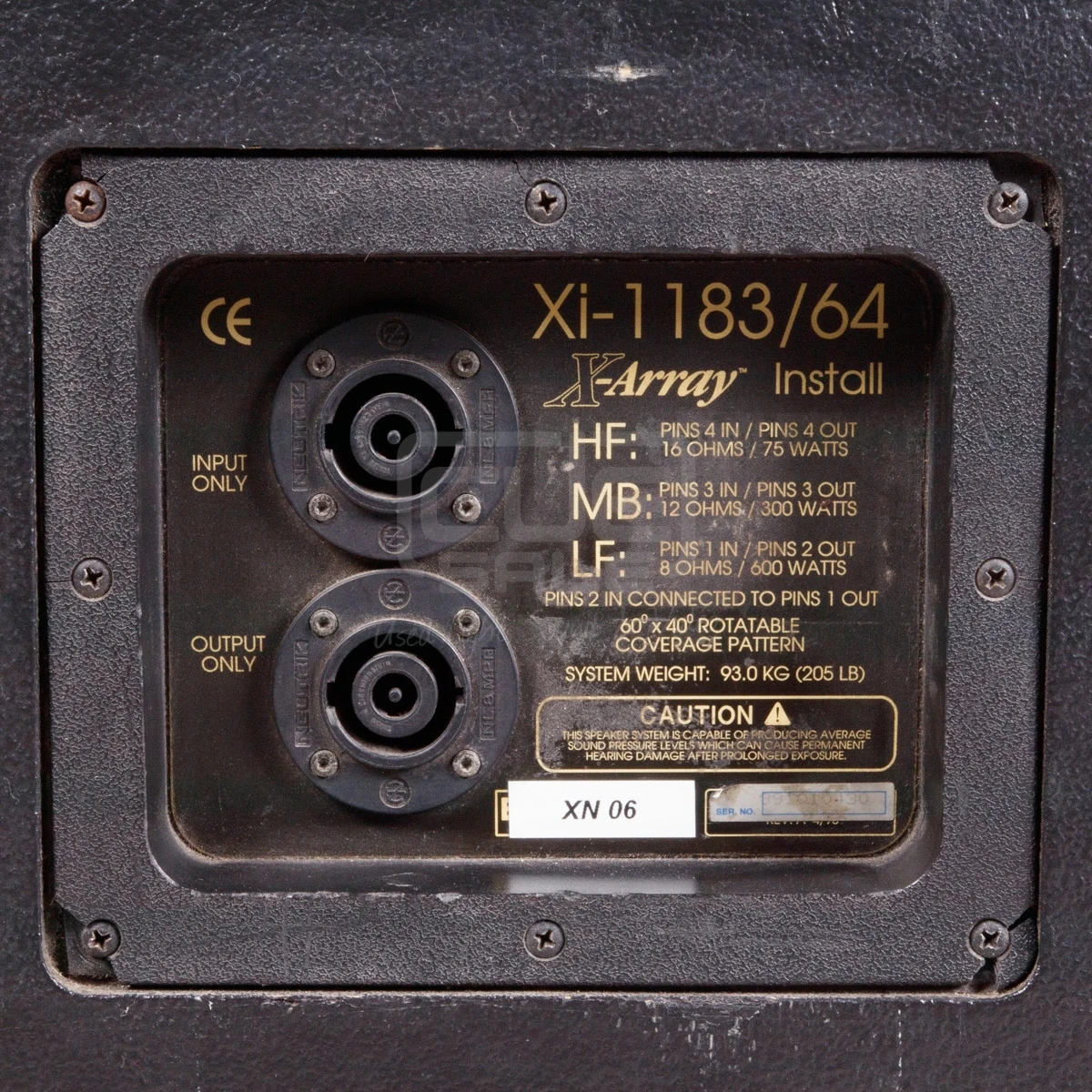

Low-Frequency Section : 600 watts
Mid-bass Section :  300 watts
High-Frequency Section : 75 watts
