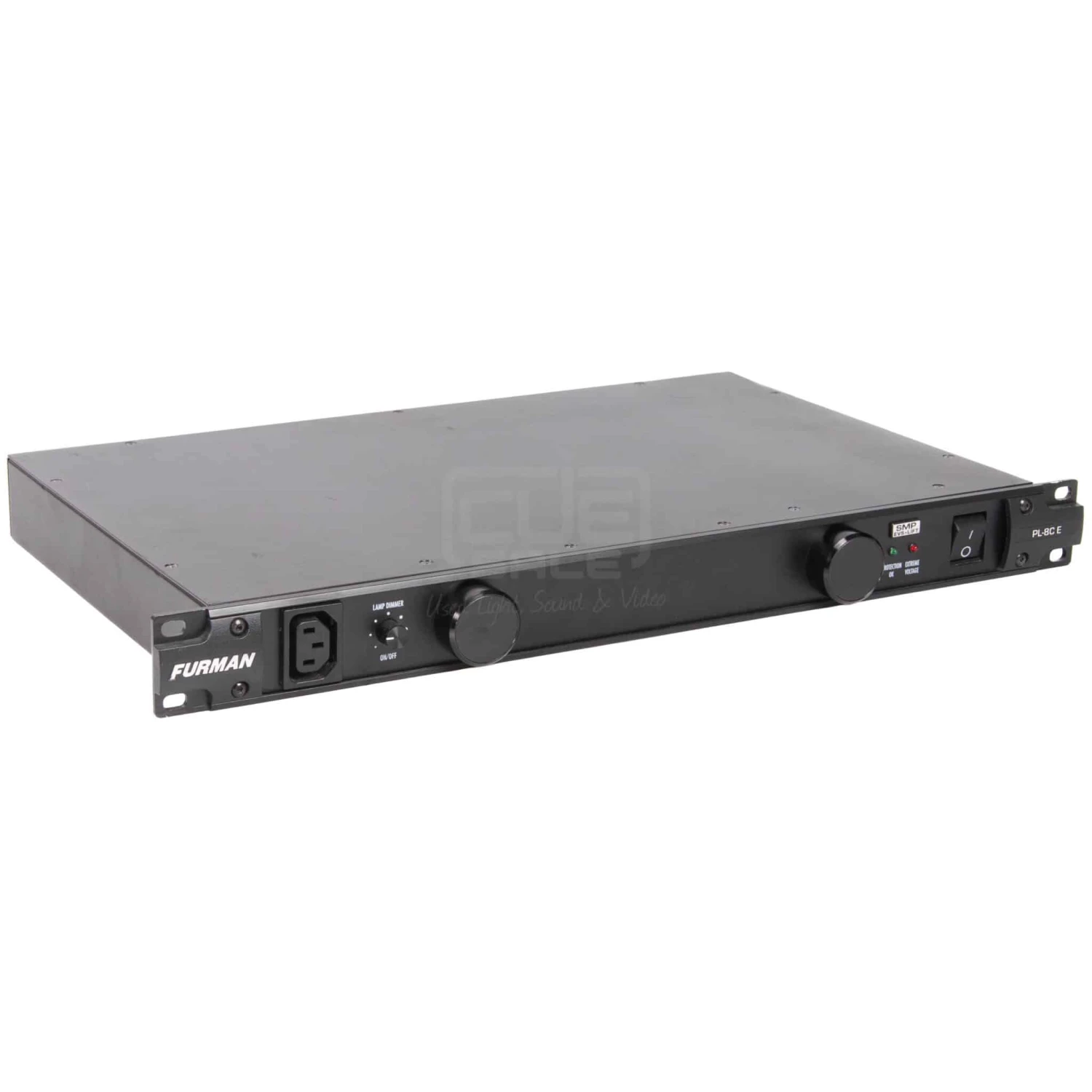

Furman PL-8C E Power Conditioner With Lights

Furman PL-8C E Power Conditioner with Lights

The Classic Series features Furman revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT) and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the worlds most advanced and comprehensive transient voltage surge protectors.

Specifications :

• Family : Classic Series 240V
• Line Voltage : 240 Volts
• Power Requirements : 240 Volts
• Number of Outlets : 11
• Number of Isolated Banks : 2
• Outlet s : All 11 outlets linearly filtered and surge protected
• Rack Mountable : Yes
• Rack Ears Included : Yes
• Front Panel Meter(s) : No
• Front Media Light(s) : 2 multi-LED, dimmable lamps
• Control : On/Off switch and light dimmer knob on front panel
• Power Consumption : 12 Watts
• AC Protection : Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination
• Under-Voltage Shutoff : 180V
• Over-Voltage Shutoff : 274V
• Maximum Current Rating : 10 Amps
• Initial Clamping Level : 375 VAC peak @ 3,000 Amps
• Filtration Technology : LiFT
• Filtration Rating : 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
• Power Cord : 3/1.0MM AWG, 2.5M cord w/IEC female to 10A Schuko plug
• Voltage Protection Rating : UL 1449 3rd Edition, 3,000A
• Response Time : 1 nanosecond
• Peak Impulse Current : 6,500 amps
