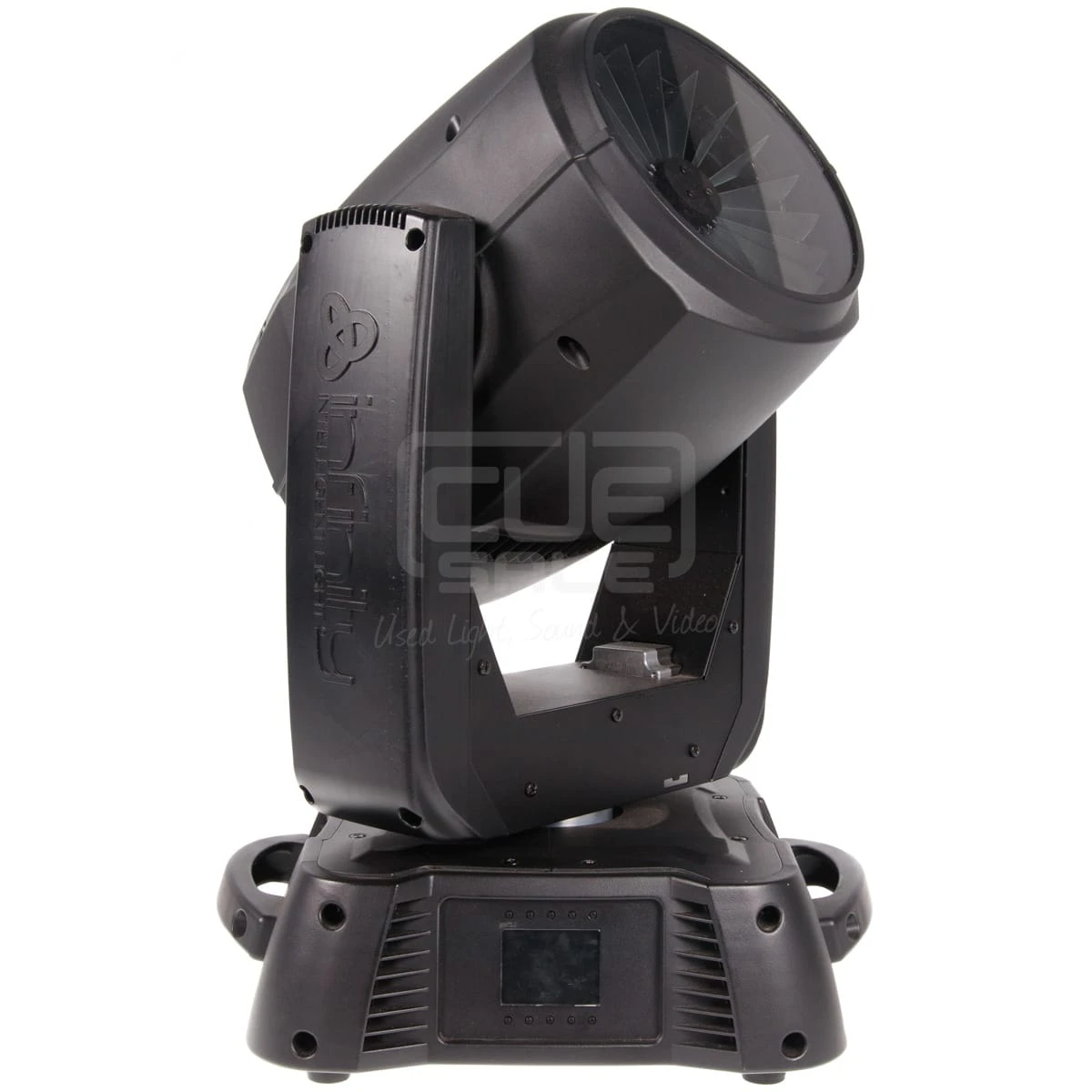

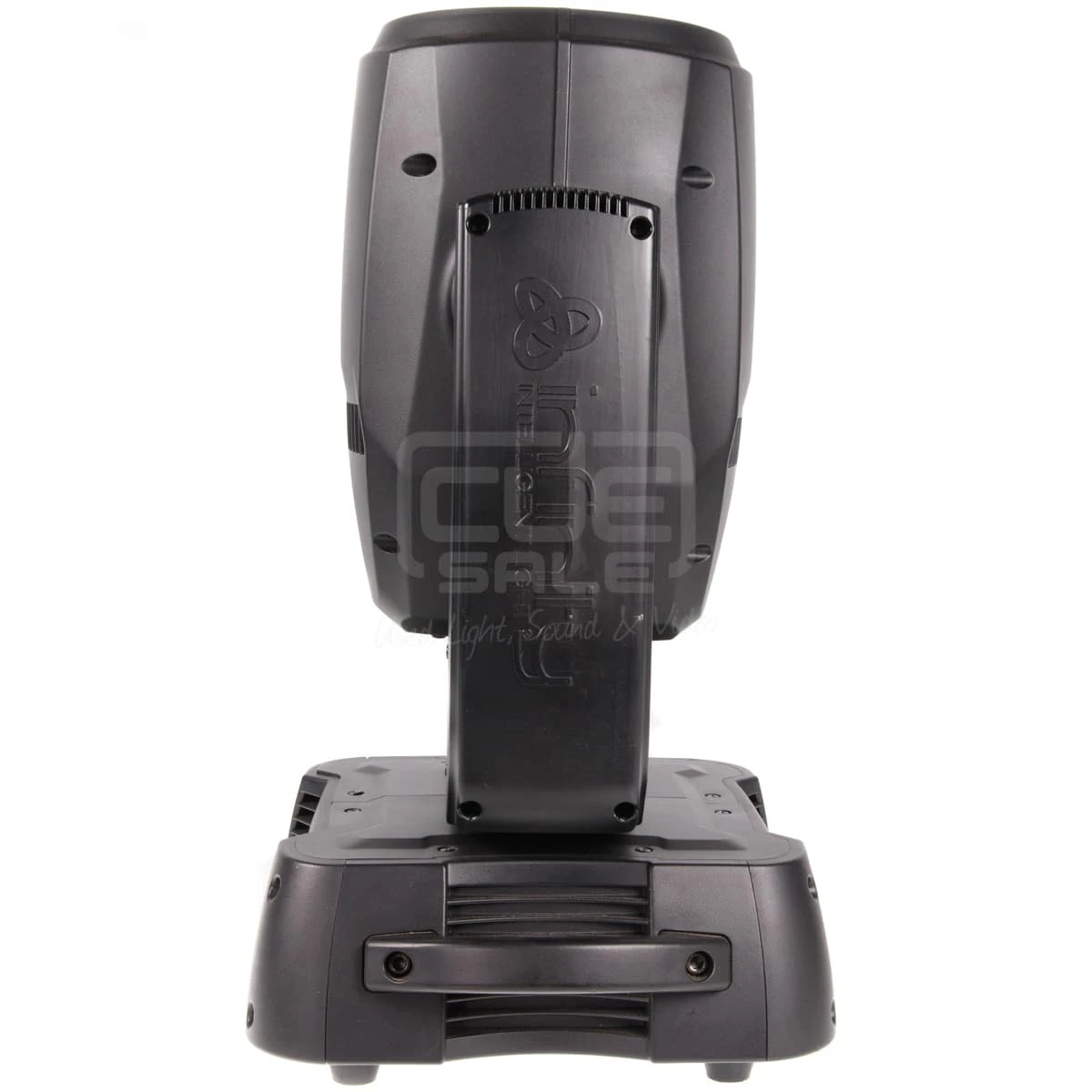

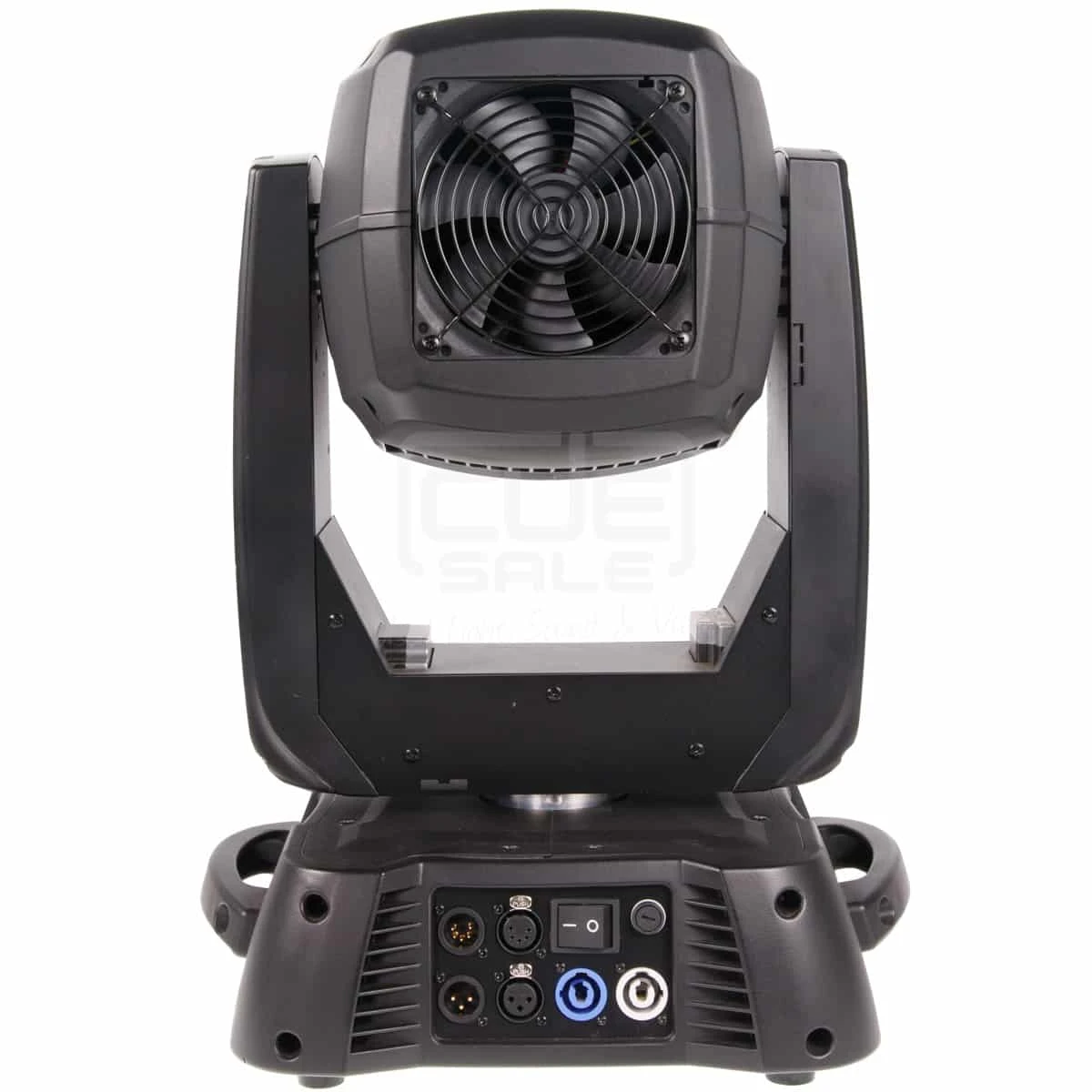

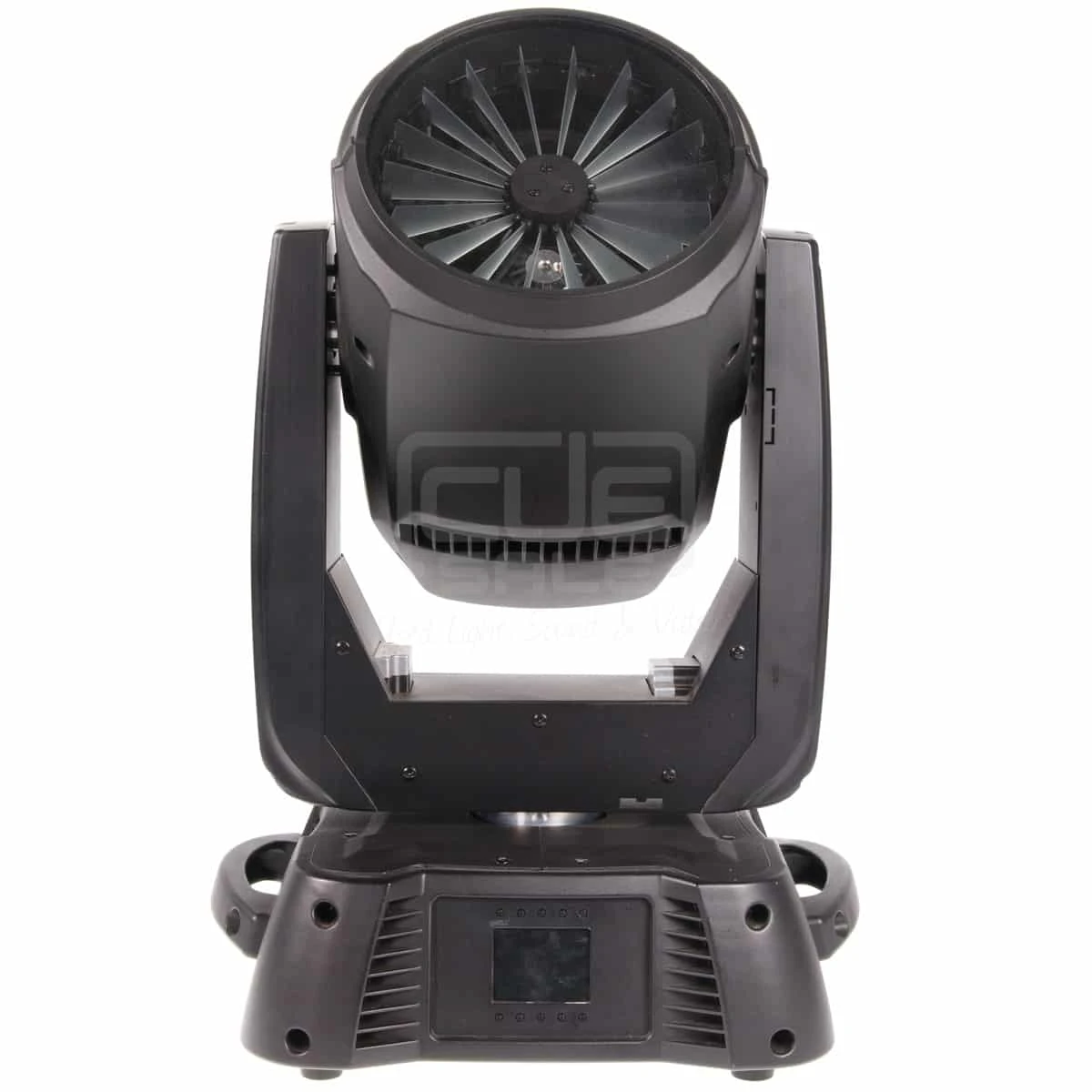

Infinity IFX-640 RGBW Effect Moving Head

Infinity iFX-640 RGBW Effect Moving Head (Pre production model)

Pre production model (missing logo’s) matches with the current iFX-640

The Infinity iFX-640c, a diffraction filter that creates flower effects, beam diffusion blades for making a nice wash, and a strobe function.

With the iFX-640 you can create nice colours, from punchy saturates to smooth pastels and whites. It’s also possible to seamlessly transition from a narrow 5° beam to a wide 36° wash thanks to its motorised zoom. Furthermore, you can control the angle of the beam diffusion blades on a continuous scale. This allows you to create a frost effect that is precisely tailored to your scene. Controlling this fixture can be done manually and via DMX in either Manual and Auto-Run mode.

Features :

• 6x O-star RGBW LED Moving Head
• Endlessly rotatable, bi-directional front lens (prism effect)
• Beam diffusion blades with frost effect
• Individual Pixel Control (6 sections)
• Flower effect

Specifications :

• Source :
  • Light Source Type : LED
  • Light Source Quantity : 6
  • Light Source Power : 40 W
  • LED Colour Type : RGBW
  • Life Expectancy : 20000 h
  • Refresh Rate (Max.) : 15 kHz
  • Luminous Flux (Total) : 1800 lm
  • CRI : 80
• Optical :
  • Beam Angle Minimum (Circular) : 5 °
  • Beam Angle Max. (Circular) : 36 °
  • Zoom Type : Motorised
  • Zoom Ratio : 1:7
  • Frost : Yes
• Control and Programming :
  • Control Mode : Auto, DMX, Manual
  • DMX Channels : 24
  • Protocols : DMX, RDM
  • Display : Battery, Gravity Sensor, LCD
  • Fan mode : Yes
  • Dim Curve : Linear, Square, I-Square, S-Curve
  • Zone Control (Sections) : 6
  • Dimmer Resolution : 16 bit
  • Zoom Resolution : 8 bit
  • Frost Resolution : 8 bit
• Dynamic Effects :
  • Dimmer : 0-100 %
  • Strobe : 0-20 Hz
  • Prism 1 : Circular
• Movement :
  • Pan : 540 °
  • Tilt : 270 °
  • Pan/Tilt Resolution : 16-bit
  • Continuous Movement : Rotating Optics
• Electrical Specifications and Connections :
  • Power Supply : 100-240 V AC 50/60 Hz
  • Power Consumption : 360 W
  • Power Connector In : powerCON Blue
  • Power Connector Out : powerCON Grey
  • DMX Connector : XLR 5P In/Out
  • DMX Connector In : XLR 3P, XLR 5P
  • DMX Connector Out : XLR 3P, XLR 5P
• Mechanical Specifications :
  • Length (mm) : 304 mm
  • Width (mm) : 364 mm
  • Height (mm) : 540 mm
  • Weight : 14.3 kg
  • IP Rating : IP20 (indoor use only)
  • Housing : Metal, Plastic
  • Colour : Black
• Product Properties :
  • Cooling : Active
• Rigging :
  • Mounting Options : Quick-Lock
  • Safety Attachment : Yes
  • Safety Eyes : 1
