Infinity IS-100 Spot

Infinity iS-100 Spot

The iS-100 is a powerful LED moving head, fully equipped with high-end technology, which is characteristic for Infinity®. Its high torque motors on both pan and tilt enable fast movements and a powerful 100 W LED engine offers a bright and solid beam. Also, the trapezium shaped colour wheel ensures smooth colour changes, fades and split colours.

Additionally the iS-100 features has two gobo wheels of which one fixed wheel with 8 metal gobos and another rotating wheel containing 7 separately rotating gobos (2 of which are glass) and a colour wheel with 8 colours + white, offering the possibility to create half colours. For extra effects it is equipped with an iris as well a rotating 3-facet prism.

Features :

• Motorised Iris & Focus
• Covers with quick lock screws
• Fast colour & gobo changes
• Fast movement through high torque motors
• Battery powered menu

Specifications :

• Source :
  • Light Source Type : LED
  • Light Source Quantity : 1
  • Light Source Power : 100 W
  • LED Colour Type : White
  • Luminous Flux (Total) : 5000 lm
• Optical :
  • Beam Angle Max. (Circular) : 15 °
  • Zoom Type : Motorised
  • Focus : Motorised
  • Iris : Motorised
• Control and Programming :
  • Control Mode : Built-in Program, DMX, Manual
  • DMX Channels : 16, 19
  • Protocols : DMX
  • Display : Battery, Gravity Sensor, LCD
  • Dimmer Resolution : 16 bit
• Dynamic Effects :
  • Dimmer : 0-100 %
  • Strobe : 0-20 Hz
  • Prism 1 : 3-facet
  • Prism Index & Rotate : Yes
  • Colour System : Colour Wheel
  • Colour Wheel Index & Rotate : Yes
  • Dichroic Colour Wheel 1 : 8 + Open
  • Gobo System : Glass + Metal
  • Gobo Wheel Index & Rotate : Yes
  • Gobo Wheel 1 : 7 + Open
  • Gobo Wheel 2 : 8 + Open
  • Gobo Size : 27 mm
  • Image Diameter : 23 mm
• Movement :
  • Pan : 540 °
  • Tilt : 270 °
  • Pan/Tilt Resolution : 16-bit
• Electrical Specifications and Connections :
  • Power Supply : 100-240 V AC 50/60 Hz
  • Power Consumption : 220 W
  • Fuse : 5 A

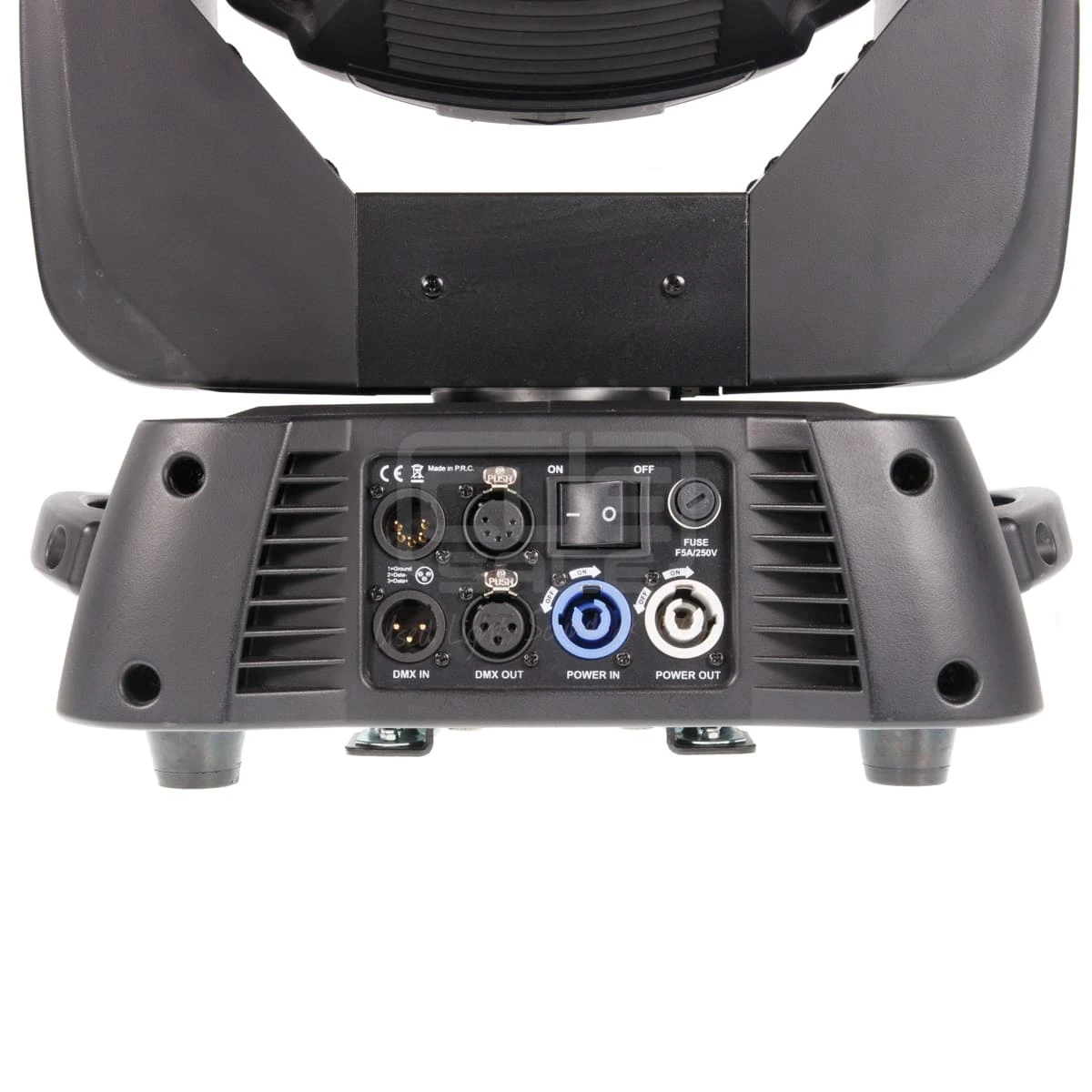

  • Power Connector In : powerCON Blue
  • Power Connector Out : powerCON Grey
  • DMX Connector : XLR 3P In/Out, XLR 5P In/Out
  • DMX Connector In : XLR 3P, XLR 5P
  • DMX Connector Out : XLR 3P, XLR 5P
• Mechanical Specifications :
  • Length (mm) : 306 mm
  • Width (mm) : 303 mm
  • Height (mm) : 485 mm
  • Weight : 16.5 kg
  • IP Rating : IP20 (indoor use only)
  • Housing : Metal, Plastic
  • Colour : Black
• Product Properties :
  • Cooling : Axial fan
• Rigging :
  • Mounting Options : Quick-Lock
  • Safety Attachment : Yes
