Infinity IW-740 RGBW Wash

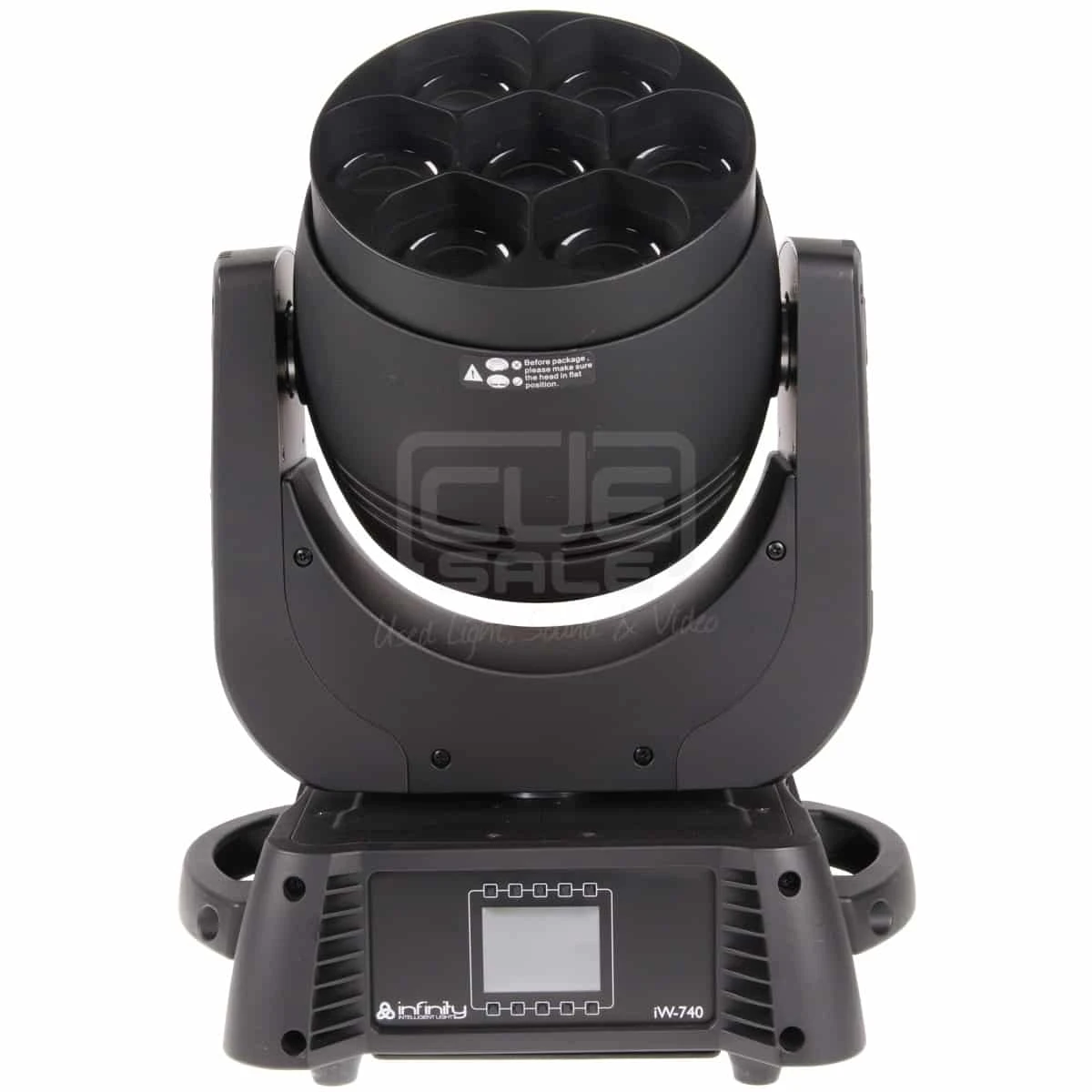

Infinity iW-740 RGBW Wash

The iW-740 RDM is the mid-sized fixture in the Infinty series and already capable of delivering an enormous output. Seven Osram 40 W O-Star RGBW LEDs guarantee for bright and beautiful colours. Individual pixels are controlled via DMX / Art-Net or just select macro patterns to transform it into an exciting effect light. Built-in background LEDs add an additional layer to the already very extensive creative possibilities.
The specially designed optics and the intelligent colour mixing system, with a separate CTO channel system, will allow you to create spectacular light effects.

Features :

• RDM
• Selectable PWM rate by DMX
• Electronic 4.5° – 36° Zoom
• Pixel control by DMX / Art-Net
• Battery powered touch display

Specifications :

• Output :
  • Lux @ 3m : 35556
  • Beam Angle : 4.5° – 36°
  • Light Source : 7 x 40W RGBW (Osram Ostar)
• Electrical :
  • Input voltage : 100~240VAC, 50/60Hz (auto ranging)
  • Power consumption : 300W
• Control :
  • On Board : Battery powered full colour display including gravity sensor
  • Mode : DMX, Auto, Master/Slave
  • Control protocol : DMX-512, Artnet, RDM
  • Control personality : 21 / 28 / 43 channels
• Optical system :
  • Dimmer : 0-100% 16 bit
  • Dimmer curves : Linear, Square, I-Square, S curve
  • Dimmer speed : Smooth, Fast
  • Colour balance : Separate RGBW adjustment
  • Colour mode : RGB / CMY
  • Strobe : 0-20Hz
  • Zoom : 4.5° – 36°, motorized
• Movement :
  • Pan : 540°
  • Tilt : 270°
  • Pan/Tilt resolution : 16 bit
  • Special : Pan/Tilt change black out, User selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement.
• Physical :
  • Colour : Black
  • Housing : Metal & Flame retardant plastic
  • Fixture connections : XLR 3&5p & RJ-45 Data in/out, PowerCON TRUE1 in/out
  • Dimensions (WxDxH) : 345 x 274 x 412mm
  • Weight : 9.3Kg
