Lightware DVI-HDCP-OPTS DVI Over Fiber

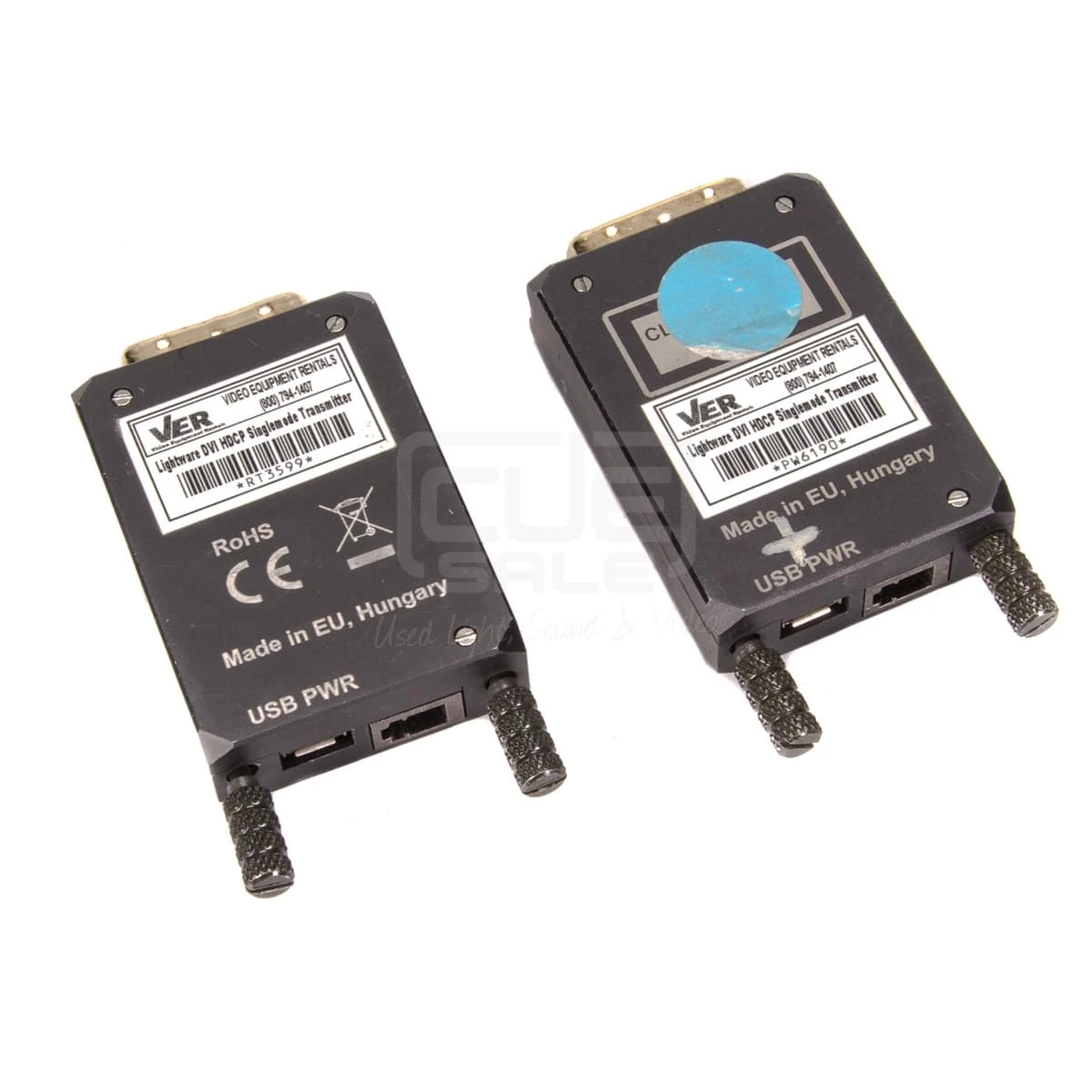

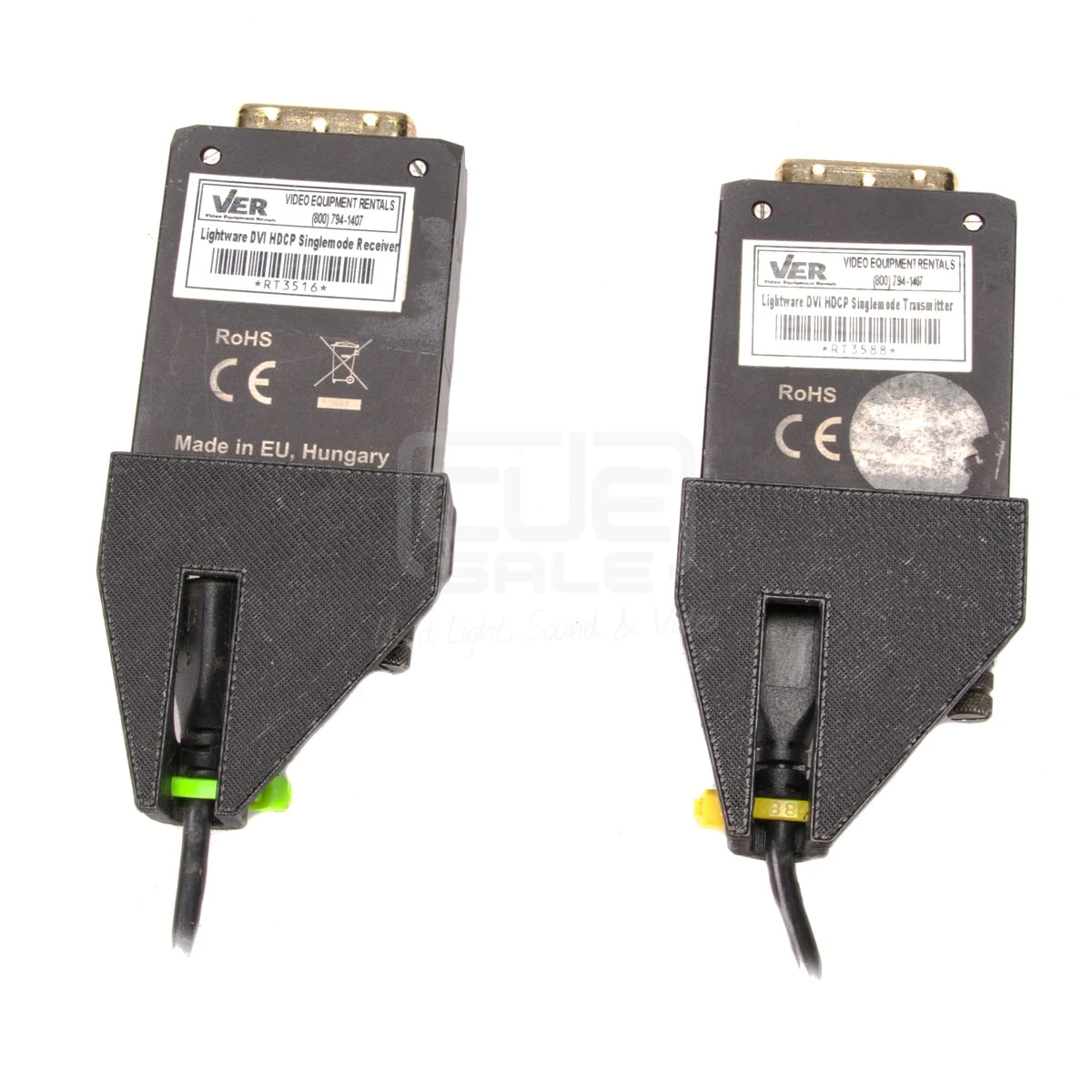

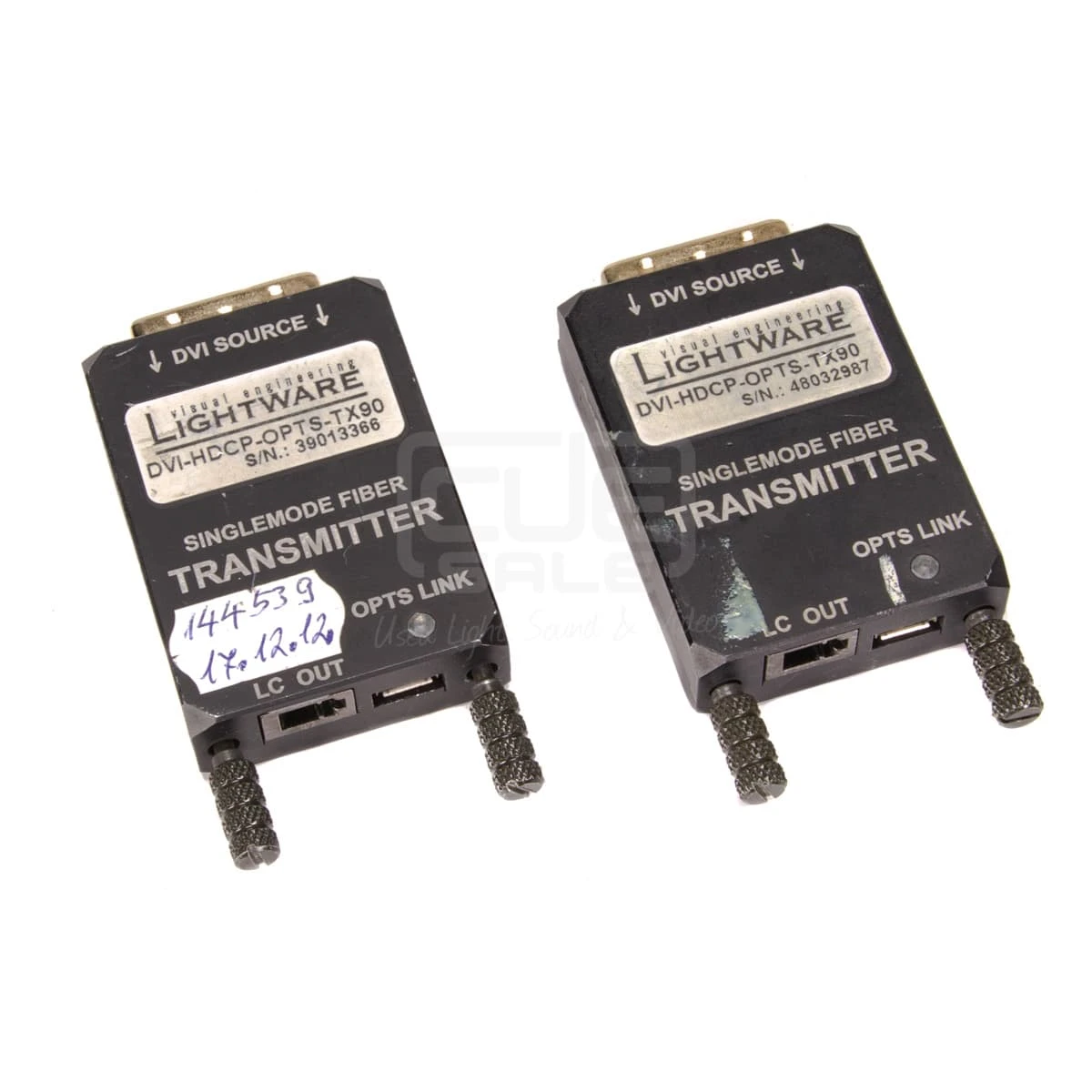

Lightware DVI-HDCP-OPTS TX90-RX90 Set

The DVI-HDCP-OPTS-TX90 / RX90 pair is a DVI fiber transmitter / receiver set for up to 10km distance transmission. Using Singlemode Fiber Technology the DVI and HDMI signals with HDCP encryption are transmitted over only one Singlemode 9/125 fiber core. Sources and display devices both have galvanic isolation to avoid ground loops as well as humming effects. No delays occur in the signal, as the video image is transported without any frame latency. The OPTS-RX90/TX90 extender pair supports EDID pass-through allowing the video source to
read video display device’s capability.
Pixel Accurate Reclocking is Lightware proprietary technology which provides exceptional signal regeneration capability. The circuitry cleans the signal from noise, skew and jitter which are caused by long cable runs and EMC incompatible devices.
In some applications our OPTS-TX90 transmitters can be powered from DVI source which makes the installation even simpler, but in other cases it might need to be powered with a USB cable. The OPTS-RX90 receivers always need the USB power supply. Recessed thumbscrews allow easy mounting directly to DVI-D sockets by hand, or by using a flat-bladed screwdriver. It is very useful in space saving applications, where the connectors are at close quarters and can only be reached from the rear side. The massive solid metal casing provides excellent cooling and maximal reliability

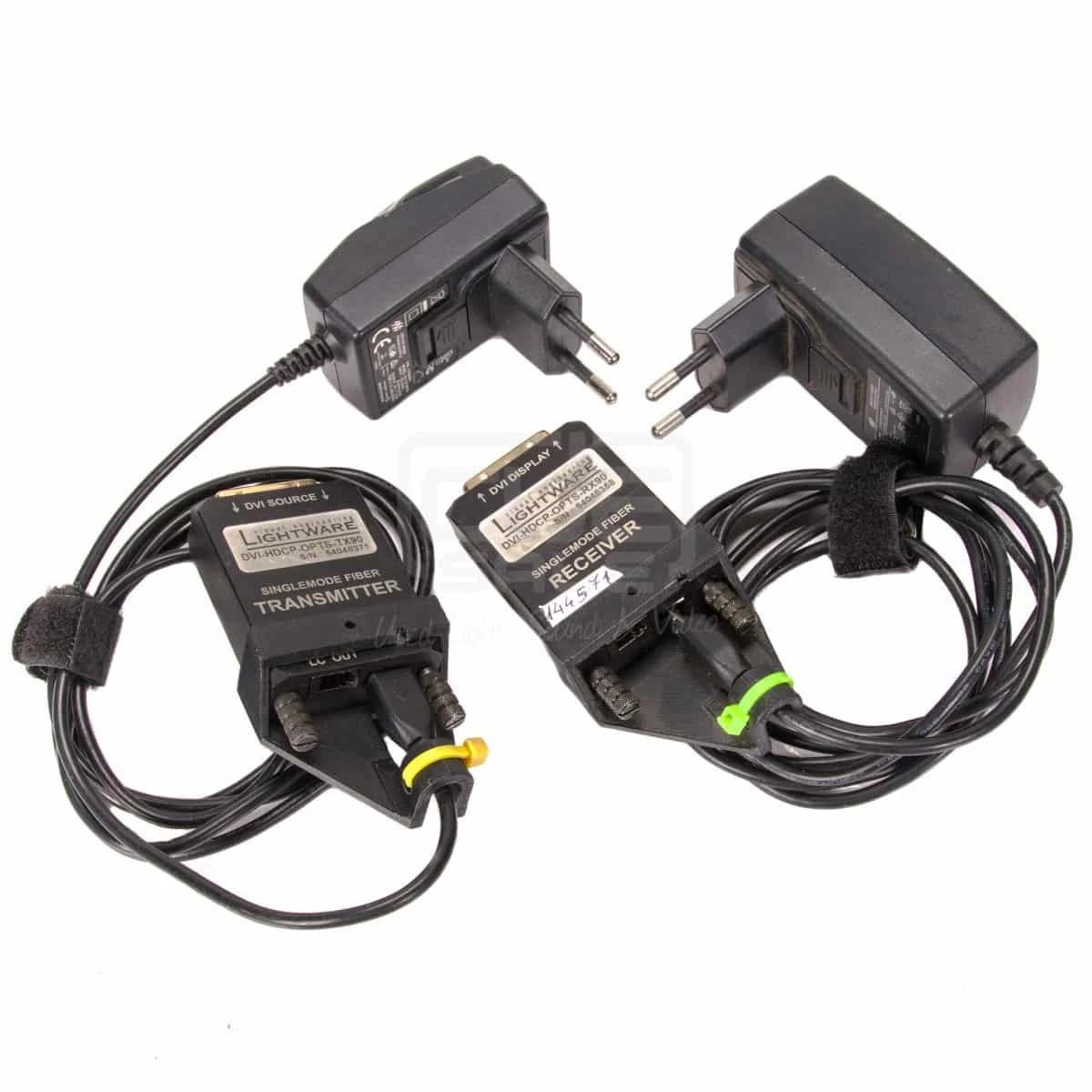

* 2 sets no psu
