LT-Light Liberty Dimmer 6 Channel X 5KW

LT-Light Liberty Dimmer 6 Channel x 5KW

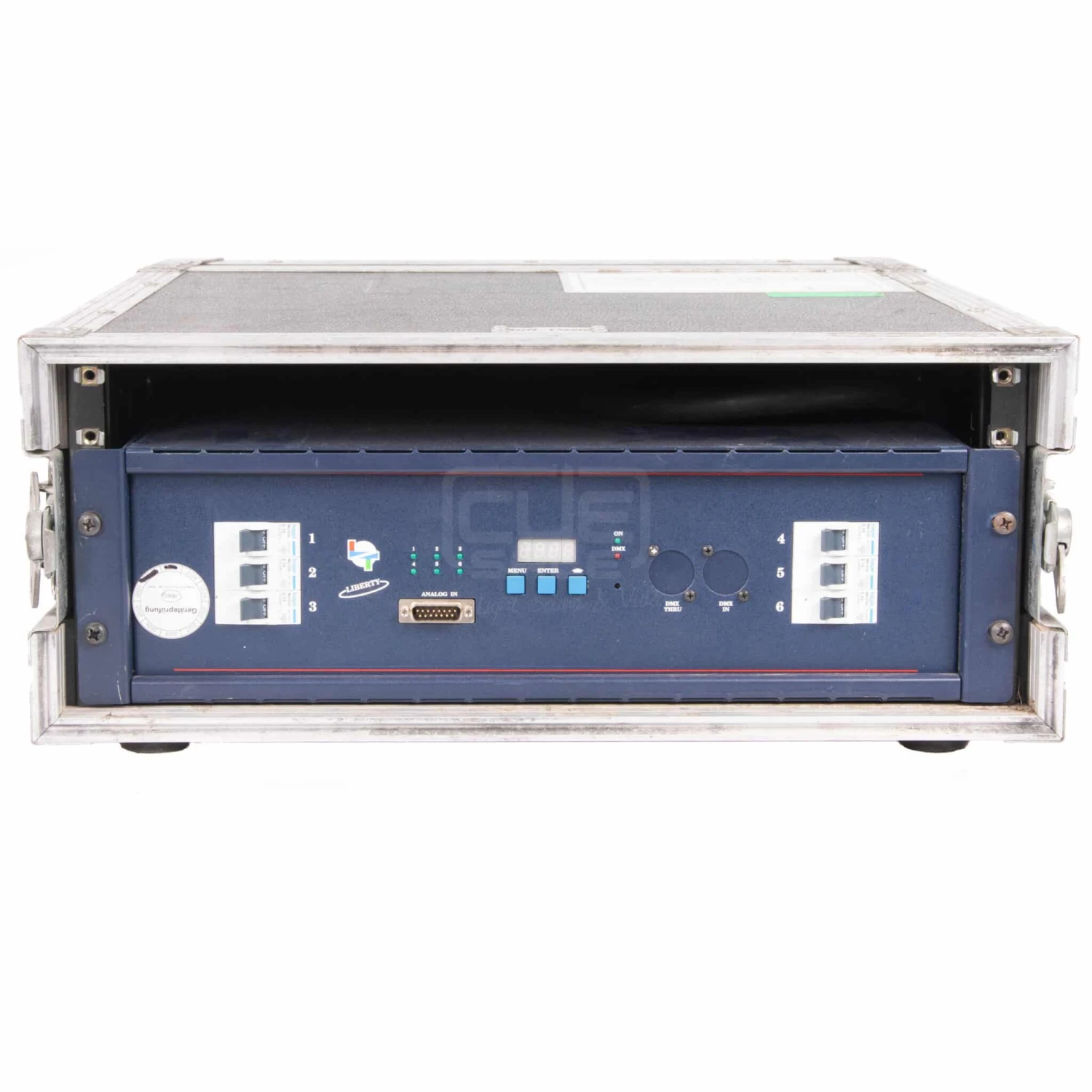

4 Units in slightly different flightcases, please select. Blue flightcase model shows dimmer unit as reference.

The most competitive dimmers, completely digital and high quality. The LIBERTY dimmers have a new design concept that they permit us different configurations of the base unit.
These dimmers are perfects to fixed installations and like tours dimmers. Designed for standard cabinets of 19”. These dimmers are the ideal for Theatres, Auditoriums, Orchestras and Discotheques, Television studios and others events.

Features :

• Slow rearm at switch on (≈ 2 s).
• Frequency automatic adjust between 40Hz & 70Hz.
• Microprocessor dimming control, by input phase. Software control of the main supply noise, avoiding flickering.
• The last valid DMX signal is maintained in the outputs when the digital communication faults.
• One backup memory.
• 3 phases.
• Circuit breaker (one pole) by channel. Optional – It is possible to install DPN circuit breakers. In the 5kW dimmer the circuit breaker, always, is DPN.
• Fan forced ventilation.
• Noise suppression: minimum 111 μs AMECON chokes. Efficiency between 25% & 100% of the nominal channel load.
• Power control: Triac 25 A, for 2500 W. Triac 40 A for 5000 W.
• Digital control: DMX-512 (1990).
• Analogy control: 0 +10V.
• 1 LEDs per channel, give us the channel output level.
• 1 information LED for DMX input.
• 1 information LED for correct electronic power supply.
• Numerical display of 4 digits for general information & menus.
• 3 function keys for menus.
• Dimming curves: Lineal, square, invert square, on/off & park. These curves are adjusted with the input frequency.
• Preheat level. This function is lineal for all dimmers channels.
• Menus:
  • DMX direction (lineal patch).
  • Preheat level.
  • Curve by dimmer pack or by channel.
  • Test functions: DMX, 0 +10 & software.
  • Back Up: One backup memory is possible.
  • Active / deactivate 0 +10V control.
•   Size in mm (width x depth x height) : 6 x 5 kW: 483 (19”) x 400 x 132 (3U).
• Weight: 15 Kg.
