M-Audio BX-5 SBX-10 Set

M-Audio BX-5 BSX-10 Set

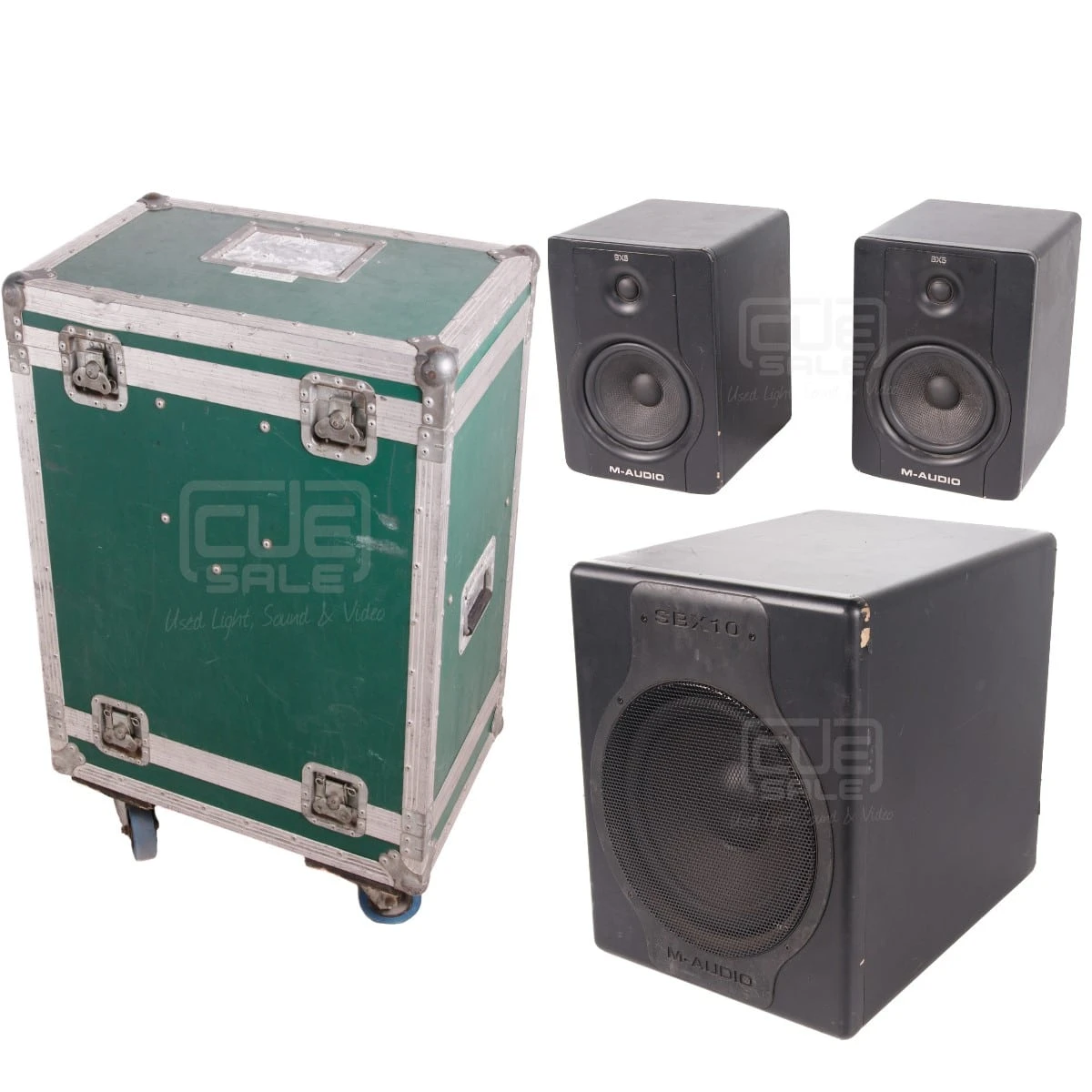

Set of :

• 2x BX-5 D2 Studio Monitor
• 1x SBX-10 Subwoofer

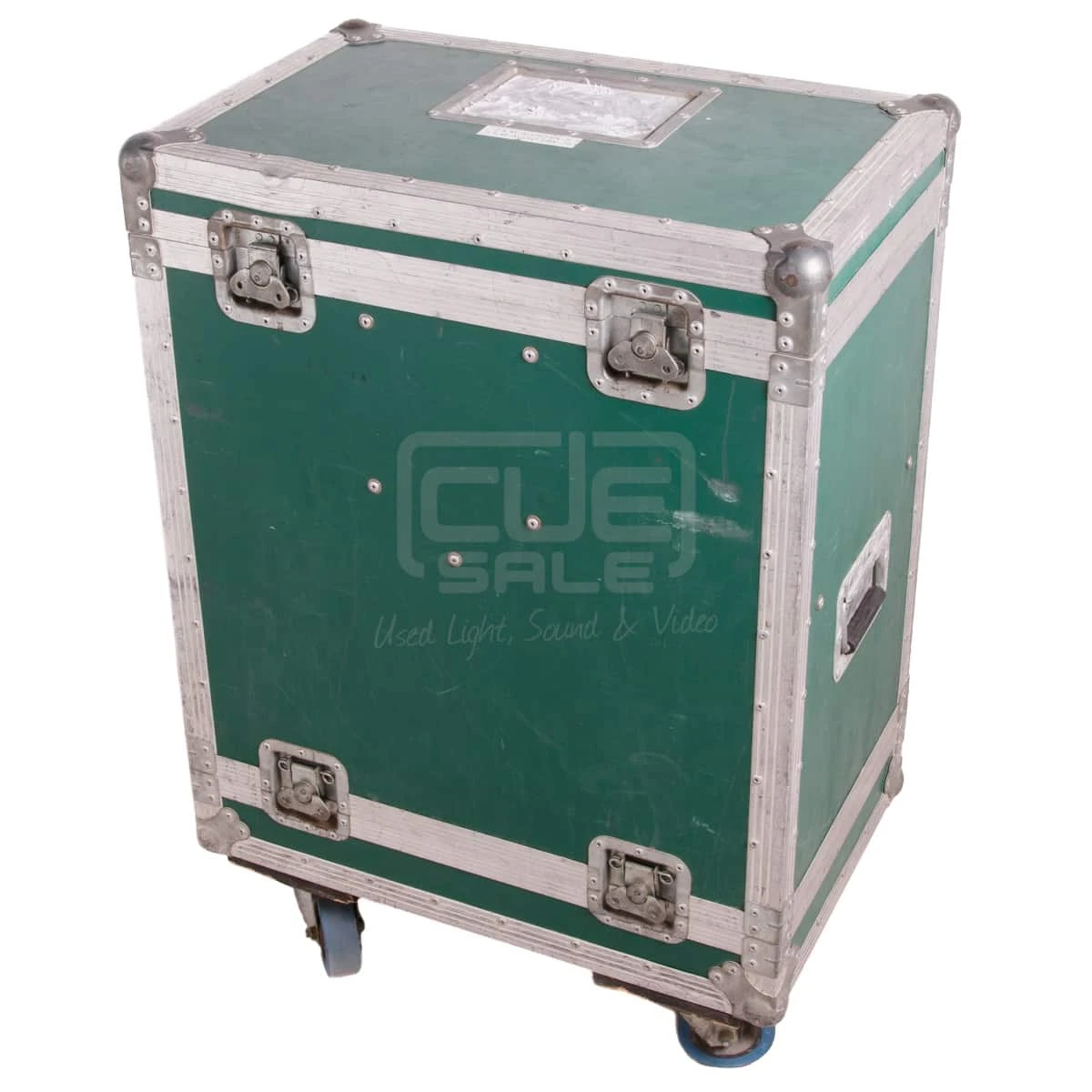

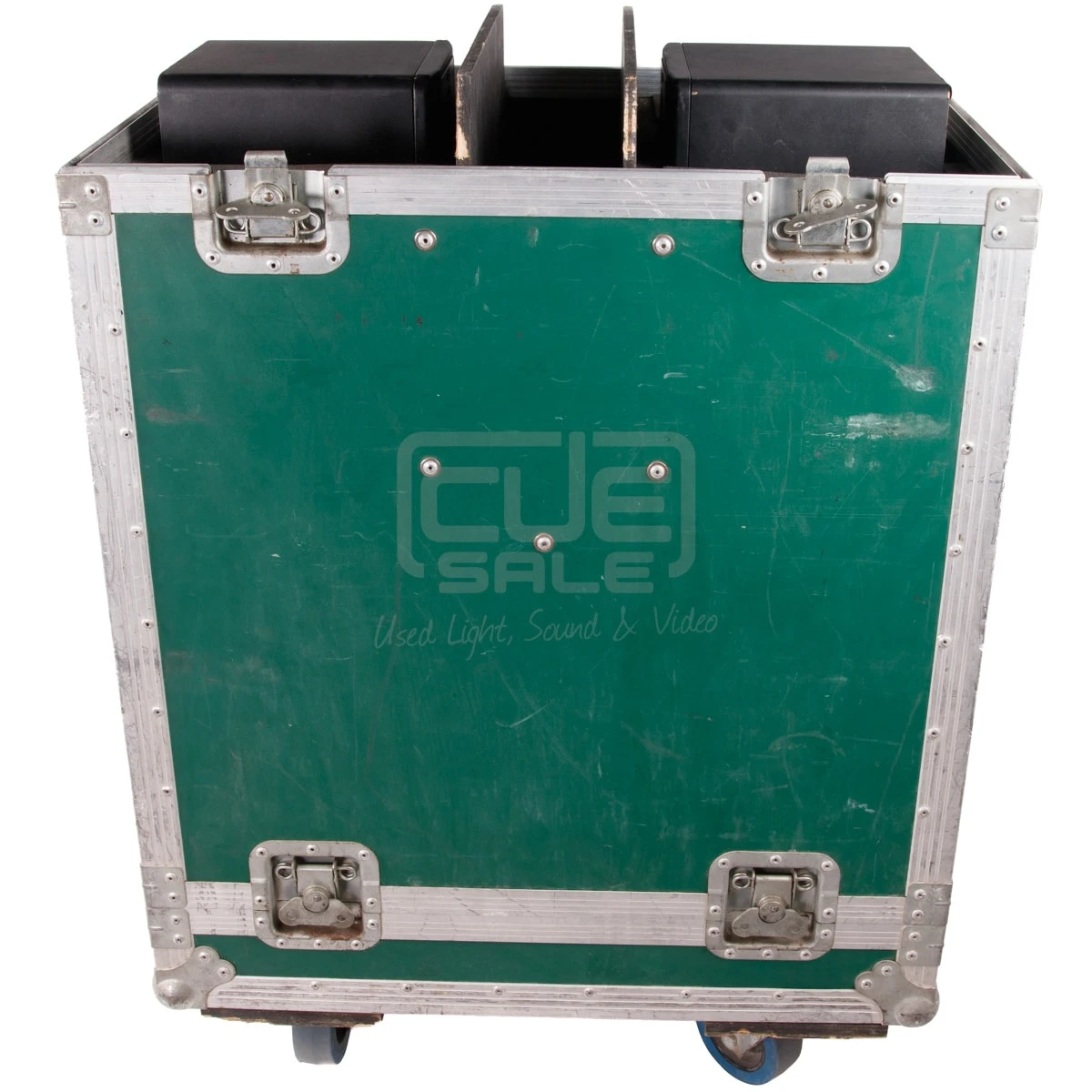

• Flightcase

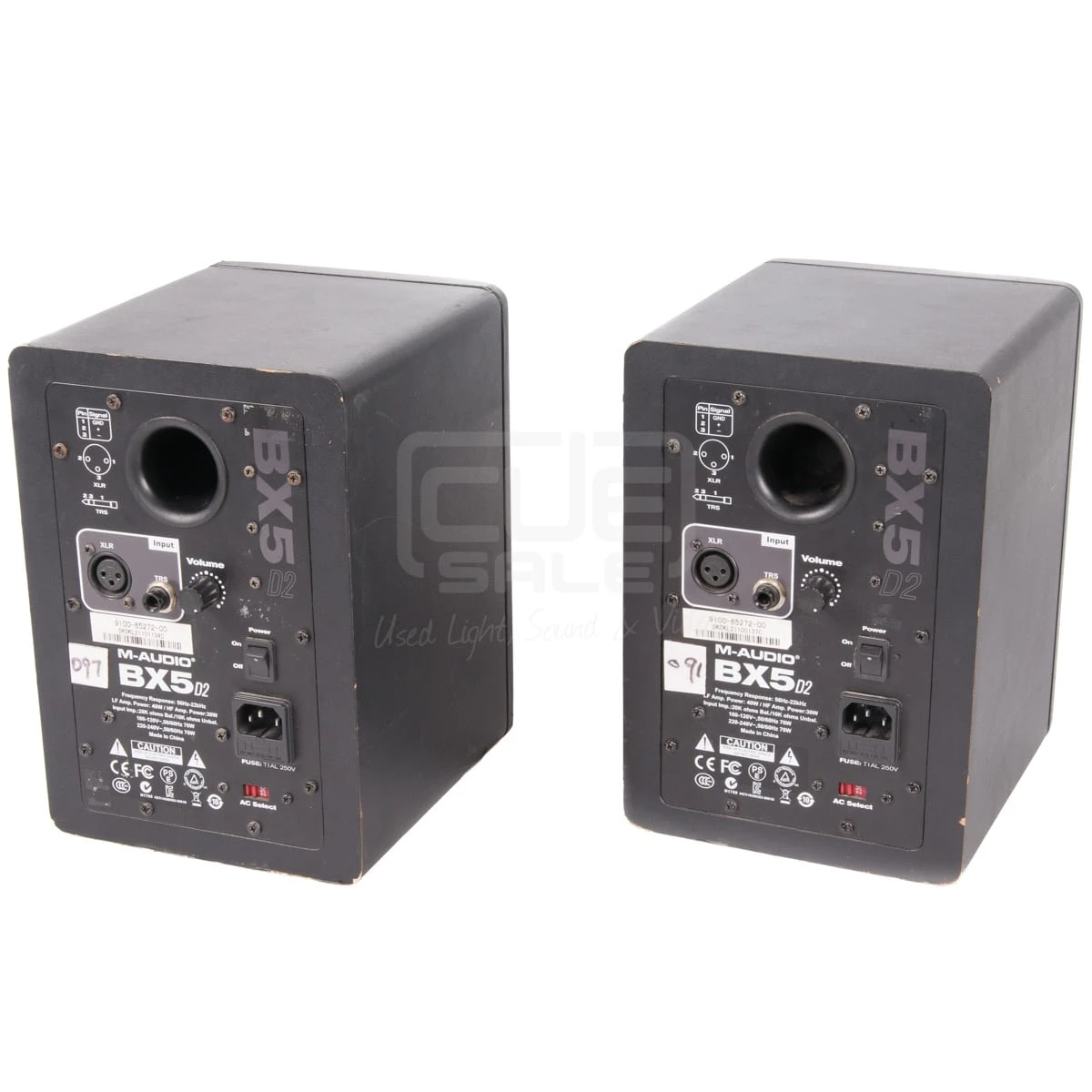

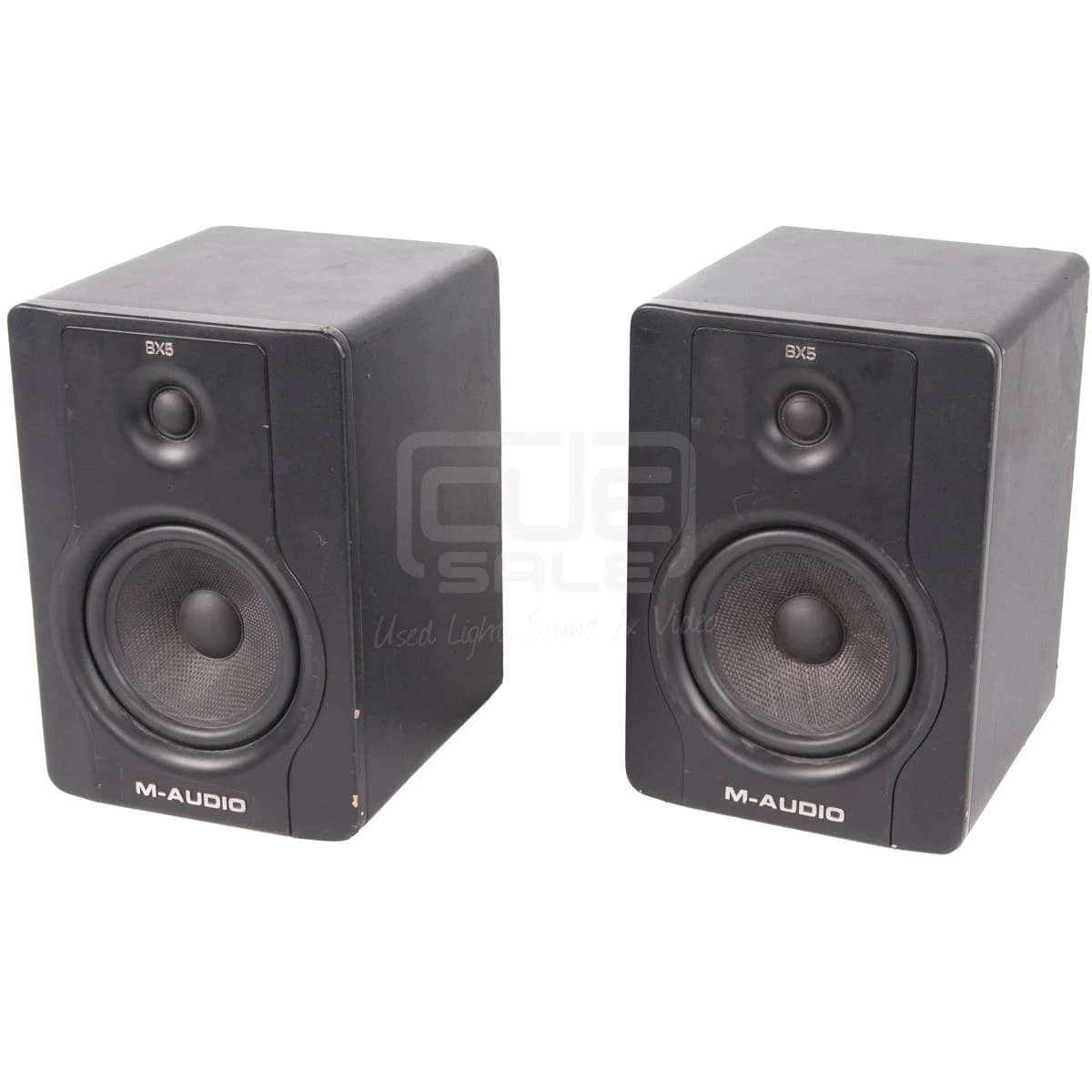

M-Audio BX5 D2 Studio Monitor

The M-Audio® BX studio monitor series is trusted by more musicians and recording professionals than any other. Now, the BX5 D2 monitors extend the bestsellers’ legacy with an elegant new design inside and out. We leveraged technology from our high-end monitors to extend the frequency response and provide an even more natural listening experience. Custom Class A/B analog amplifiers deliver superior dynamics and tonal accuracy across the frequency spectrum—while the latest-generation woven Kevlar low-frequency drivers and waveguide-loaded silk dome tweeters provide rich, defined sound. With the BX5 D2, you’ll enjoy the utmost accuracy in an engaging listening experience.

Features :

• Bi-amplified design with 70 watts of distributed power for cohesive, accurate sound
• 5” low-frequency drivers with Kevlar cones for rich, defined lows
• 1” high-frequency drivers with natural silk domes and integrated waveguides for smooth, clear highs
• Optimized rear ports for extended low-frequency response
• Magnetic shielding eliminates interference with other electronic equipment
• XLR balanced and 1/4” balanced/unbalanced inputs for connecting mixers, amplifiers, instruments, DJ gear, and more
• Volume control

Specifications :

• Frequency Response: 56Hz-22kHz
• Crossover Frequency: 3 kHz
• Low-Frequency Amplifier Power: 40 watts
• High-Frequency Amplifier Power: 30 watts
• Maximum Signal-To-Noise (Dynamic Range): > 100 dB (typical A-weighted)
• Polarity: Positive signal at + input produce outward LF cone displacement
• Input Impedance: 20 k ohms balanced, 10 k ohms unbalanced
• Input Sensitivity: 85 mV pink noise input produces 90 dBA output SPL at one meter with volume control at maximum
• Power: Factory programmed for either 115V ~50/60 Hz or 230V ~50/60 Hz
• Protection: RF interference, output current limiting, over temperature, turn-on/off transient, subsonic filter, external mains fuse
• Cabinet: Vinyl-laminated MDF
• Size: 7.7” x 7” x 10”; 19.5cm x 17.6cm x 25.2cm
• Weight: 11 lbs./unit; 5 kg.

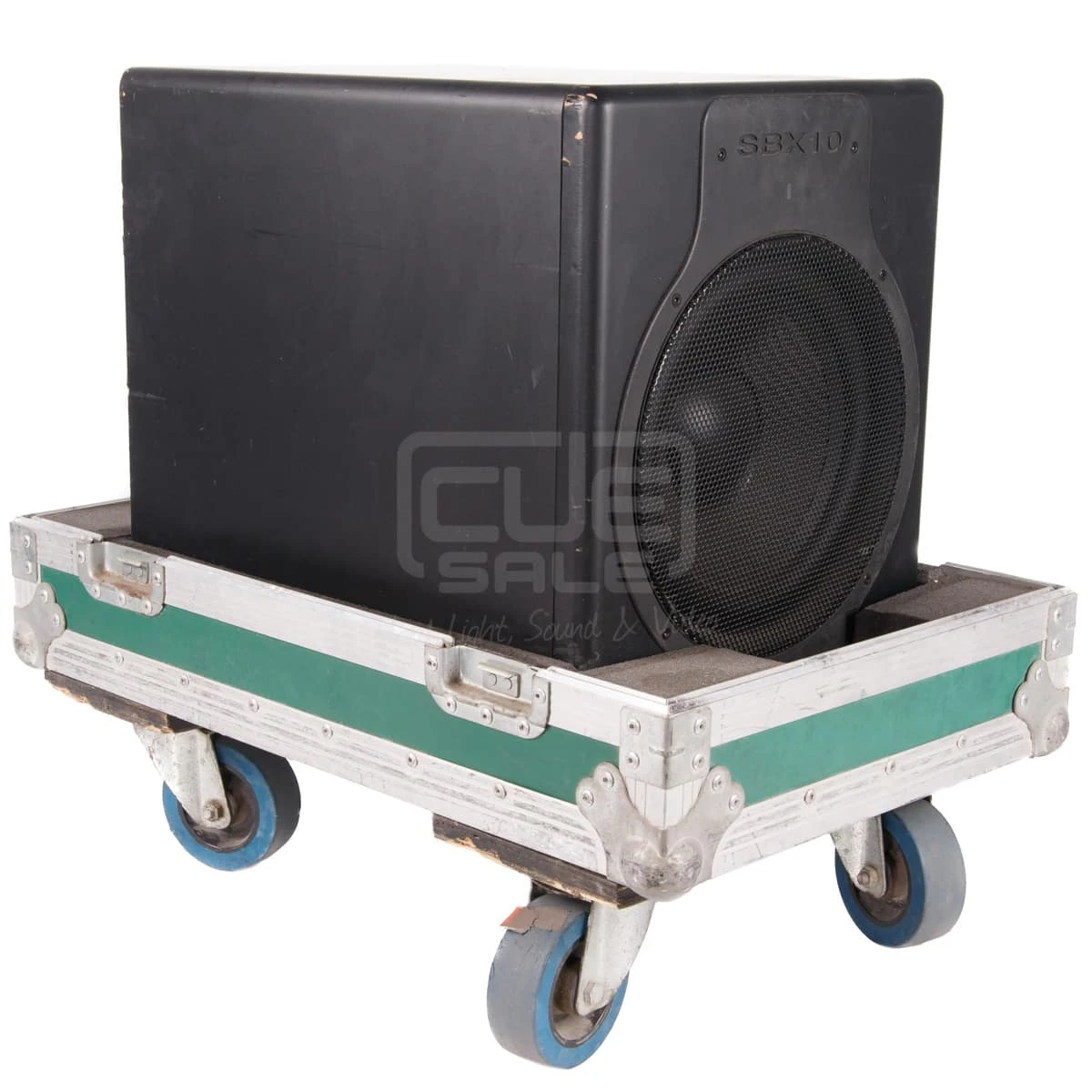

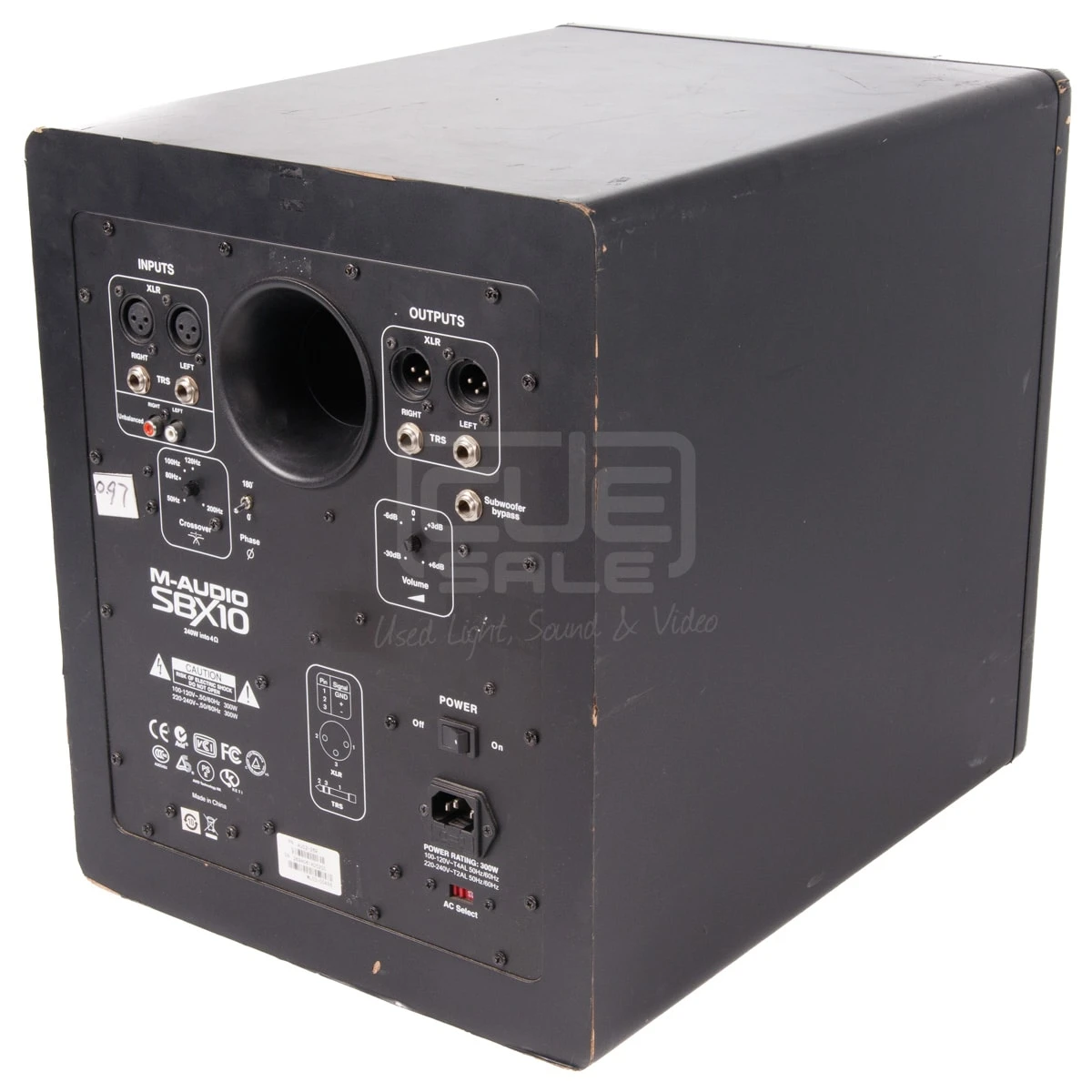

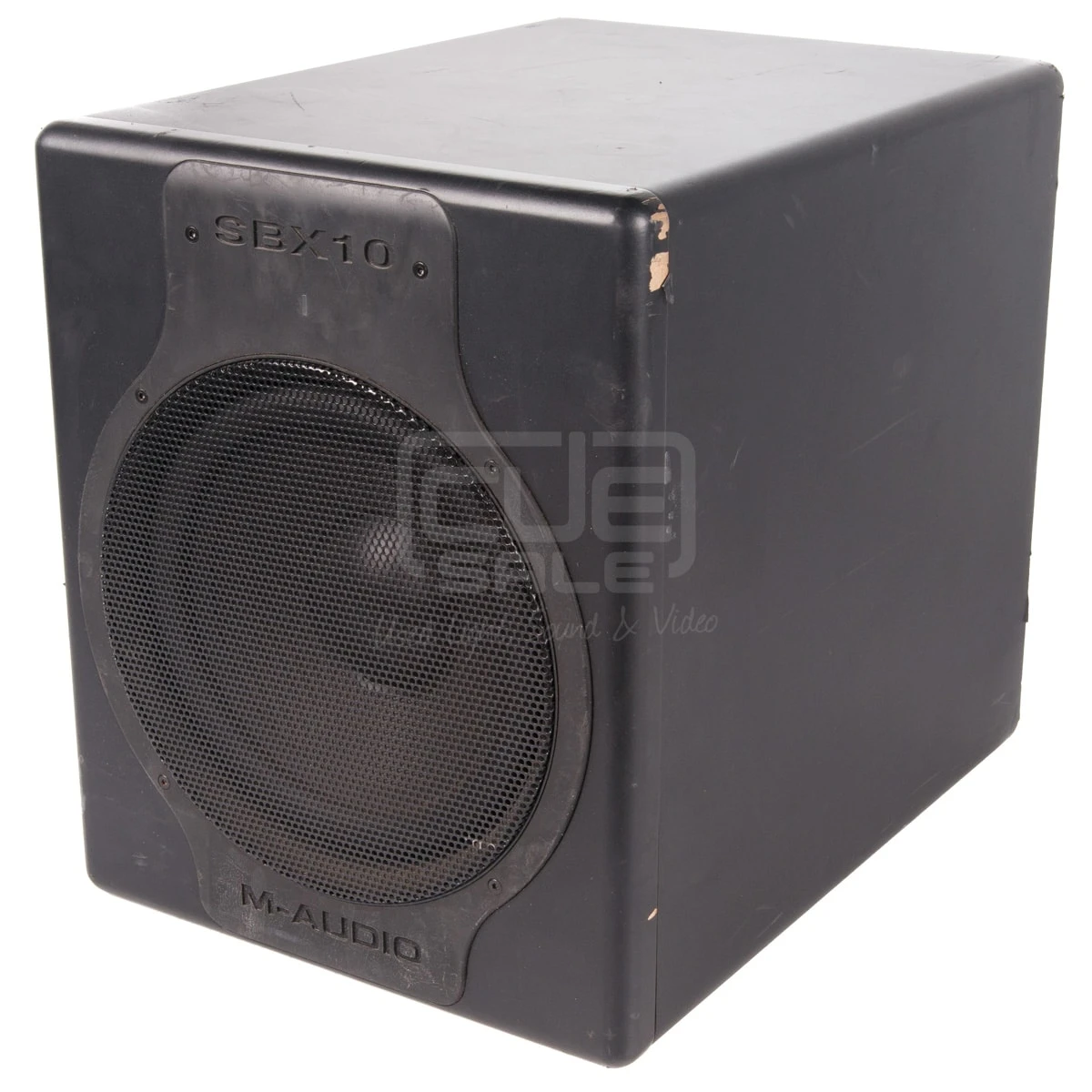

M-Audio SBX-10 240-Watt Professional Active Subwoofer

The M-Audio® SBX10 active subwoofer is designed to give your monitoring system some serious low end. The SBX10 delivers tight, clean bass response down to 20Hz—revealing the extreme low frequencies in your music so you can make accurate mixing decisions. Comprising a 10” fiberglass/paper composite driver, a 240-watt all-discrete internal amplifier, and a variable 50-200Hz crossover, the SBX10 subwoofer delivers unbeatable performance in a compact chassis—great for studios where space is tight. An oversized magnet, high-temperature voice coil, high-density cabinet and a full complement of inputs are just some of the additional components that round out this high-quality design. The unit even includes a bypass footswitch so you can easily judge how mixes will sound with and without a dedicated subwoofer. The SBX10 represents the perfect addition to any studio monitor setup.

Features :

• 10” fiberglass/paper composite cone driver with oversized magnet and high-temperature 2” long-throw voice coil
• 240-watt Class A/B amplifier with all-discrete transistor design
• Flared rear bass-reflex port
• Variable 50-200Hz crossover
• 20-200Hz low frequency response
• Adjustable gain (-30dB to +6dB)
• Balanced/unbalanced XLR, balanced/unbalanced 1/4” TRS and RCA inputs
• Balanced/unbalanced XLR and balanced/unbalanced 1/4” TRS outputs allow easy setup of 2.1 monitoring systems
• Includes subwoofer bypass footswitch
• Phase switch (0°/180°)
• Over-temperature protection
• Vinyl-covered high-density internally braced 3/4” MDF cabinet with 1” front and back baffles
• Removable grill

Specifications :

• Type: Bass-reflex active powered subwoofer
• Woofer Driver: 10-inch composite (treated paper/fiberglass) cone with high-temperature voice coil and damped rubber surround
• Frequency Response: 20-200Hz (-3dB)
• Crossover: HP/LP linked filter sweepable from 50-200Hz; 24dB/octave 4th-order alignment
• Input Sensitivity: 80mV pink noise input produces 100dBA output SPL at one meter with volume control at maximum
• Adjustable Gain: (-30dB to +6dB)
• Amplifier: 240 watts average power into 4, discrete transistor design
• Signal-To-Noise Ratio: 96dB (A-weighted)
• THD at Rated Power, Mono Mode: 0.019%
• Inputs: Two XLR balanced/unbalanced inputs; two TRS balanced/unbalanced inputs; two unbalanced RCA
• Outputs: Two XLR balanced/unbalanced outputs for satellites; two TRS balanced/unbalanced outputs for satellites
• Controls: Volume/gain control, phase inverse switch, variable crossover control, subwoofer bypass footswitch jack
• Input Impedance: 20k ohms balanced, 10k ohms unbalanced
• Maximum Input Level: +20dBU
• Protection: Over temperature, turn-on/off transient, subsonic filter, external mains fuse, DC protection, over current protection
• Indicator: Power on (blue) or standby/bypass (red)
• Power Requirements: Dual-voltage (selectable by rear-panel switch) for either 100-120V/~50/60Hz or 220-240V/~50/60Hz; powered via detachable grounded IEC cable
• Cabinet: Vinyl-laminated high-density internally braced 3/4” MDF cabinet with 1” front and back baffles
• Dimensions: 15.5 in. (h) x 13 in. (w) x 17.25 in. (d); 39.4 cm (h) x 33 cm (w) x 43.8 cm (d)
