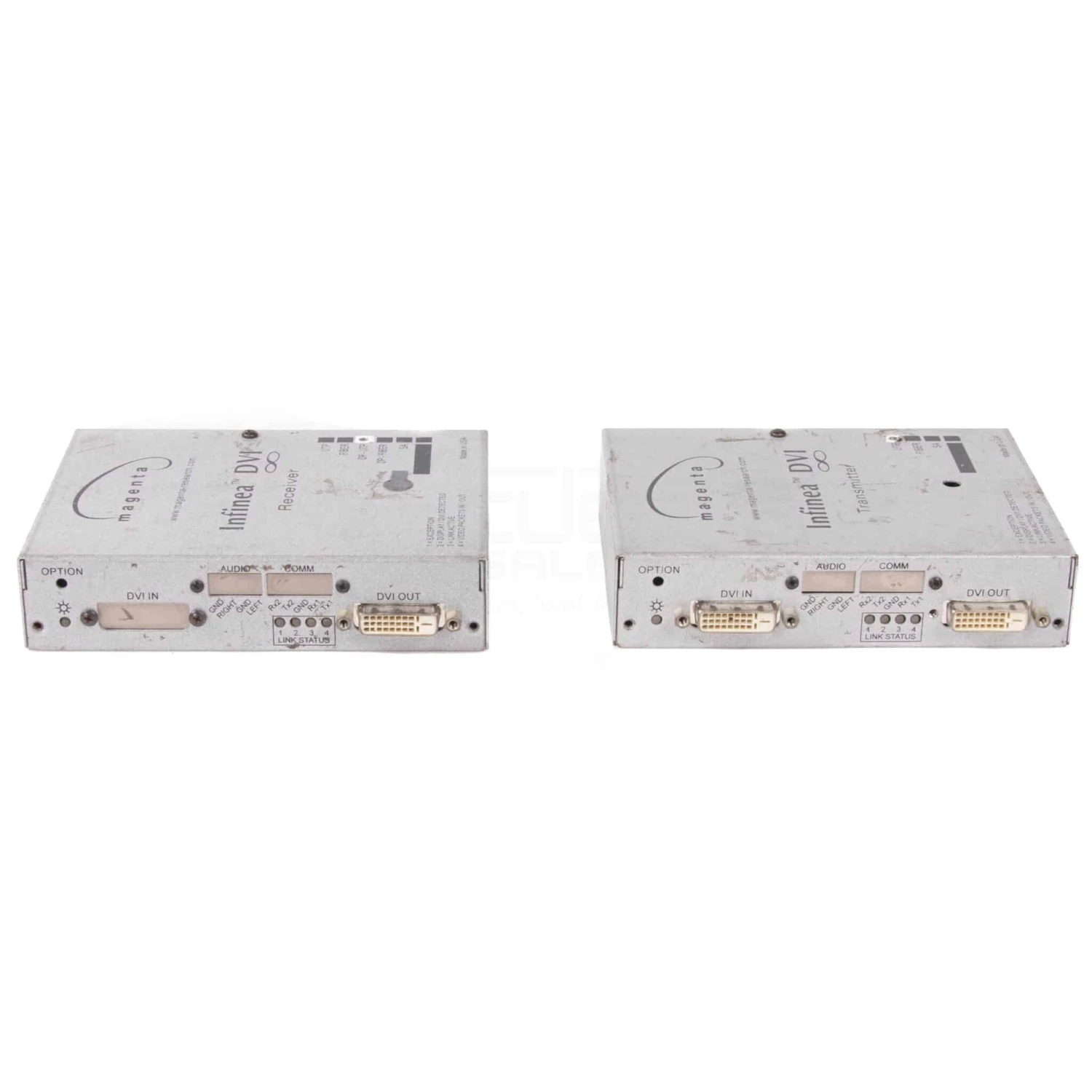

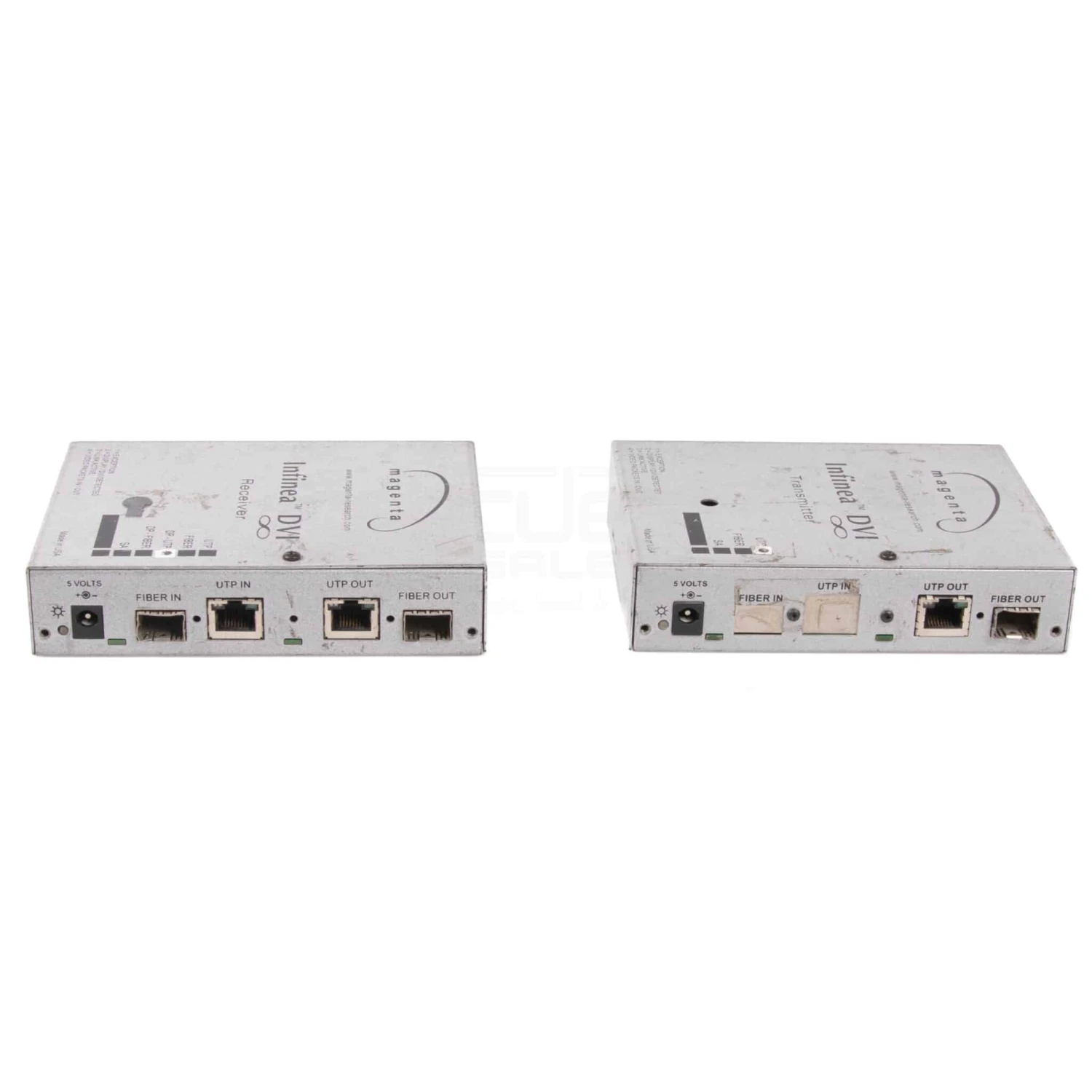

Magenta Infinea DVI Transmitter Receiver SET

Magenta Infinea DVI Transmitter Receiver SET

Magenta’s Infinea™ DVI UTP Video series extends DVI-D signals over ordinary Category 5 or Category 6 cable. Includes psu.

Specifications :

• Video Support : DVI-D VESA formats to UXGA (1600×1200 @ 60Hz)
• Maximum Resolution and Refresh Rate :
  • CAT5/5E : At 500 ft. (152 m) or less, 1600 x 1200 at 70 Hz
  • CAT6 : At 600 ft. (183 m) or less, 1600 x 1200 at 70 Hz
• Bandwidth : 1.65Gbps, single link
• Input Video Signal : 1.2 volts p-p
• Connectors :
  • Transmitter (2) DVI-D male, (1) RJ-45
  • Receiver (1) DVI-D male, (1) RJ-45
• Temperature Tolerance : Operating: 32 to 104°F (0 to 40°C);
• Storage : -4 to +140°F (-20 to +60°C)
• Humidity Tolerance : Up to 80% noncondensing
• Enclosure : Steel
• Power : +5 VDC @ 1A max
• Consumption : 5.0 watts maximum
• Size : 1.2″H x 4.1″W x 5.5″D (3.0 x 10.4 x 14.0 cm)
• Weight : 1.0 lb. (0.45 kg)
