Martin Audio Blackline S12+ Compact, Sub-bass System

Martin Audio Blackline S12+ Compact, sub-bass system

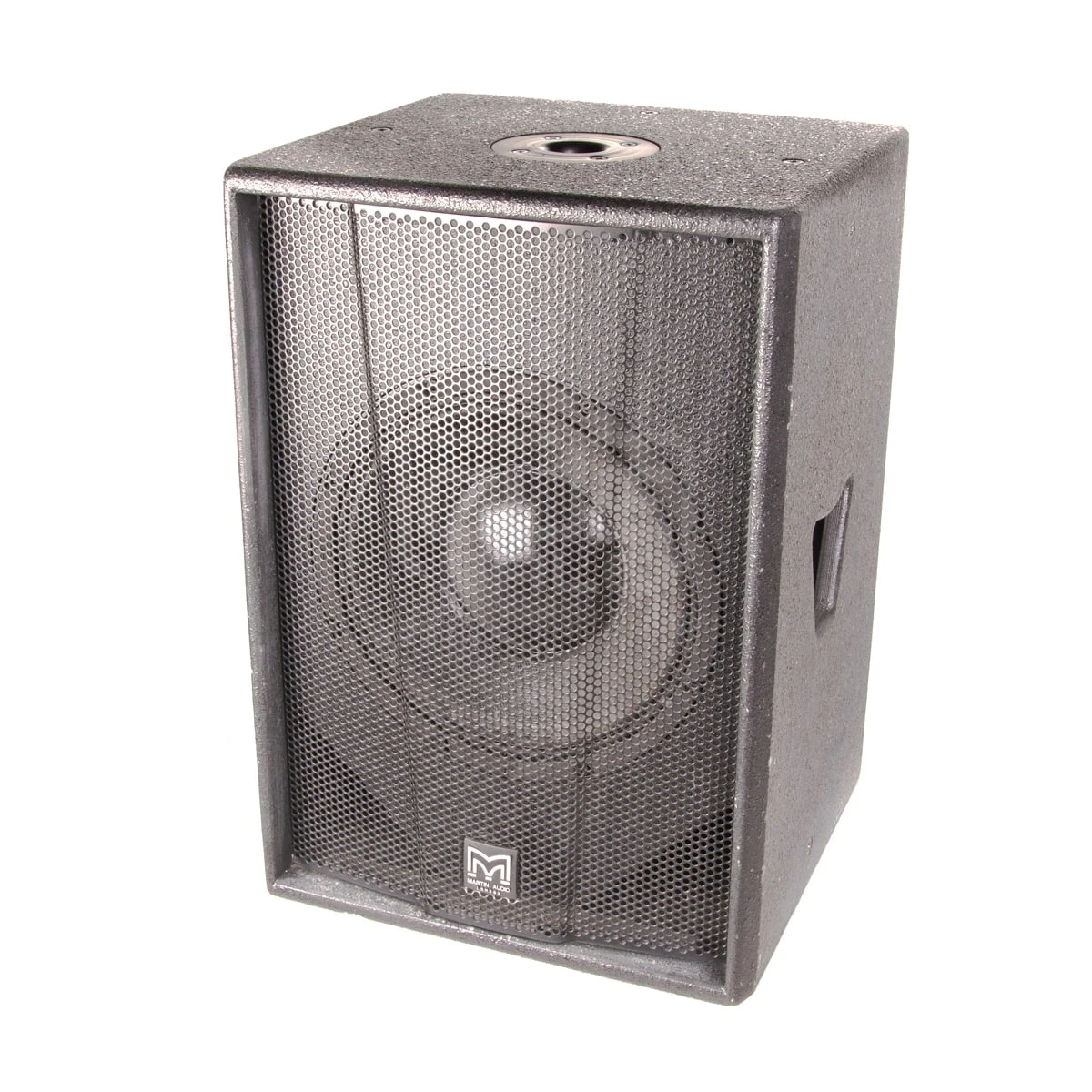

The Blackline S12+ is an extremely compact sub-bass system. It has been designed for use with the F8+ and F10+ full-range loudspeakers in situations where extended low frequency output and increased system headroom are required. When used with an F8+ or F10+, it will extend the response of the complete system to below 50Hz.
It features a new, high power 12” (300mm)/3” (75mm) voice coil, long excursion drive unit reflex loaded in a birch plywood enclosure. The driver has a water resistant cone and inside/outside coil windings for improved heat transfer. The S12+ can operate in either passive add-on mode using its own internal switchable passive network or may be used actively with an M3+ or DX1.5 controller. In the active configuration, the controller will provide crossover, EQ and limiter functions for the S12+ and F8+/F10+ combination.
The S12+ is provided with a top hat fitting that can be used to pole mount an F8+ or F10+ above the enclosure.

Features:
◗ Very compact sub-bass system
◗ Long excursion 12” (300mm) driver
◗ Active/passive operation
◗ Top hat fitting for pole mounting F8+/F10+

Applications:
◗ Club sound reinforcement
◗ Theatre sub-bass
◗ AV presentations

Technical specifications:
FREQUENCY RESPONSE : 52Hz-150Hz ± 3dB / -10dB @ 43Hz
DRIVERS : 12” (300mm)/3” (75mm) voice coil LF driver
RATED POWER : 400W AES, 1600W peak
RECOMMENDED AMPLIFIER : MA3.0
SENSITIVITY : 100dB (half space)
MAXIMUM SPL : 126dB continuous, 132dB peak (half space)
NOMINAL IMPEDANCE : 8 ohms
CROSSOVER : 120Hz active/passive low pass filter
ENCLOSURE : 55 litre, multi-laminate birch ply
FINISH : Textured black paint
PROTECTIVE GRILLE : Black perforated steel

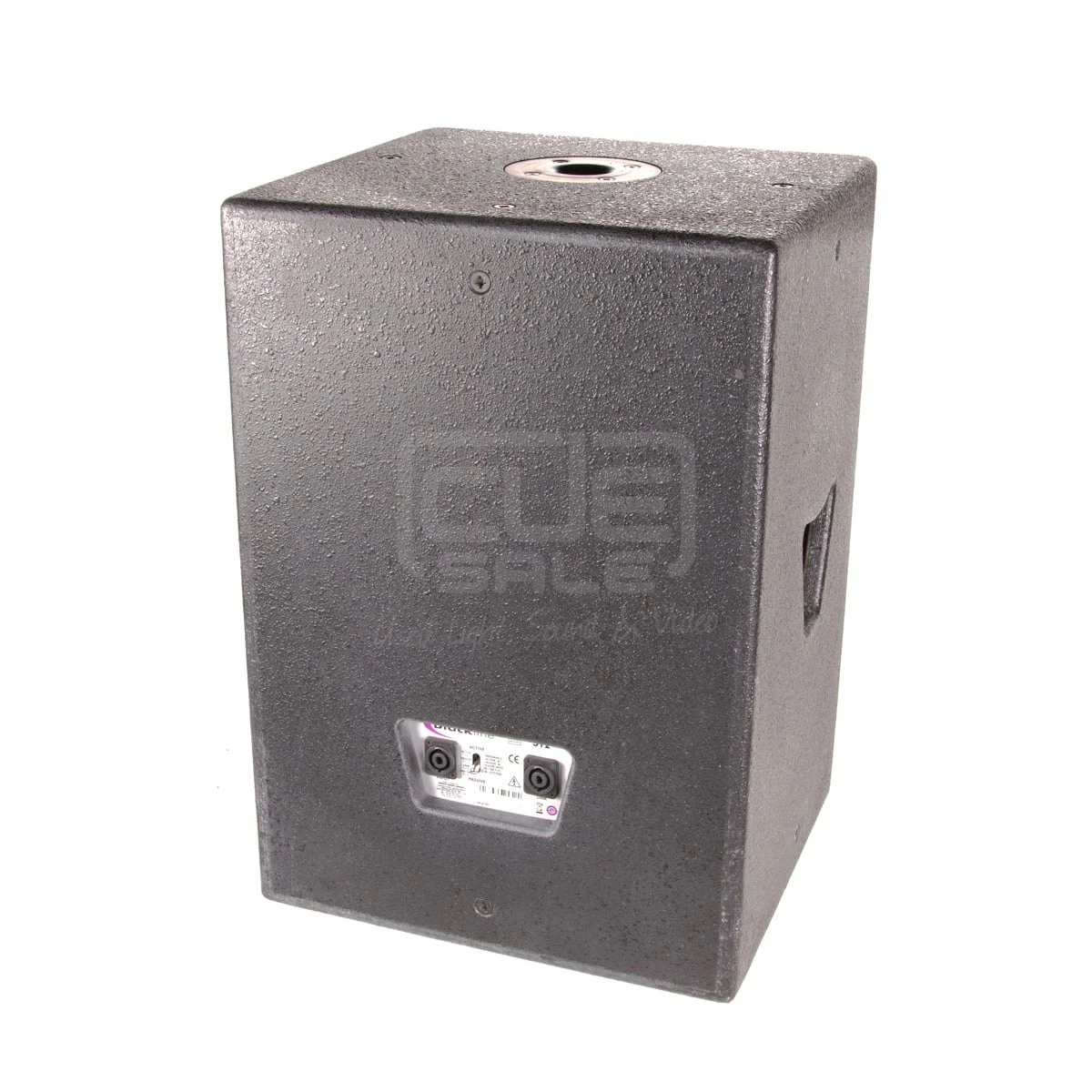

CONNECTORS : 2 x Neutrik NL4
PIN CONNECTIONS : LF+,- : 1+,1- , Link thro’: 2+,2-

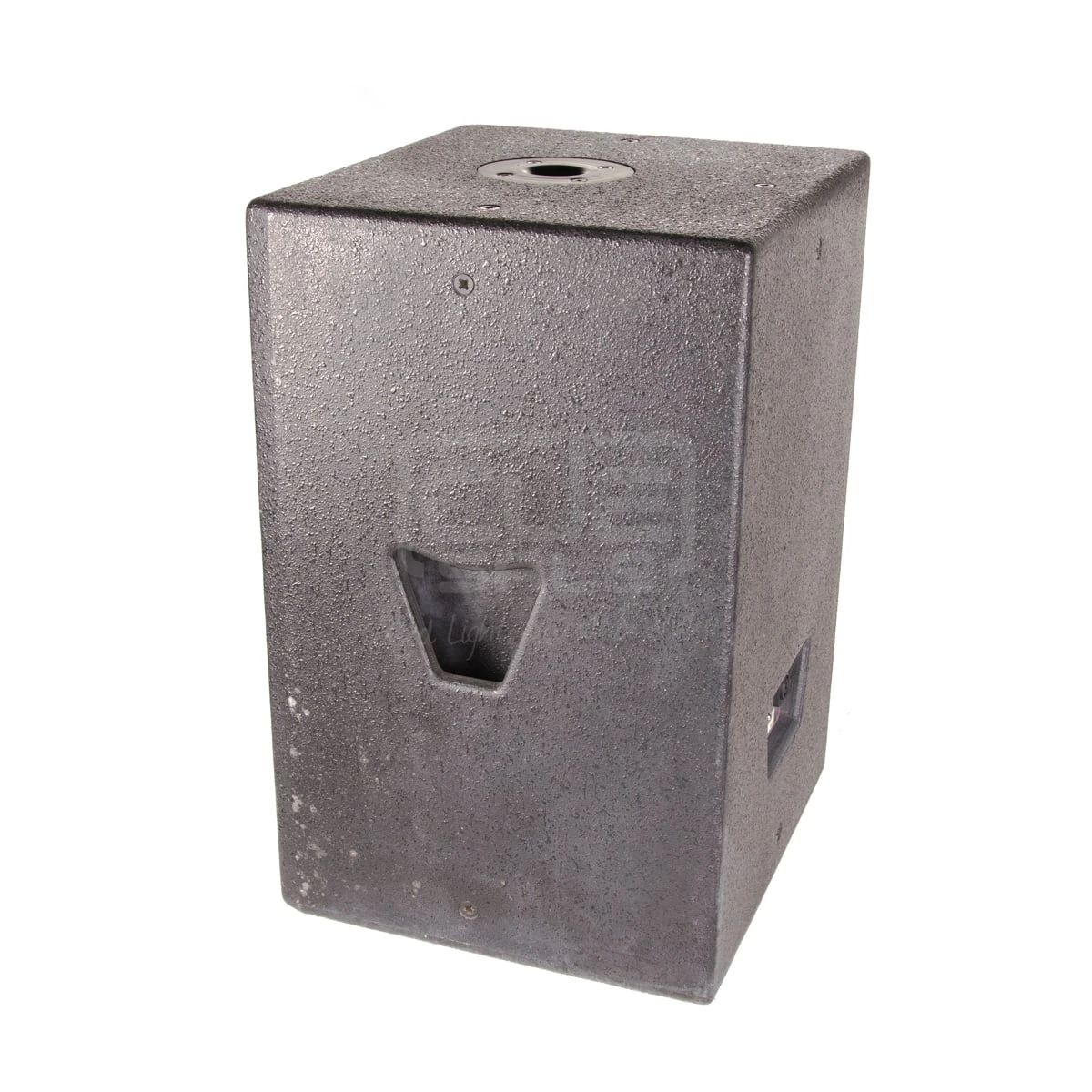

FITTINGS : 1 x mounting pole socket, 2 x pocket handles
