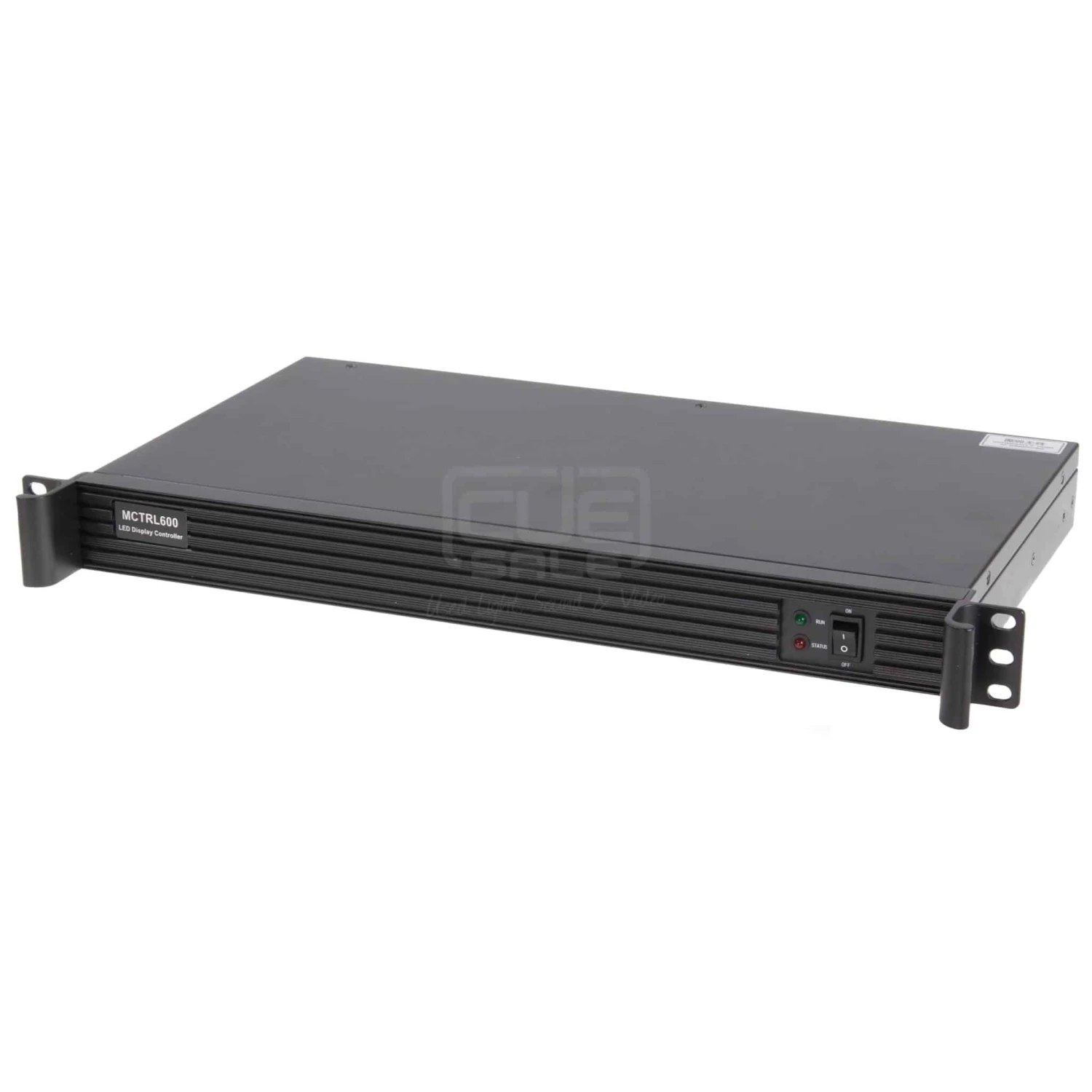

Novastar MCTRL600 LED Display Controller

Novastar MCTRL600 LED Display Controller

B-Stock and Used available, please select. B-Stock includes cabling.

Features :

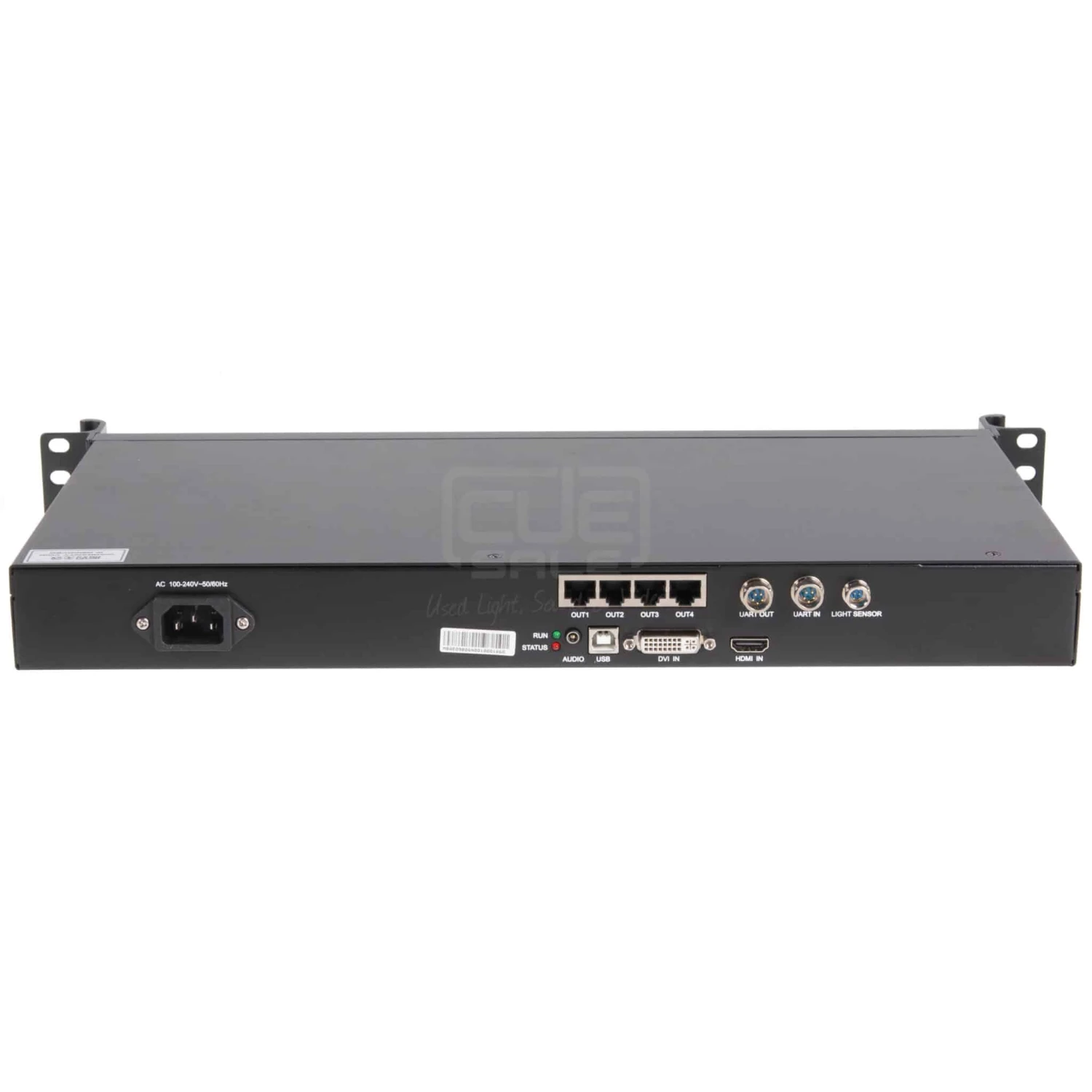

• 3 types of input connectors :
  • 1x SL-DVI
  • 1x HDMI 1.3
  • 1x AUDIO
• 4x Gigabit Ethernet outputs
• 1x light sensor connector
• 1x type-B USB control port
• 2x UART control ports. They are used for device cascading. Up to 20 devices can be cascaded.
• Pixel level brightness and chroma calibration. Working with NovaLCT and calibration platform, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.

Video Source Features :

	Bit Depth	Sampling Format	Max. Input Resolution
Input Connector :
Single-link DVI	8bit	RGB 4:4:4	1920×1200@60Hz
	10bit/12bit	RGB 4:4:4	1440×900@60Hz
HDMI 1.3	8bit	RGB 4:4:4	1920×1200@60Hz
	10bit/12bit	RGB 4:4:4	1440×900@60Hz
