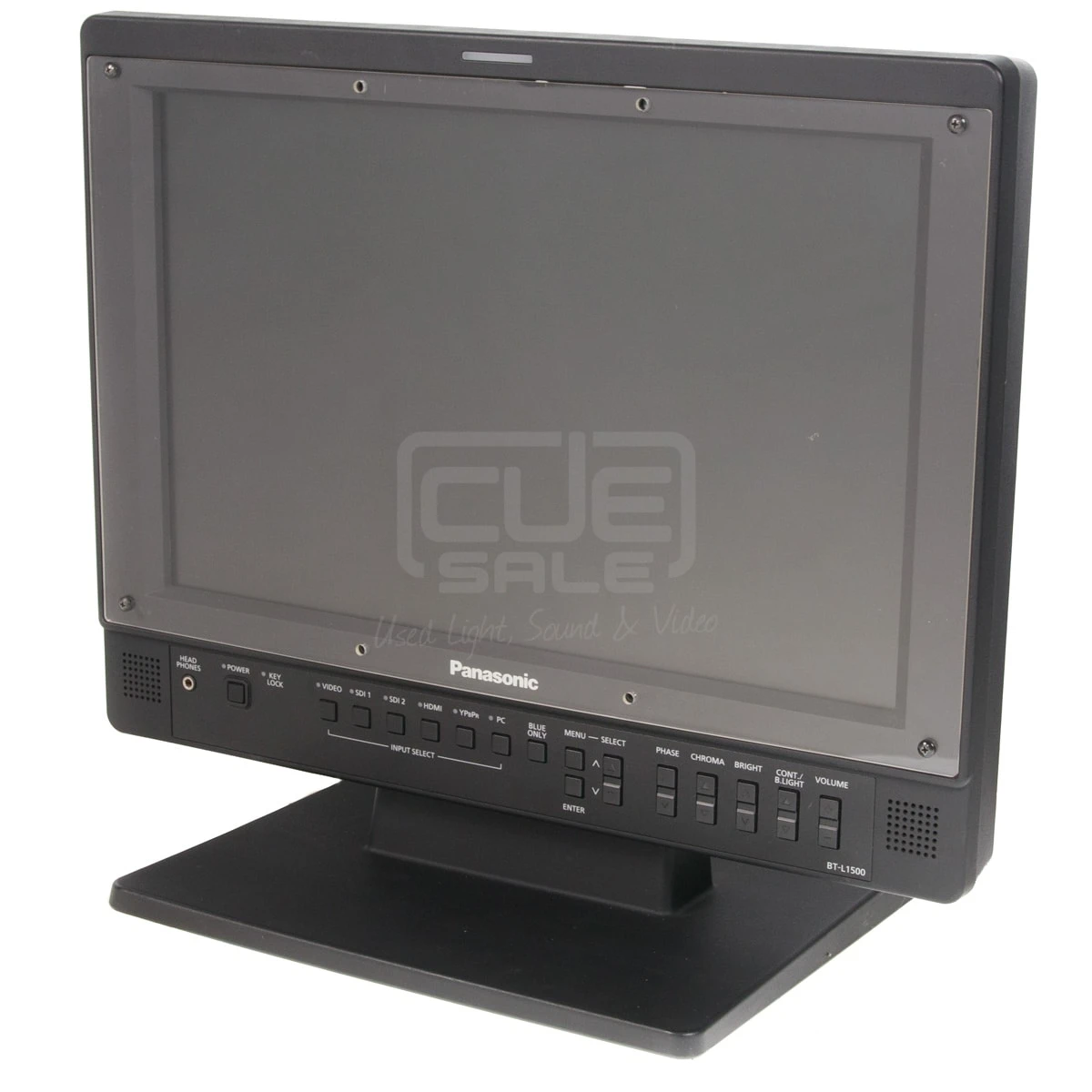

Panasonic BT-L1500EJ 15.4″ LCD Production Monitor

Panasonic BT-L1500EJ 15.4″ LCD Production Monitor

The Panasonic BT-L1500 LCD monitors achieve high cost-performance while combining the superb operation, versatile functions and high-level specifications that broadcasters and image creators demand. They include two HD SDI inputs and an HDMI input as standard features, and display high-quality, multi-format HD/SD images on their high-definition, high-contrast LCD panels. They also feature functions and specifications that are essential for broadcast and production, including a tally lamp, markers and GPI. The 391.2 mm (15.4 inches) BT-L1500 displays WXGA (1280 x 800) images.

Specifications :

• Panel Size & Aspect Ratio : 391.2mm (15.4 inches) of effective display area 16:10
• Resolution : 1208 x 800 (WXGA)
• Display Colours : Approx 16,200,000 colours
• Viewing Angle : 160 degrees of horizontal, 140 degrees of vertical (contrast more than 10:1)
• Video Input :
  • Video : BNC x 1
  • Y/PB/PR : BNC x 3
  • SDI : BNC x 2
  • HDMI : HDMI (type A) x 1 (HDCP supported, VIERA Link not supported)
  • PC : D-SUB 15 pin x 1
• Audio Input :
  • HD SDI : SMPTE299M compliant, 48 kHz sampling, synchronous/asynchronous supported, 8 channels
  • SD SDI : SMPTE272M compliant, 48 kHz sampling, synchronous supported, 4 channels
  • HDMI : Embedded Audio supported, Analog Audio: Pinkjack x 2 (stereo)
• Speaker Output : 0.5W + 0.5W
• Headphone Out : M3 stereo mini jack x 2, 32 ohms
