Pixled F6 Complete LED Screen 10,00m2 Incl. Rigging / Flightcases

Pixled F6 Professional LED Video Screen, complete package of 10m2 (40 Tiles) UTP Version

This complete set is including:

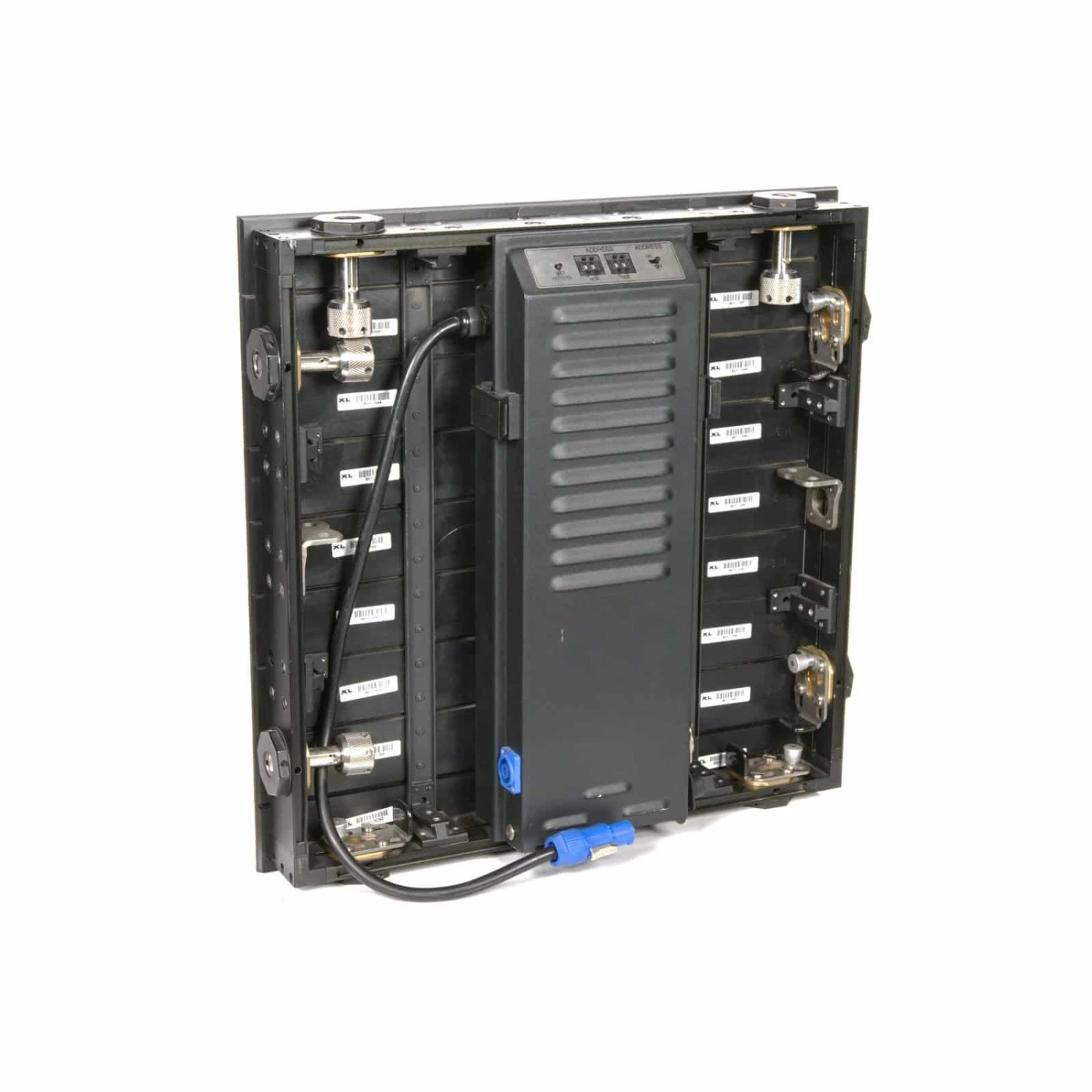

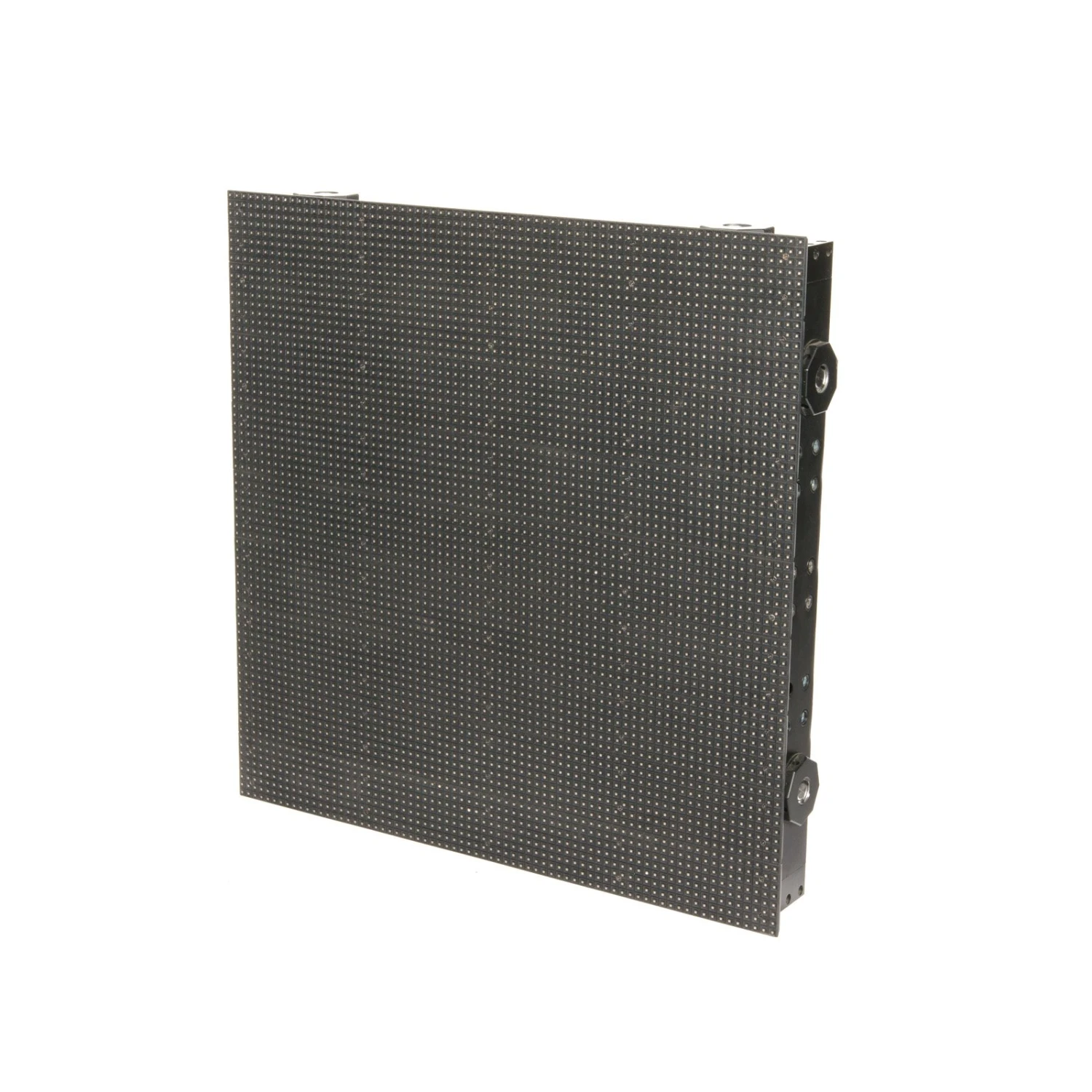

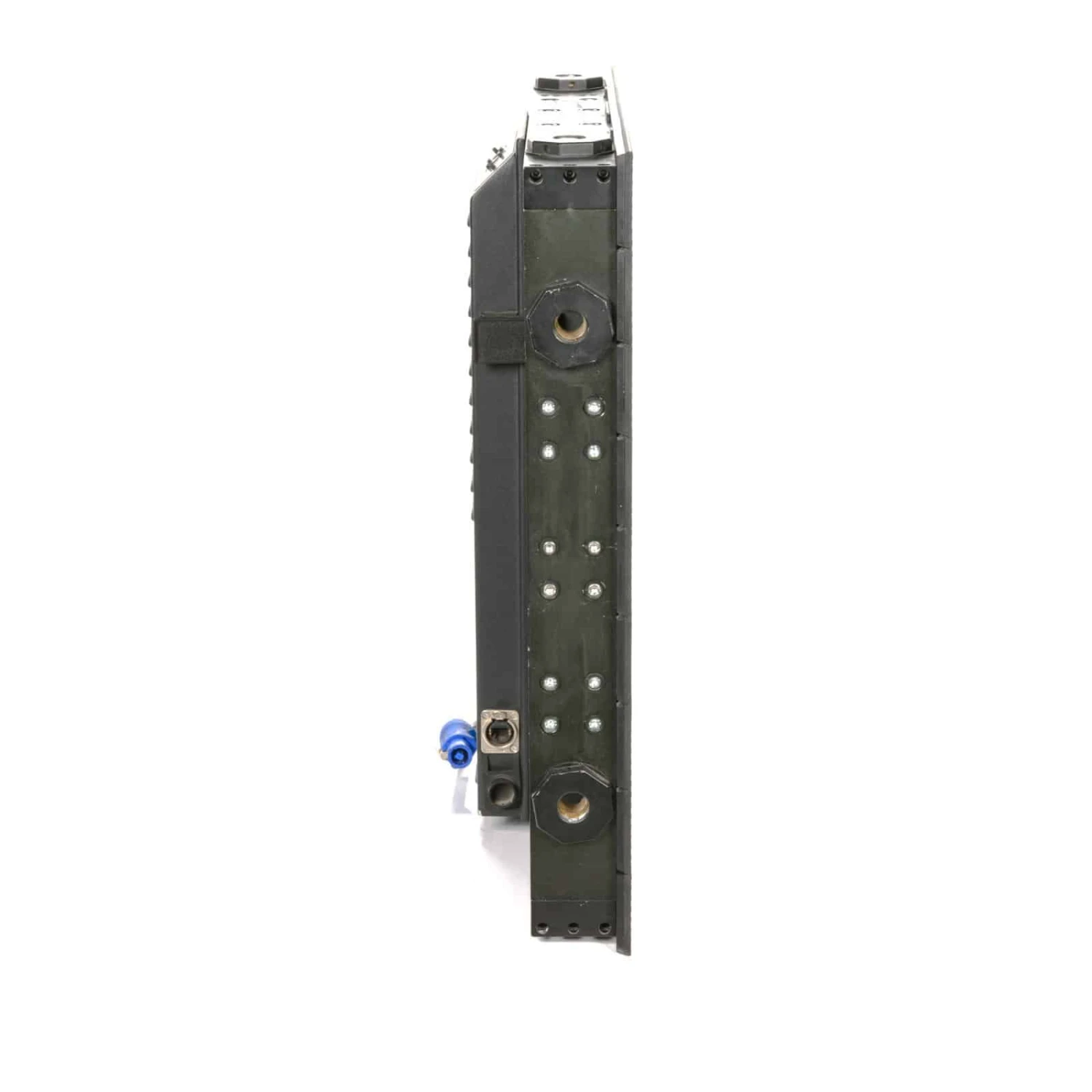

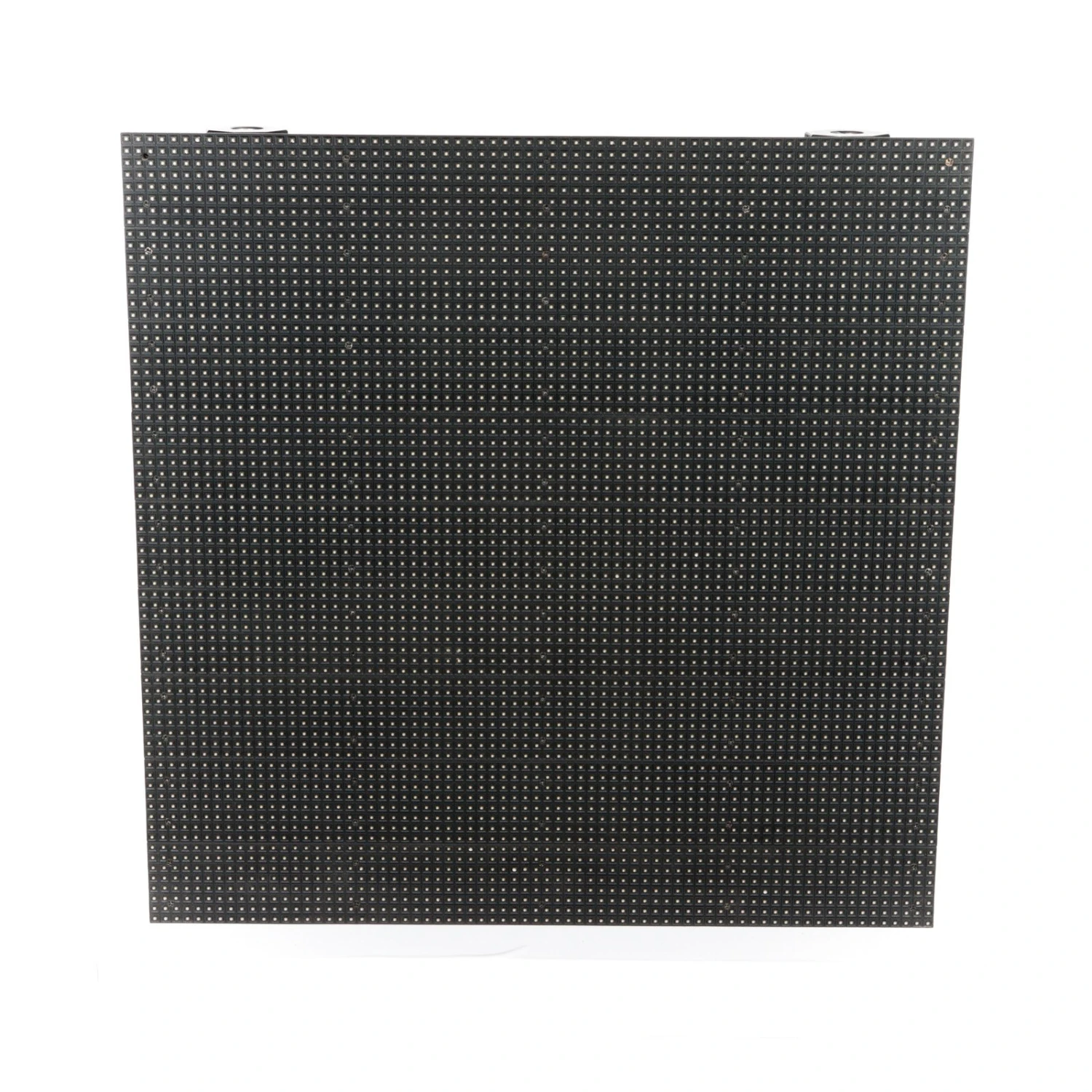

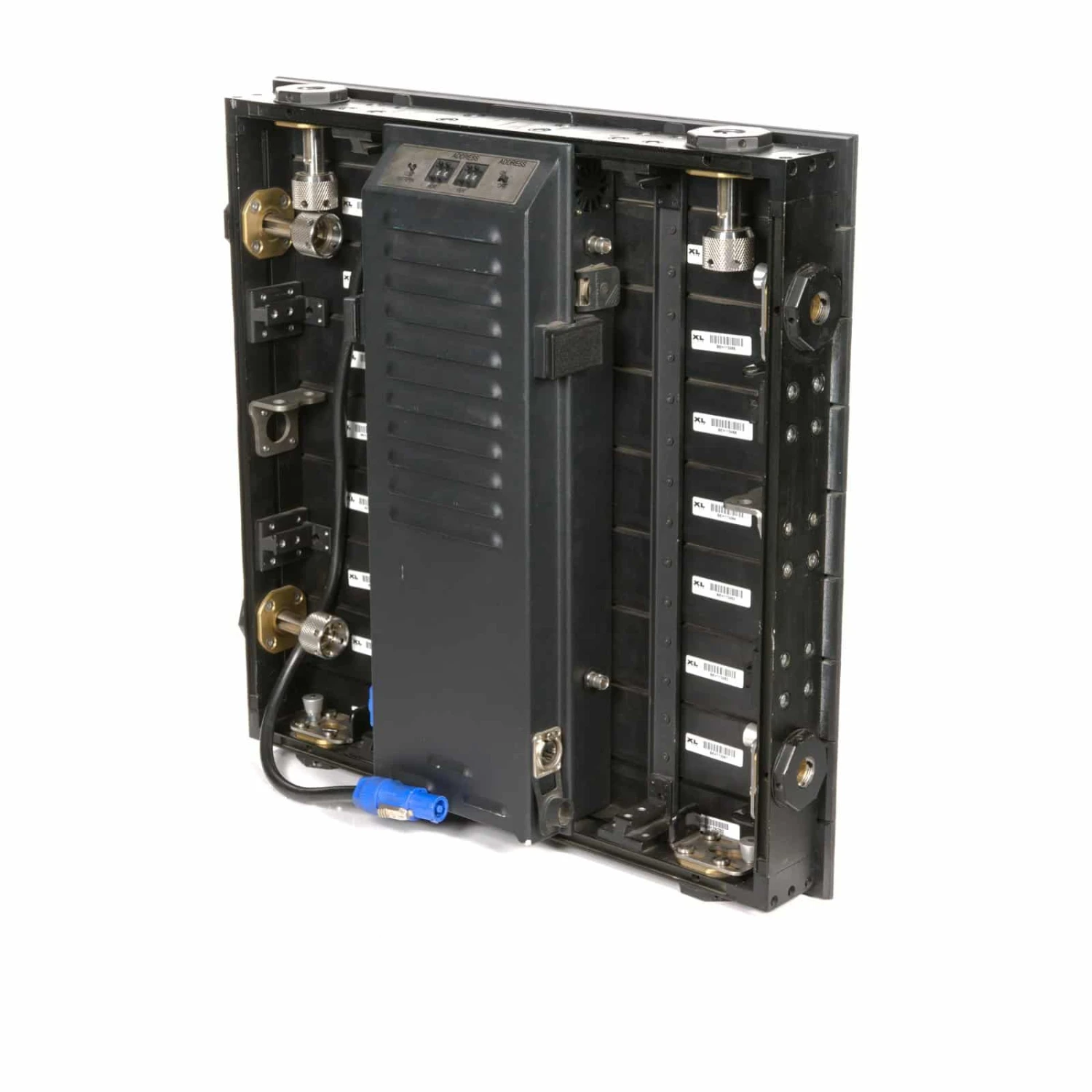

• 40x F6 Panel (UTP Version)

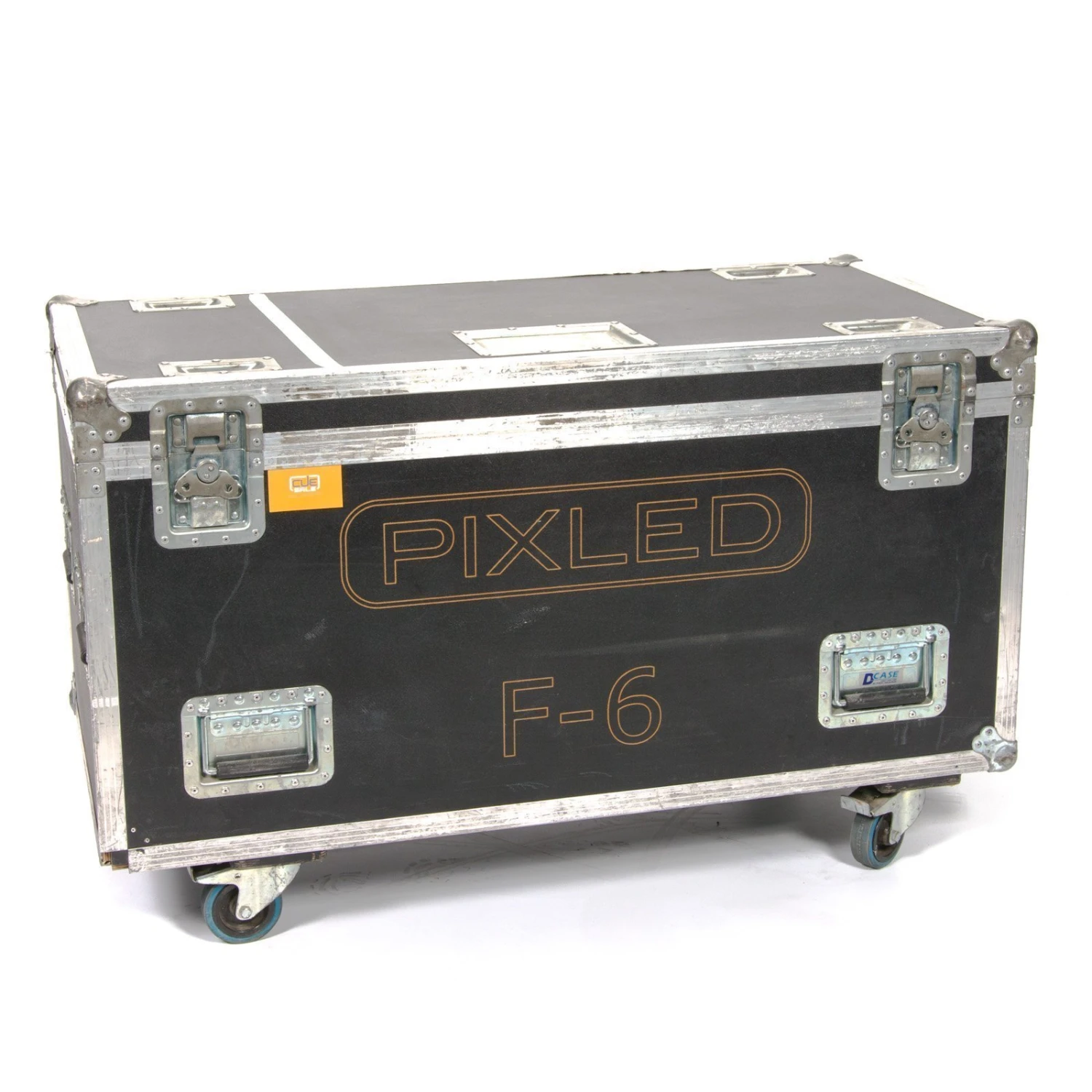

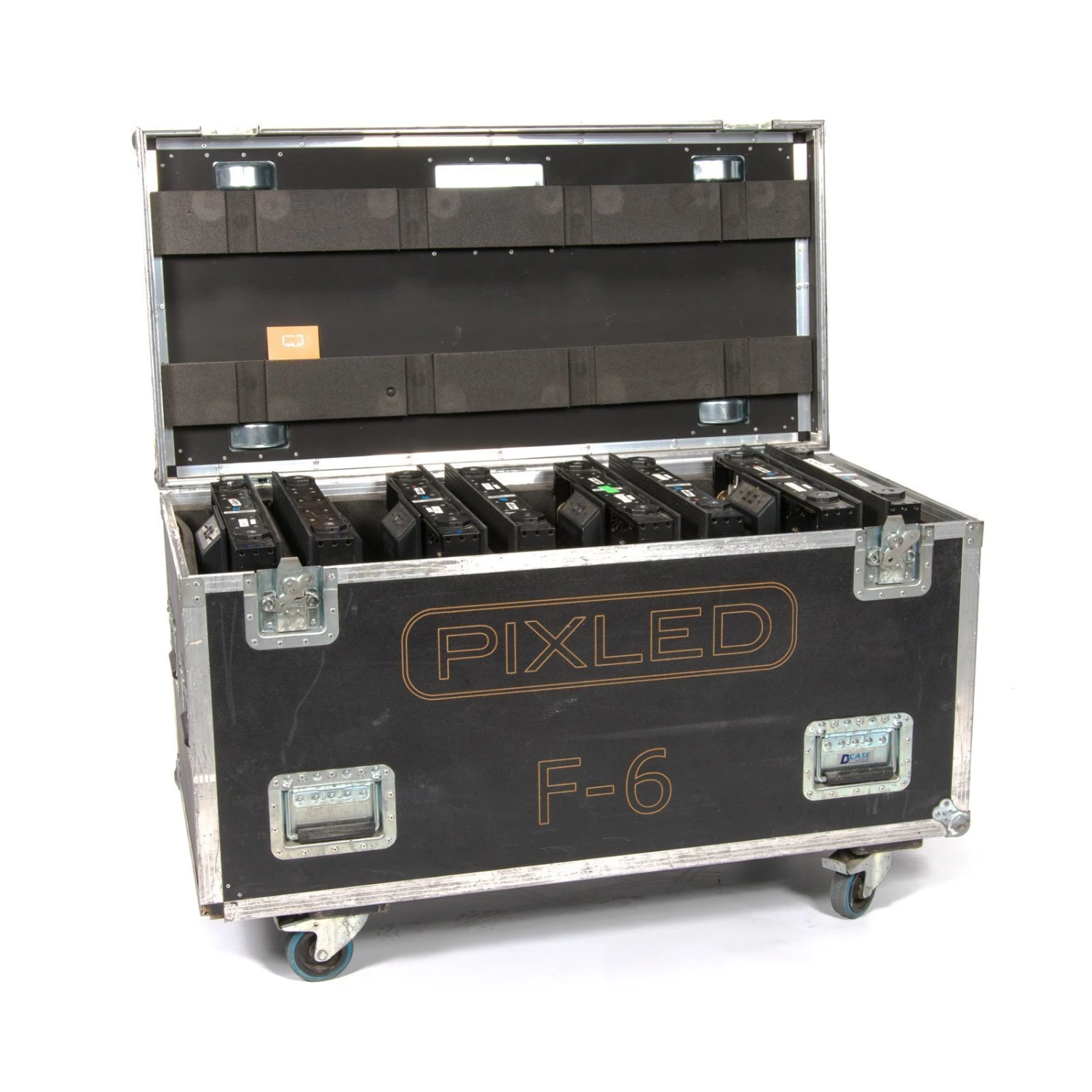

• 5x Flightcase on wheels
• 1x Processor for pixled F6 (DBstar)
• Select variation: Flybar or Stack frame (8mtr in total)

The F-6 has 4000 NIT brightness has incredible impact it’s nearly double the brightness of other comparable products, and is suitable for indoor use.

Each F-6 module measures an expedient 50 x 50 cm in size with a thickness of just 6.3 cm, giving an ultra light weight display of 34Kg per square metre (8.5 Kg per tile). It’s therefore an ideal solution for applications were weight loading is limited, and the maximum creative freedom is needed. Apart from all the standard features offered by F-6 like the use of black SMD’s, the ultra-compact, creatively sized tiles combined with precision mechanics and robust engineering means that we have added a new tool being demanded by the market.

Key benefits :

• 4000 nit light output/ IP65 rating
• Small and lightweight modules = endless creativity
• Radiant calibration = superb colour uniformity

Technical specifications:

• Pixel pitch : 6,944
• Brightness : 4000 nit
• Led type : Black SMD 3 in 1
• Calibration type : Radiant
• Module size (cm) : 50 x 50 x 6,3 (WxHxD)
• Module area : 0.25 sqm / 2.69 ft²
• Pixels / module : 72 x 72
• Pixels / sqm : 20.736
• Viewing angle : >145° x 145° (HxV)
• Weight / tile : 8.5 Kg
• Weight / sqm : 34 Kg
• IP Front / Back : IP65 / IP54
• Colours : 4,4 Trillion
• Data interconnect : UTP
• Processor : Pixled
• Certificats : CE / ETL / TUV
