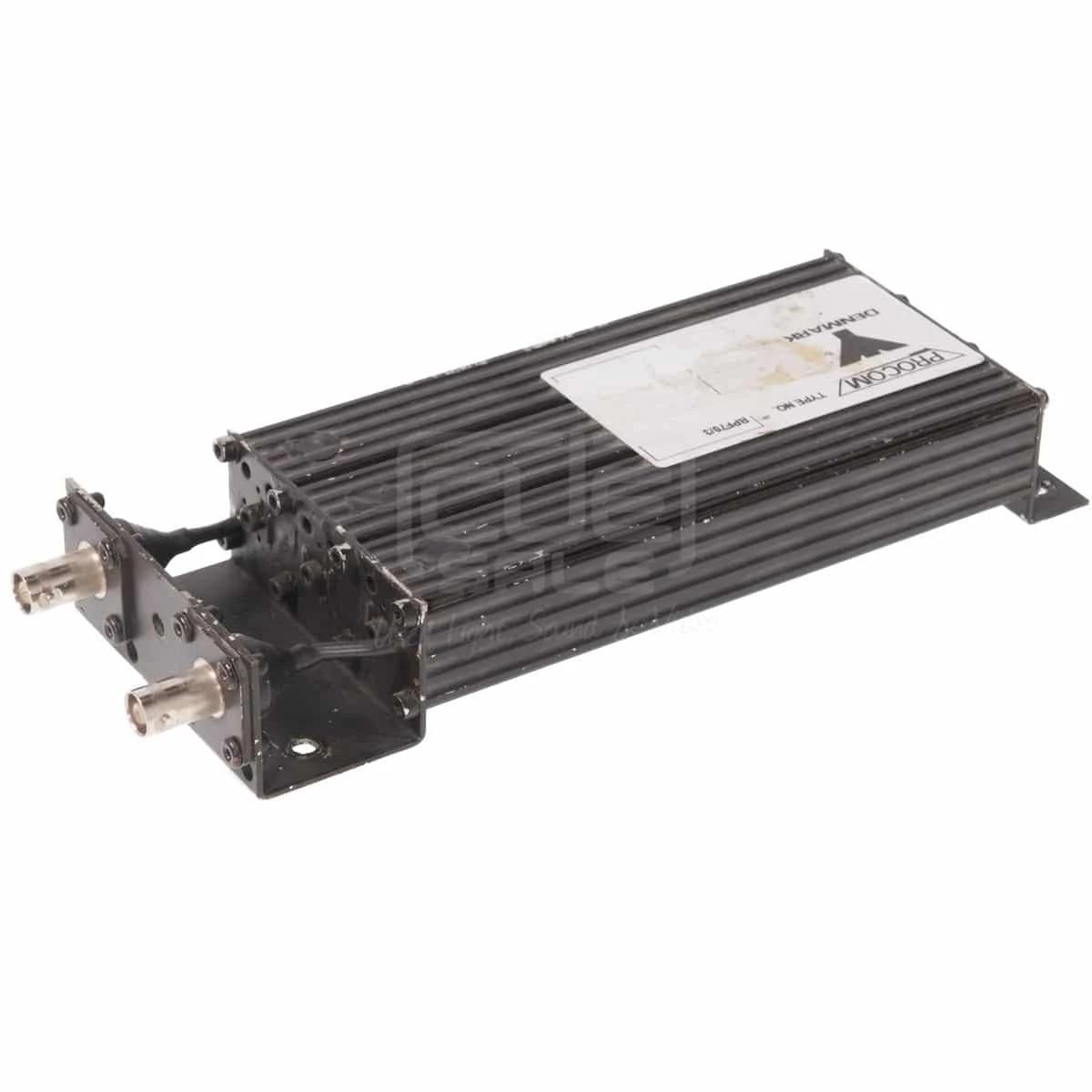

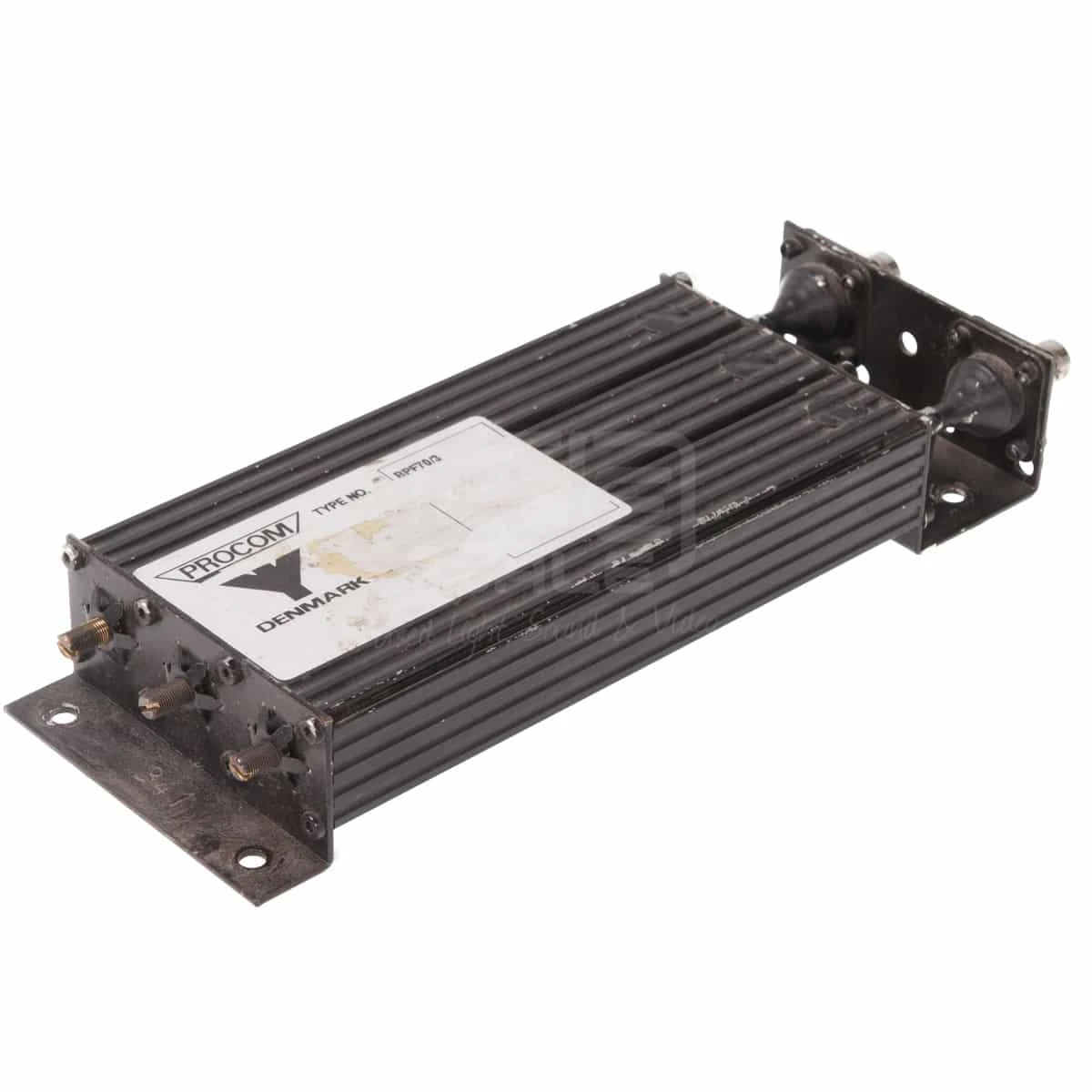

Procom Band Pass Filter BPF 70/3

Procom Band Pass Filter BPF 70/3

Features :

• The BPF 70/3 is a 3 x ¼ λ resonator band-pass filter with internal coupling between the resonators.
• This filter can be used as a preselector to protect a receiver against interference from transmissions out of the passband, or it can be used to reduce spurious output from a transmitter with up to 50 W output power.
• The filter can be tuned within the entire 380 – 470 MHz band. Careful design and choice of materials ensure reliable operation over a wide temperature range.
• The housing is made of extruded aluminium, the chassis of brass, and teflon insulation has been used in the coaxial cables and in the connectors.
• The filter is black vinyl coated to prevent corrosion.

Specifications :

• Model : BPF 70/3
• Filter Type : Band-pass filter
• Frequency : 380 – 470 MHz
• Max. Input Power : 50 W
• Insertion Loss : ≤ 1.4 dB
• Impedance : 50 Ω
• VSWR : < 1.5:1
• Bandwidth : 4 MHz
• Dimensions :
  • 225 x 77 x 33 mm
  • 8.83 x 3.03 x 1.30 in. (incl. connectors)
• Weight Approx. : 0.55 kg / 1.21 lb.
• Operating temperature range : -30 °C to +60 °C
