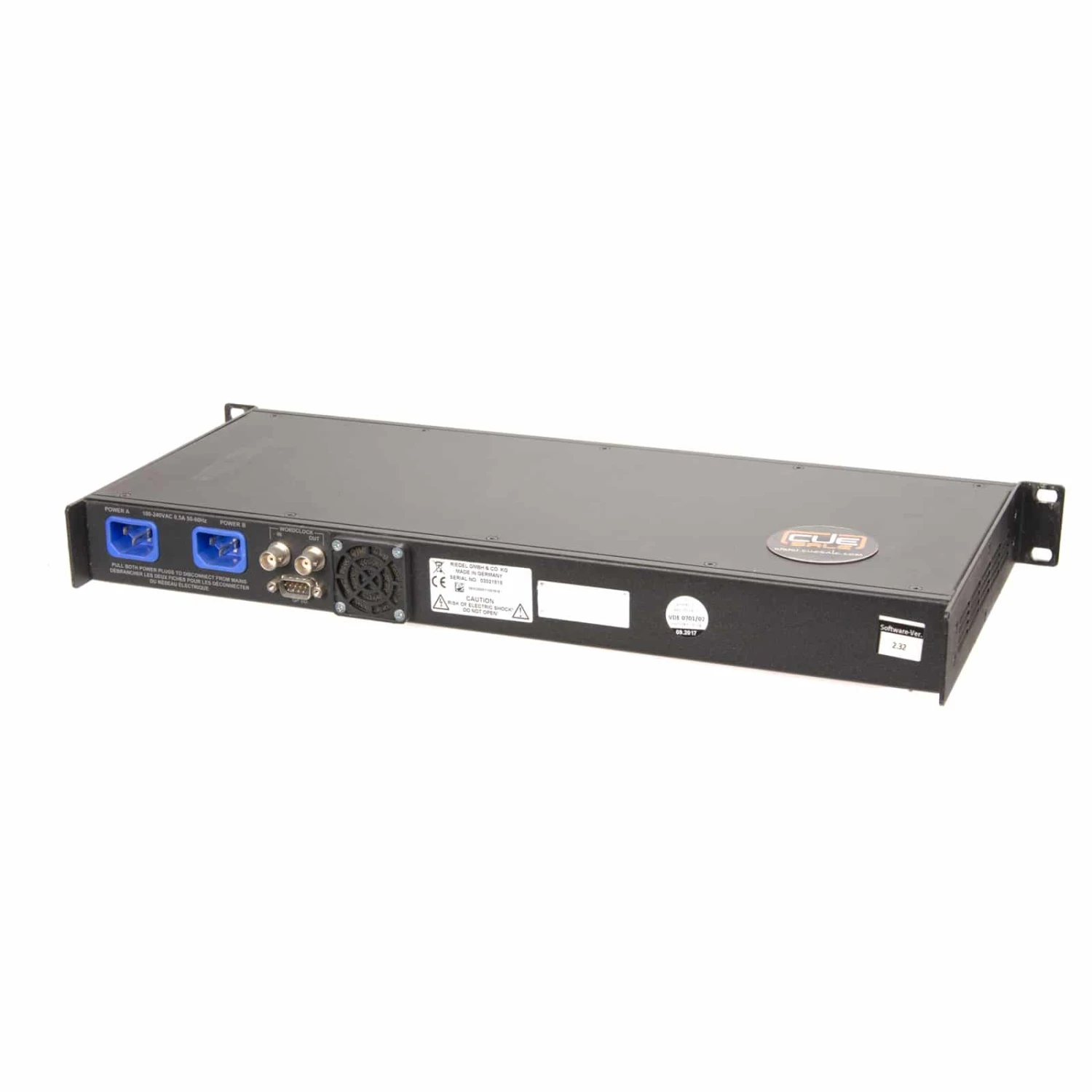

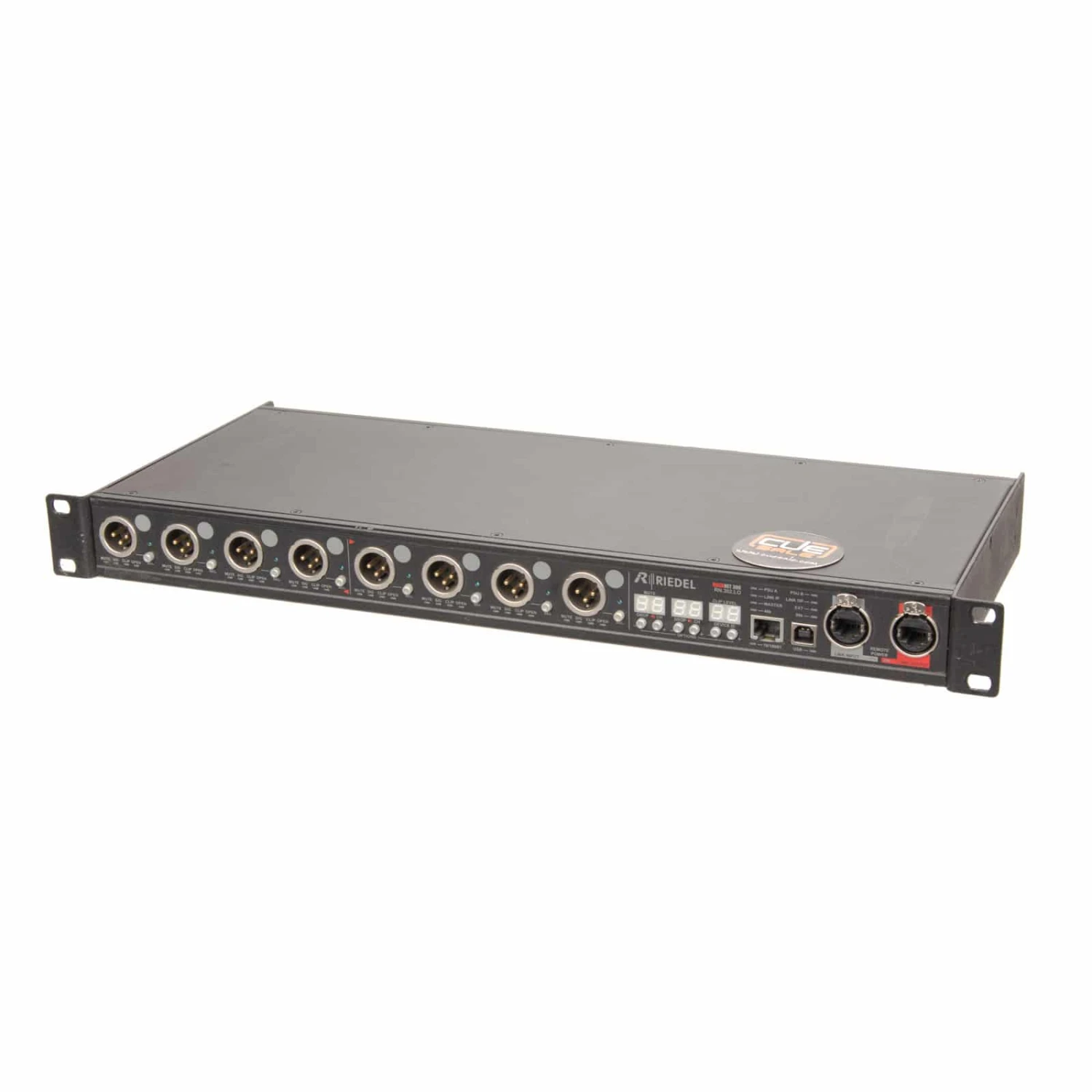

Riedel Rocknet 300 RN.302.LO

Riedel Rocknet 300 RN.302.LO 8ch line out in good condition.

Specifications

•  Channels 8 output
• Output Format Analog line
• Max. output Level +24 dBu ±0.2 dB @ digital
• Full Scale, 600 Ω load Output Level range +9 … +24 dBu
• Output Impedance <1 Ω
• Impedance Imbalance <1 % Mute Selectable per channel Noise -93 dBu @ +24 dBu “A” weighted Dynamic Range 117 dB Crosstalk -130 dB 20 Hz … 20 kHz channel-to-channel Frequency
• Response 20 Hz … 20 kHz -0.1 dB @ 48 kHz Sample Rate 20 Hz … 40 kHz 0.5 dB @ 96 kHz Sample Rate Common Mode Rejection Ratio >72 dB @ 84 dB
• Gain 0 dB In, 50 Hz … 15 kHz, 20 kHz BW, 2×300 Ω
• Level Indicators Signal, Clip
• Resolution 24 Bit
• Sample Rate 48 kHz, 96 kHz
• Delay 256 µs @ 48 kHz Sample Rate
• Ethernet Port 10 BaseT / 100 BaseT
• Wordclock In TTL / high impedance
• BNC connectors on the rear side
• Wordclock Out TTL / low impedance
• Supply Voltage 100 … 240 VAC / 47 … 63 Hz
• Power Consumption 40 VA
• Dimensions (w×h×d) 483 mm × 44 mm (1RU) × 200 mm
• Weight 3 kg
