Robe Color Wash 250AT

Robe Color Wash 250AT

A completely new optical system makes this fixture 50% brighter than its predecessor, the Wash 250 XT. New ultra smooth CMY colour mixing offers a fantastic spectrum of hues. A motorized zoom effect ranges from 8° – 32° and the extremely silent cooling system and movement make this fixture a superb choice for TV and theatre. The colour wheel offers 6 saturated colours + open, using Robe‘s renowned ″SLOT&LOCK″system. Frost filter and a beam shaper are available on the effect wheel. As with all other Robe AT moving heads, 16-bit resolution is available for movement, colour wheel positioning and dimming.

Source

• Lamp: Compact high-pressure metal halide lamp
• Base: GY9.5
• Approved model: Philips MSD 250/2
• Control: Automatic and remote on/off
• Ballast: Magnetic

Optical system

• High luminous-efficiency parabolic reflector
• Front fresnel lens of diameter 158 mm

Electrical specification and connections

• Wiring options: EU model – 208/230/240 V, 50/60 Hz, US model – 100/120/208/230 V, 50/60 Hz
• Power consumption: 405 VA at 230 V/50 Hz

Mechanical specification

• Height: 502 mm (19.8 “)
• Width: 419 mm (16.5 “)
• Depth: 438 mm (17.2 “)
• Weight: EU model – 20.5 kg (45.2 lbs), US model – 23.5 kg (51.8 lbs)

Thermal specification

• Maximum ambient temperature: 45 °C (113 °F)
• Maximum surface temperature: 70 °C (158 °F)

Control and programming

• Protocol: USITT DMX-512, RDM support
• Control channels: 16, 18 or 20
• DMX channels: 4 protocol modes
• Built-in demo sequences
• Display: 4-digit LED display
• Pan/Tilt resolution: 16bit
• Colour wheel positioning: 8 or 16bit
• Dimmer: 8 or 16 bit
• Master/Slave operation
• Stand-alone operation
• 3-editable programs, each up to 99 steps
• Movement control: Tracking and vector
• Built-in analyzer for easy fault finding

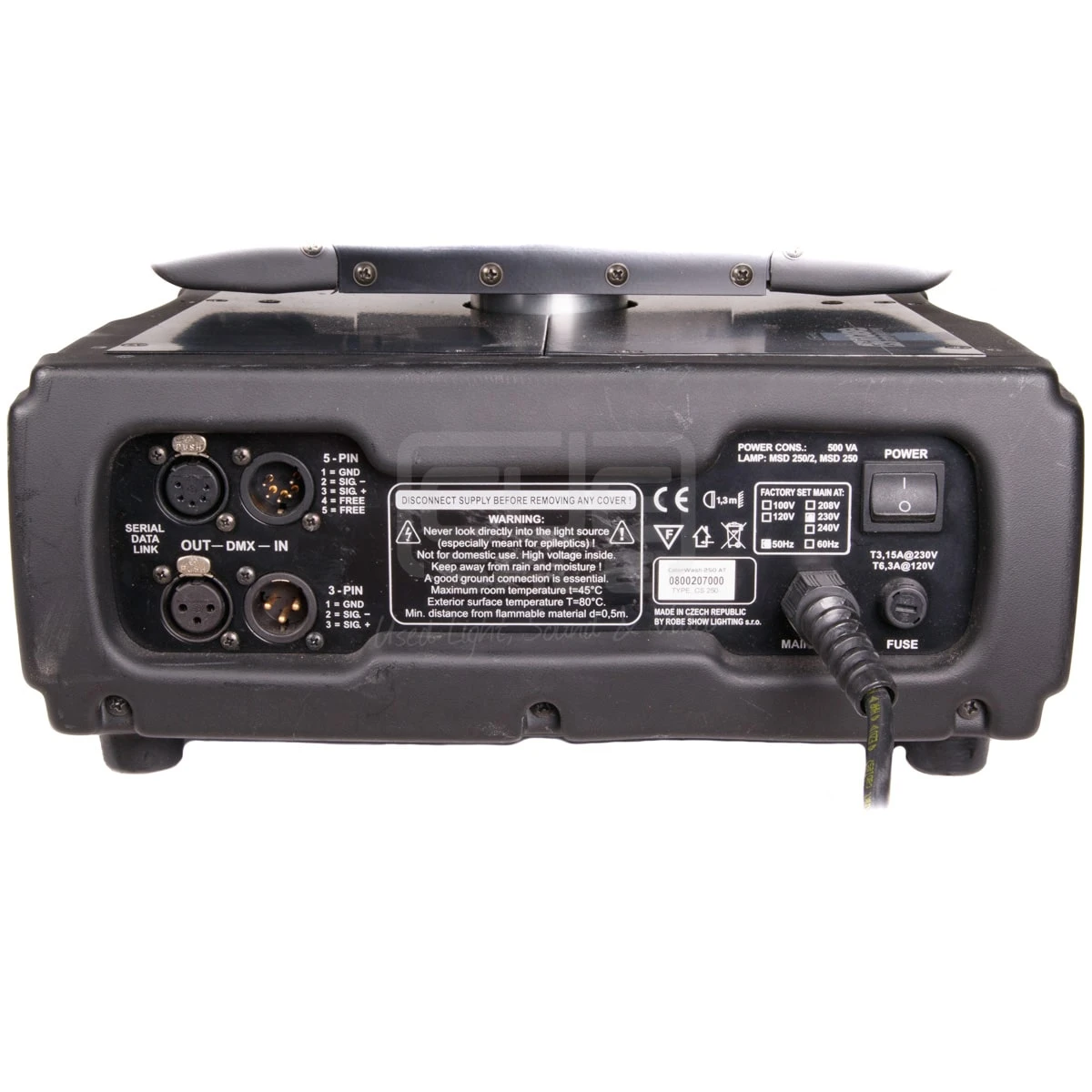

• Data in/out: Locking 3-pin XLR & 5-pin XLR

Electromechanical effects

• Cyan: 0-100%
• Magenta: 0-100%
• Yellow: 0-100%
• Colour wheel: 6 replaceable ″SLOT&LOCK″ dichroic filters + open
• Effect wheel: Beam Shaper rotated by 90°, Frost Filter
• Dimmer/Shutter: Full range dimming and variable strobe effect
• Zoom: Motorized zoom 8° – 32°
• Pan: 530°
• Tilt: 268°
