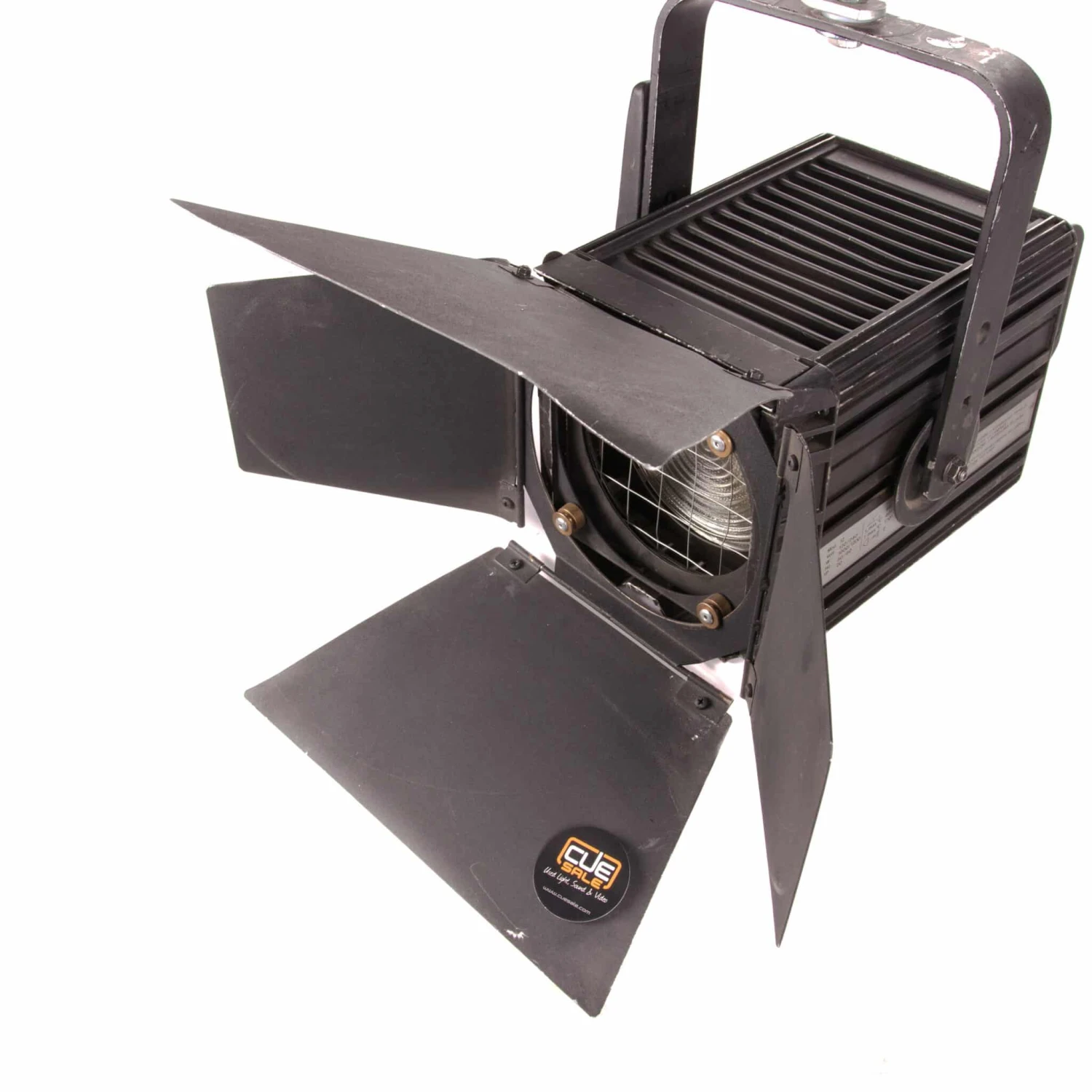

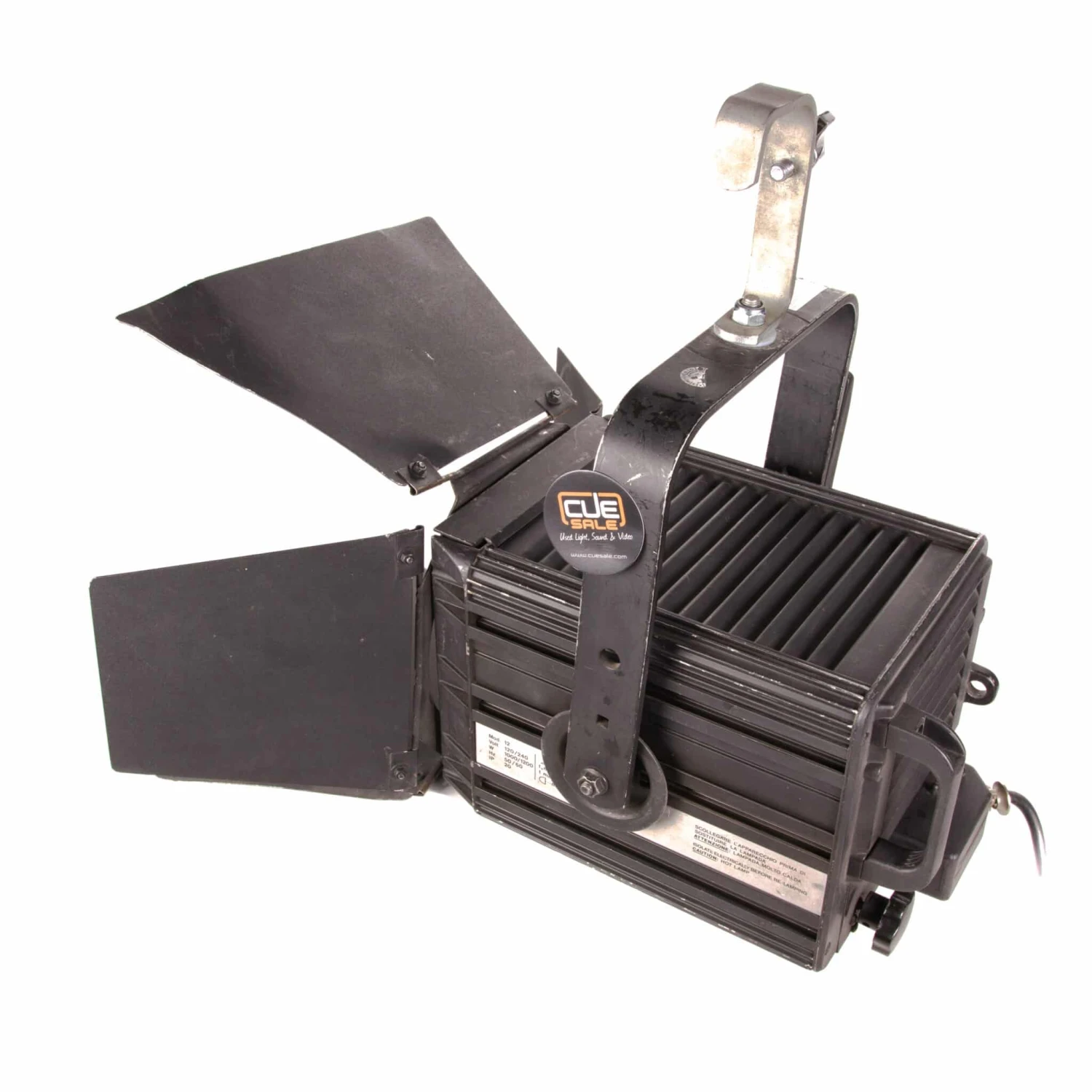

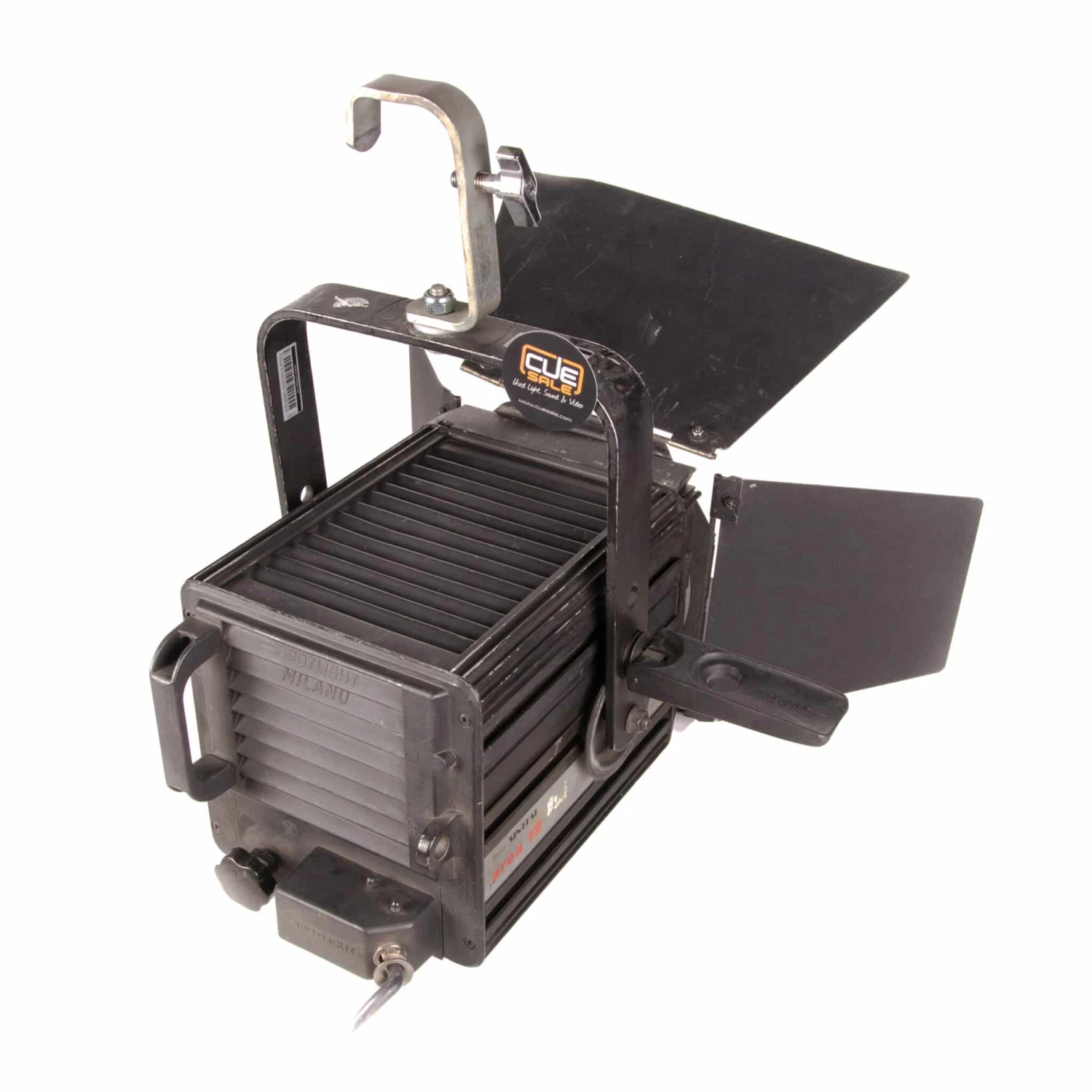

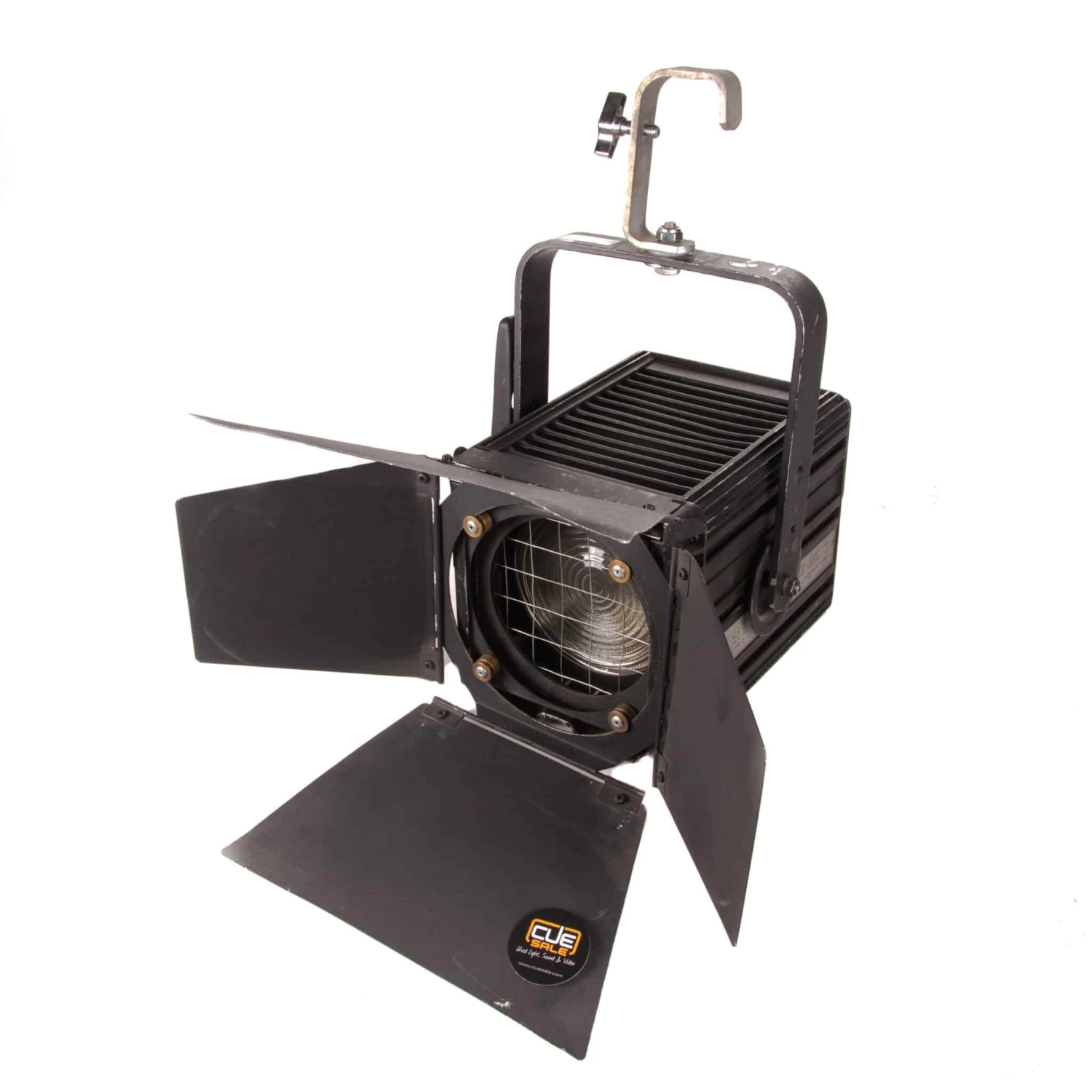

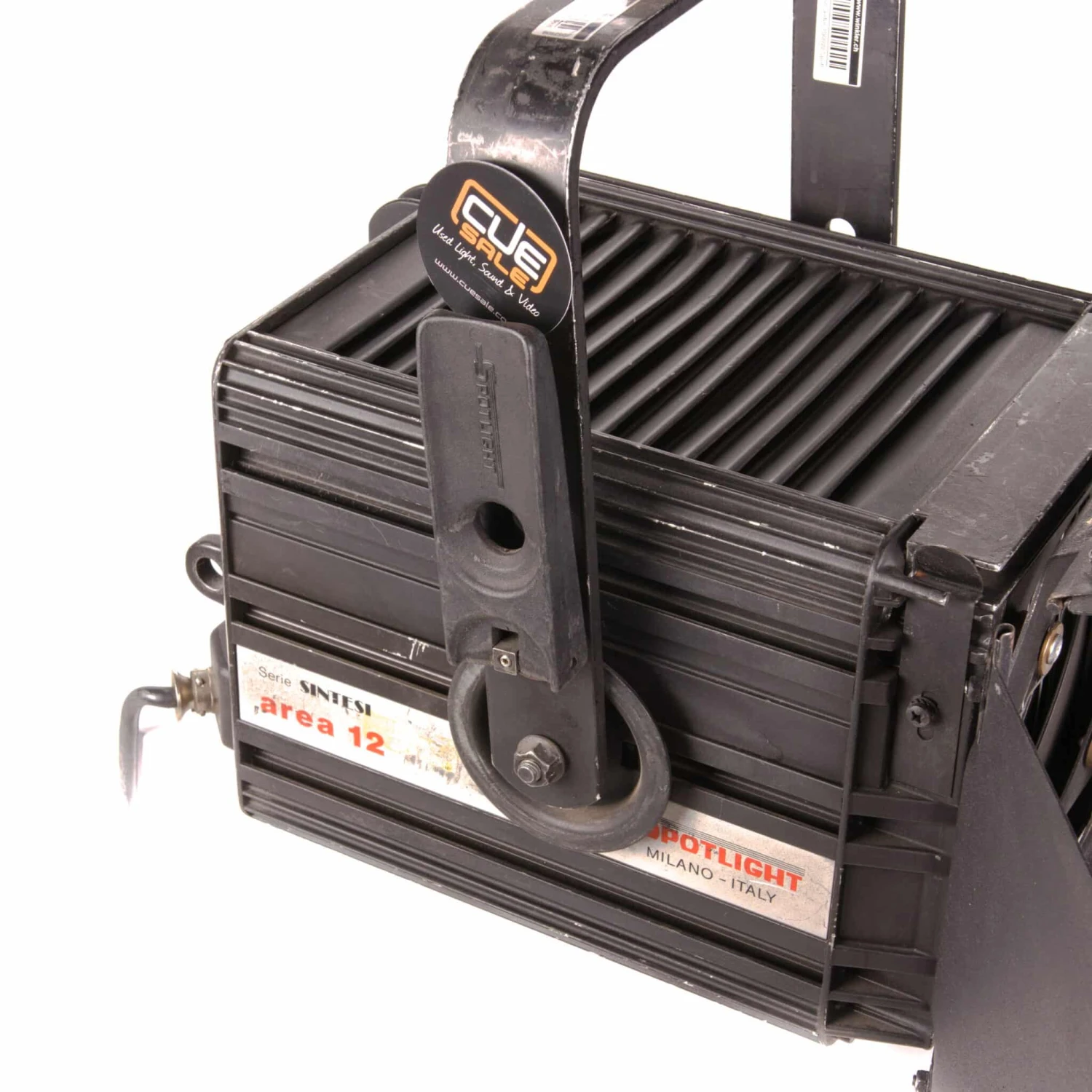

Spotlight Sintesi Area 12 1kW Fresnel

Spotlight Sintesi AREA 12 1kW fresnel

• Including Barndoor
• Including Clamp

A Fresnel luminaire with a soft-edged beam – Variable from 7 to 53° 110mm Ø borosilicate lens – Barndoors optional – Power: 1000/1200W

Technical Specifications

Electrical
• Standard 230V, 50/60Hz power supply (others available on request)
• Lamp-holder type GX 9.5
• 2m power supply cable (plug available on request)
• Strain relief cable clamp entry into light housing

Safety
• Automatic power cut-out by bipolar microswitch on opening the lamp-tray
• Safety mesh
Safety bond attachment
• Filter-frame locking system
• Compliance to CE EN 60598-2-17 standards

Optical
• Spherical reflector in 99.99% polished and treated aluminium: 100mm diameter
• 150mm diameter borosilicate lens mounted onto extended holders to allow ventilation

Mechanical
• Die-cast extruded aluminium housing
•  Black optical internal paint to give no light reflection and high temperature resistance
• Black Epoxy Resin paint
• Labyrinth ventilation to avoid light spillage

Operational
• Lamp-tray hinged to the housing and completely removable for easy maintenance
• Accessory top covered by a door
• Yoke with 10mm diameter hole, adjustable height, reversible and sliding into extruded rails to balance accessories and for use in any position
• Heat insulated knobs and handles
• Quick tilt positioning with fast-locking levers
• Lamp-holder mounted onto an easily adjustable plate for 1000 to 1200 W lamps
• Focus adjustment by an endless screw mechanism operated by rear knob
