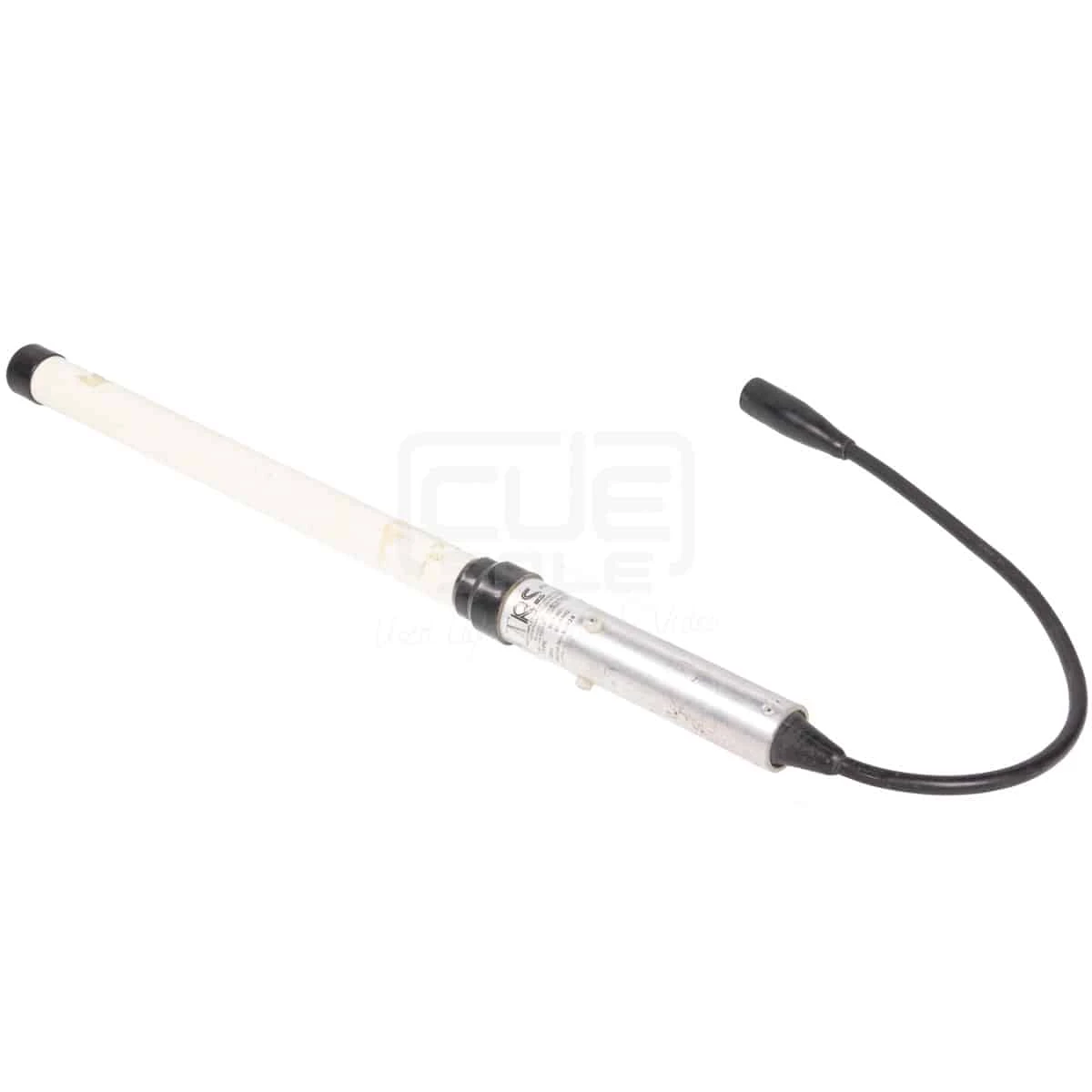

TRS Antennas ENF Series

TRS Antennas ENF Series

Several models available, please select

The ENF series omni directional antennas are built using only high quality and long lasting components. These antennas have been built to a high telecommunications specification and can withstand the harshest  environmental conditions.

Specifications :

• Gain over 1/2 wave dipole Unity
• V.S.W.R <1.5:1
• Maximum input power 200 Watts
• Input impedance 50 Ohms
• Beam width E-plane 80° H-plane 360° (omni)
• Bandwidth +/- 2 to 4 % of centre frequency – Typical depending on frequency
• Polarisation Vertical
• Connection Rg213 cable with N- type socket
• Shroud Reinforced glass fibre tube
• Base section 1.1/2 x 12 swg Aluminium tube
• Radiating elements Brass plasfilm coated
• Wind loading 2 – 14 Kgf @ wind velocity of 160 Kph
• Weight 0.9 – 1.2 Kg
