Uniview 6.2mm LED Floor 16m2 (SET) Novastar

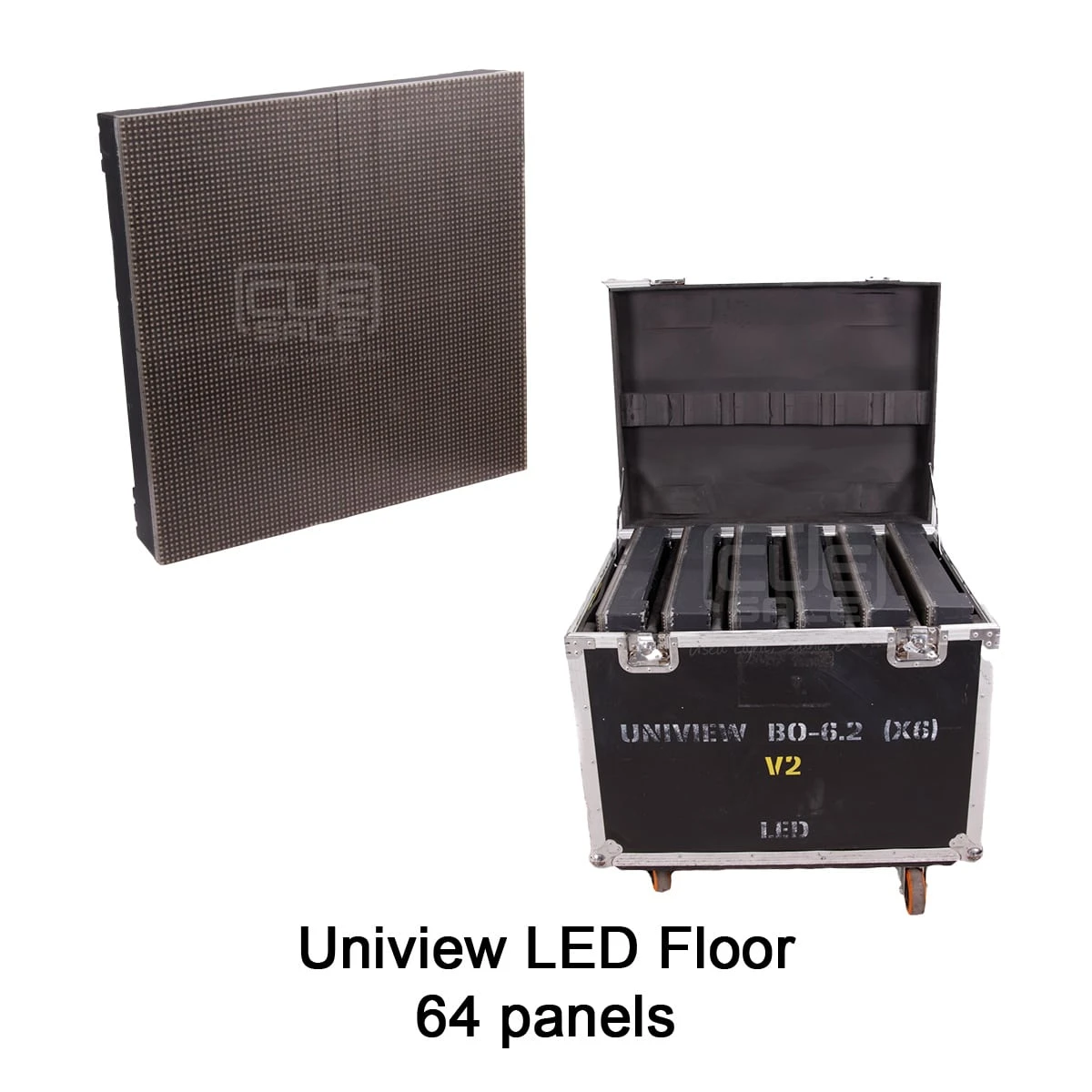

Uniview 6.2mm LED Floor (SET) Complete package of 64 panels (16 square meter)

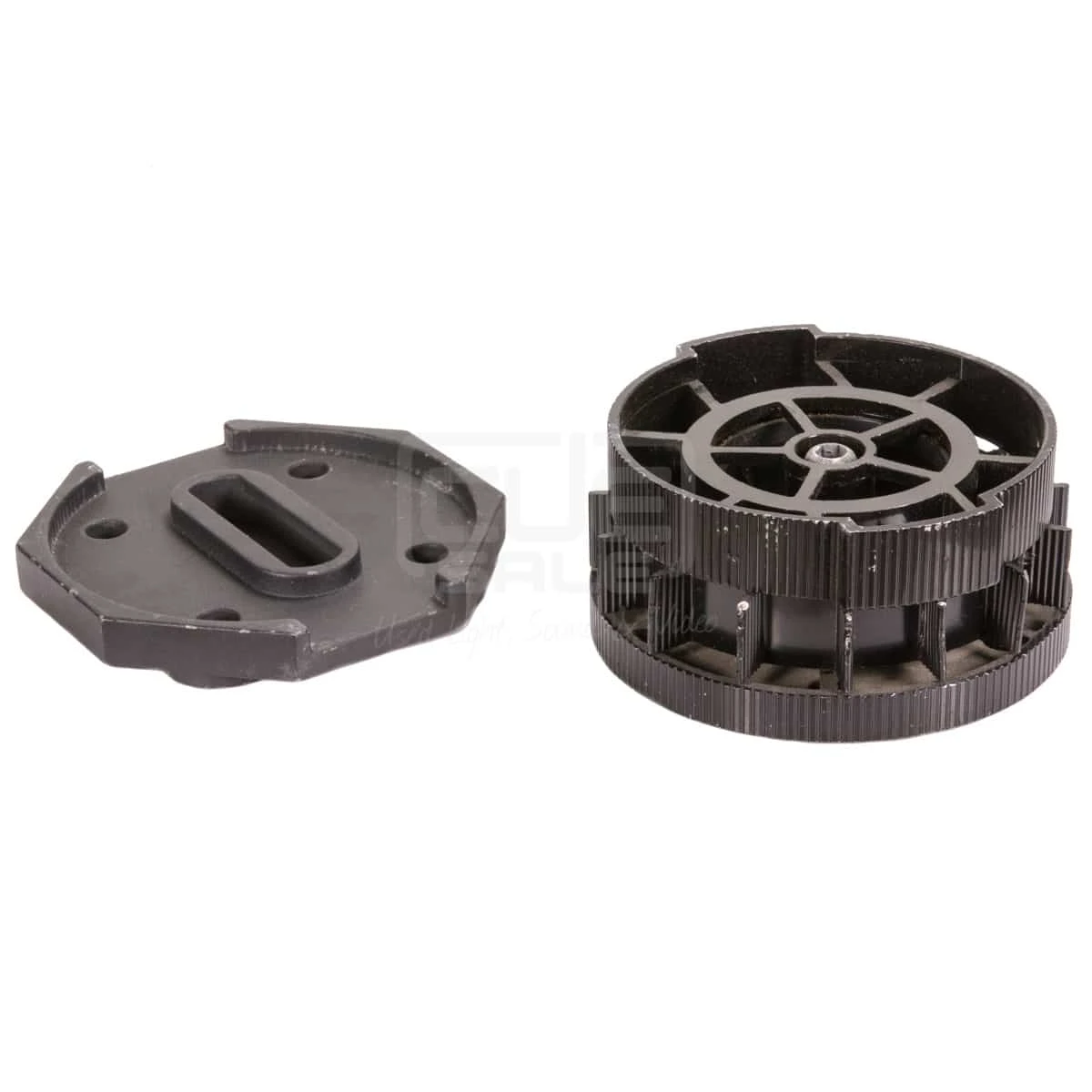

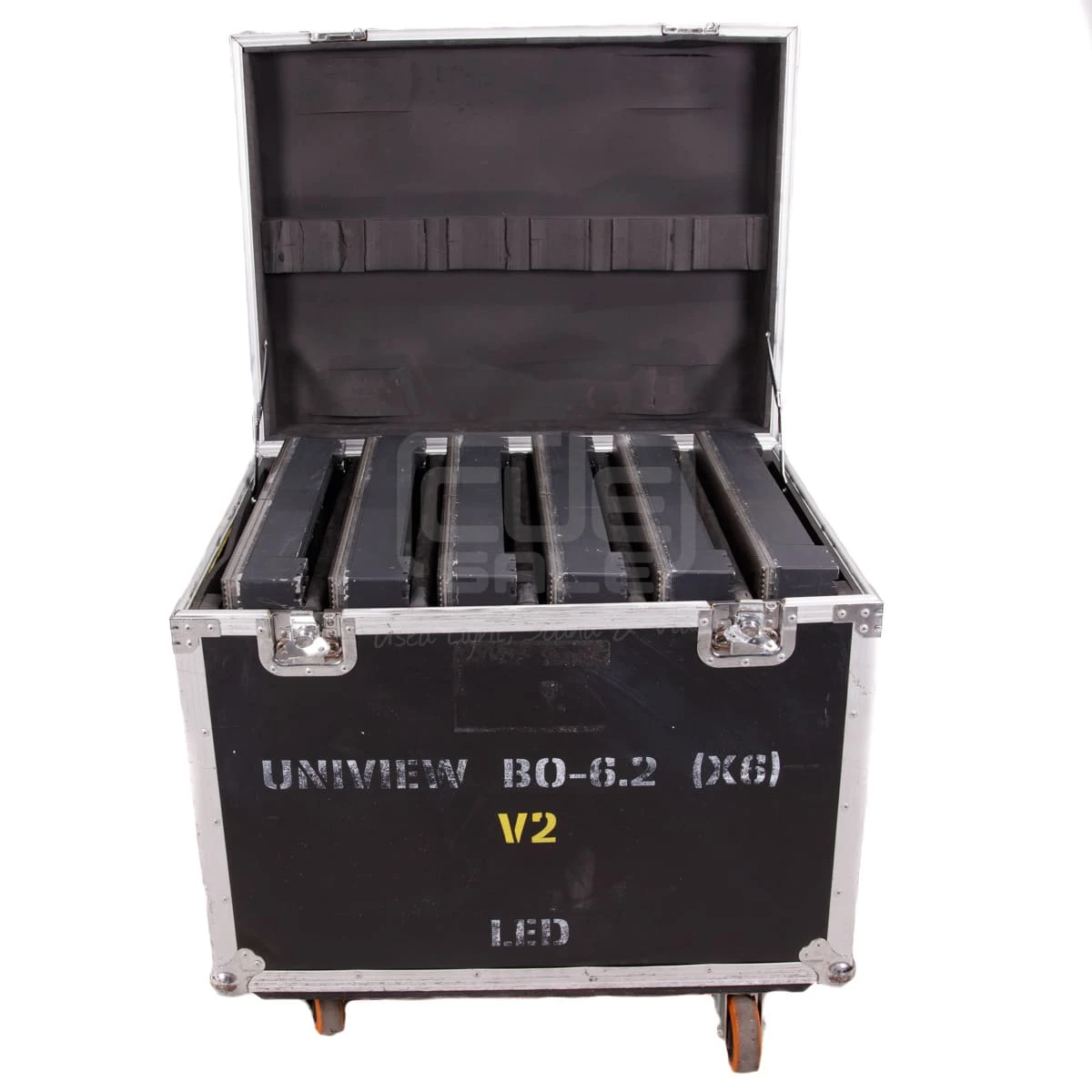

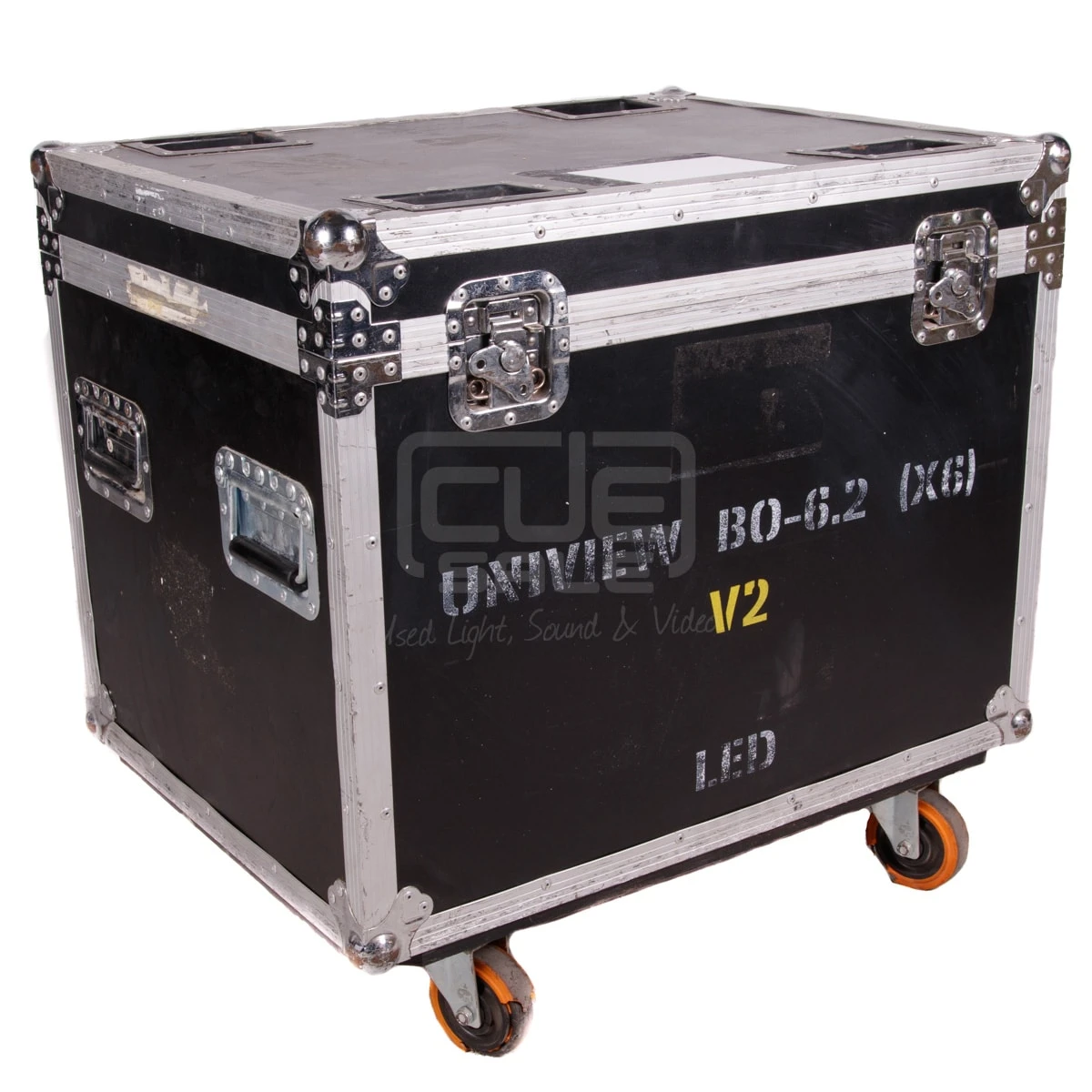

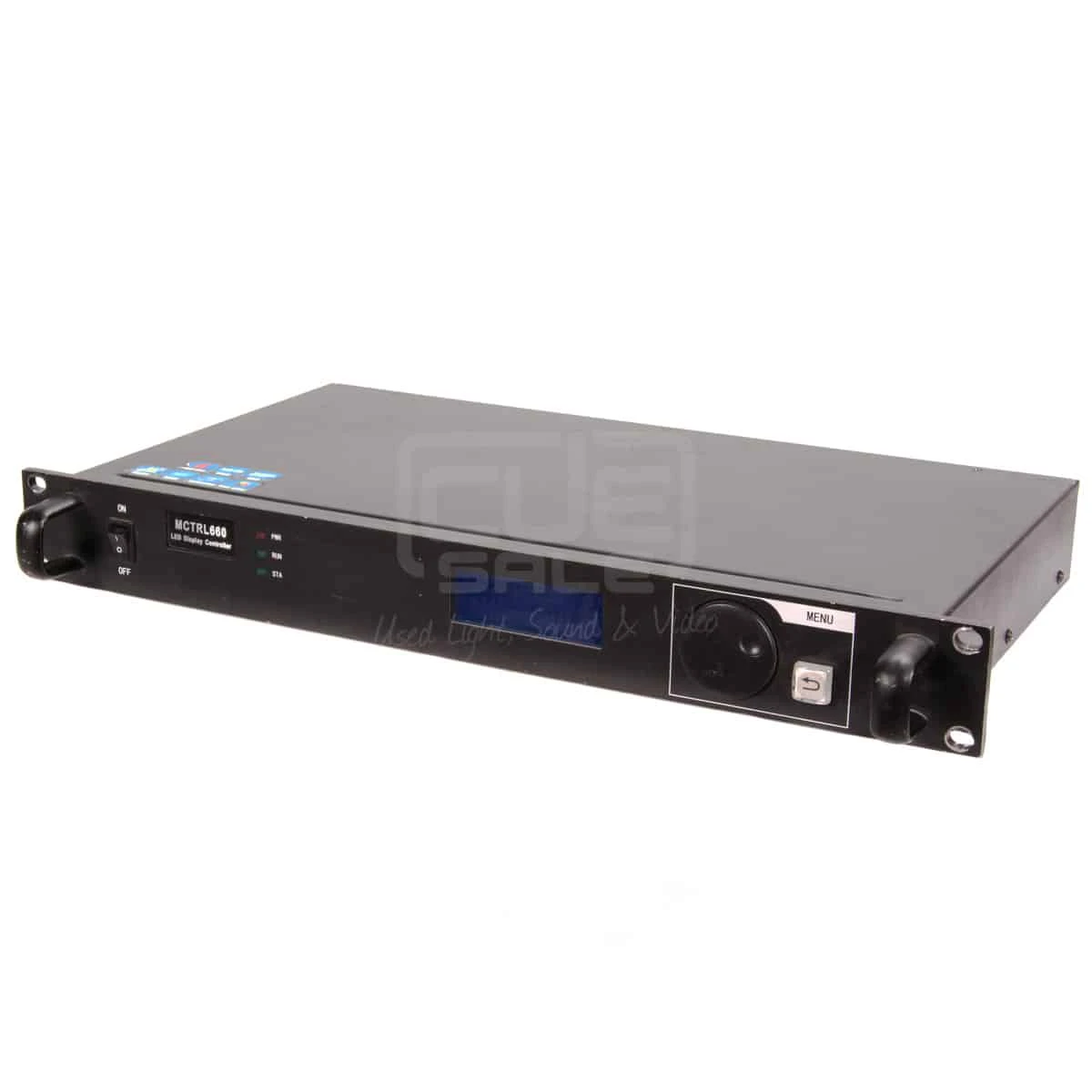

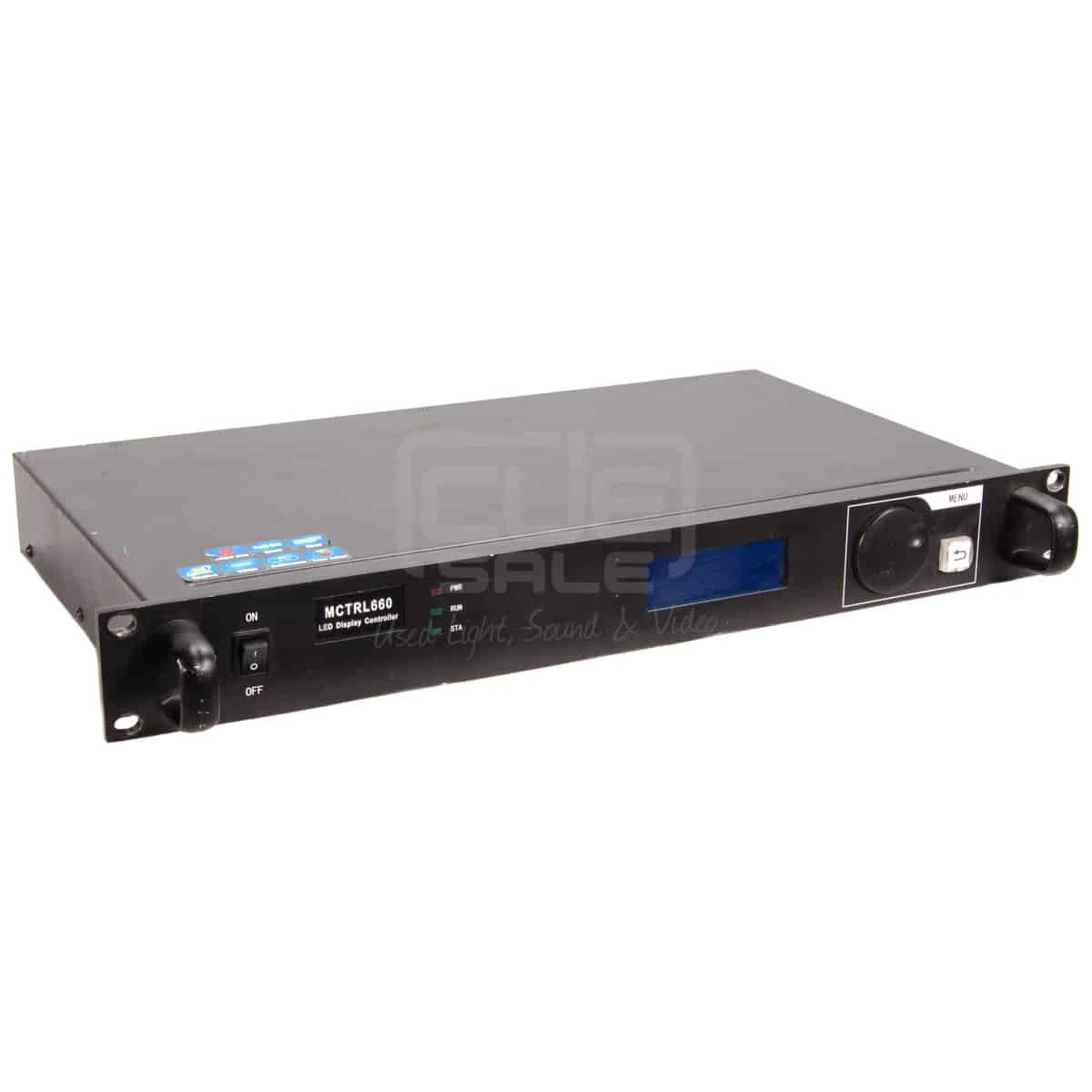

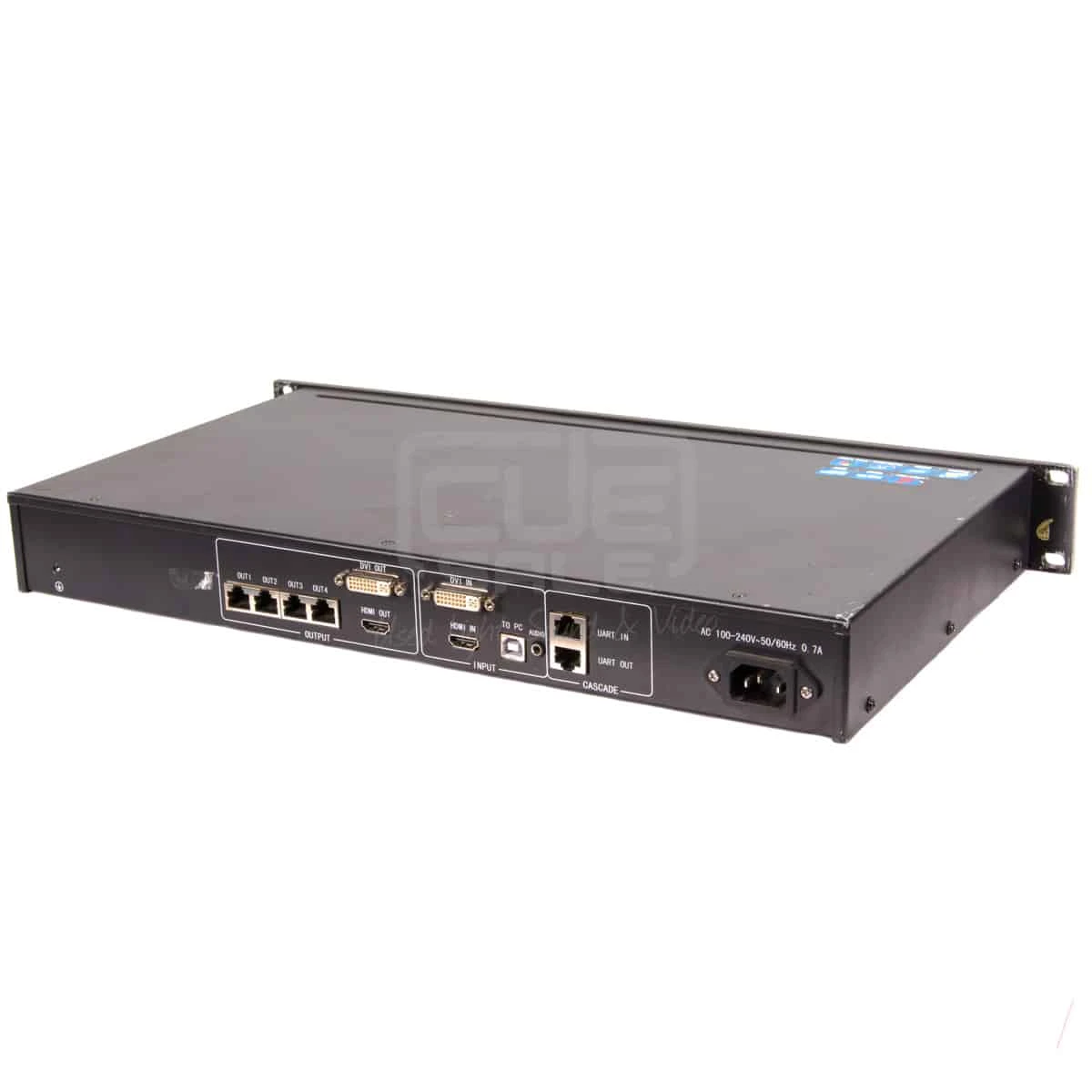

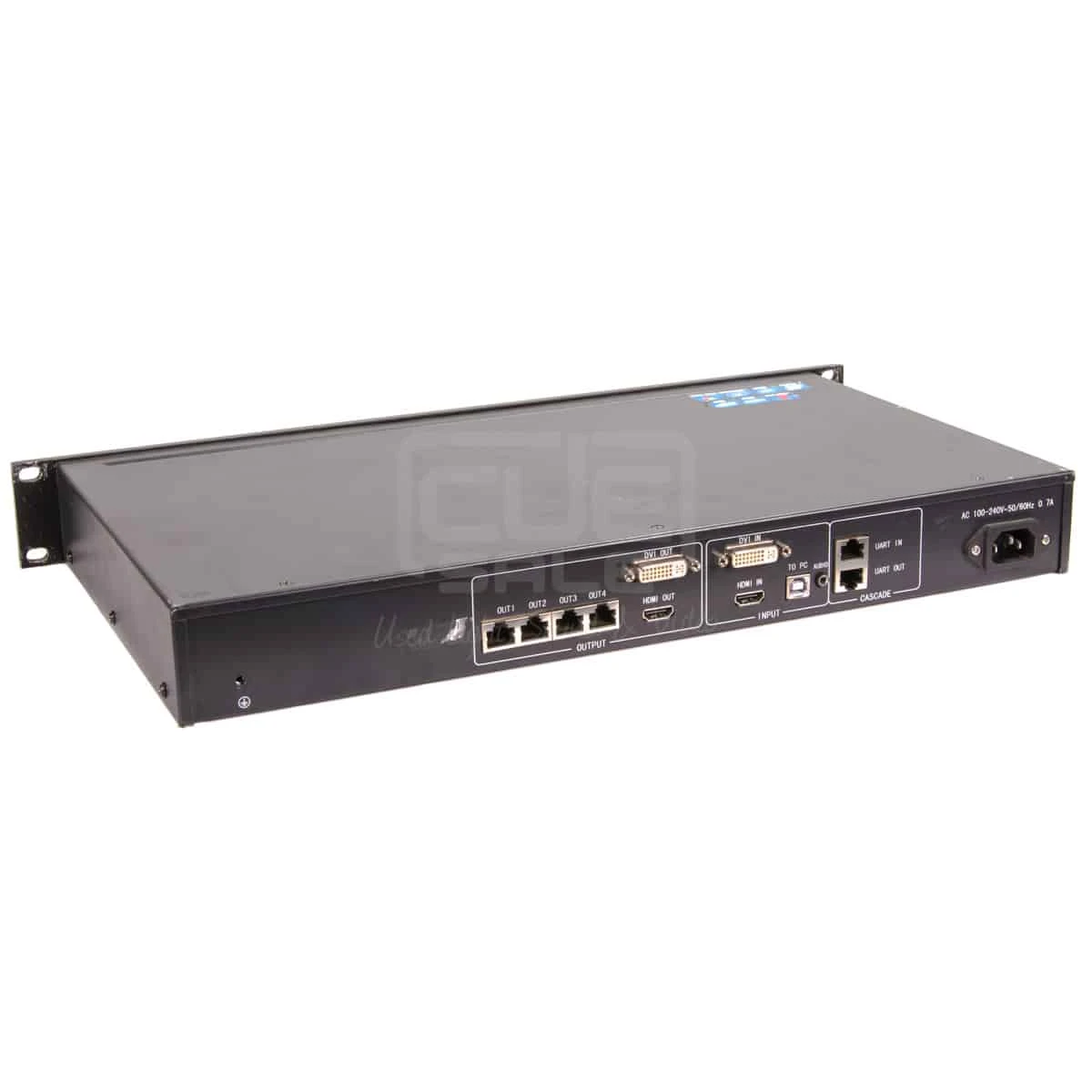

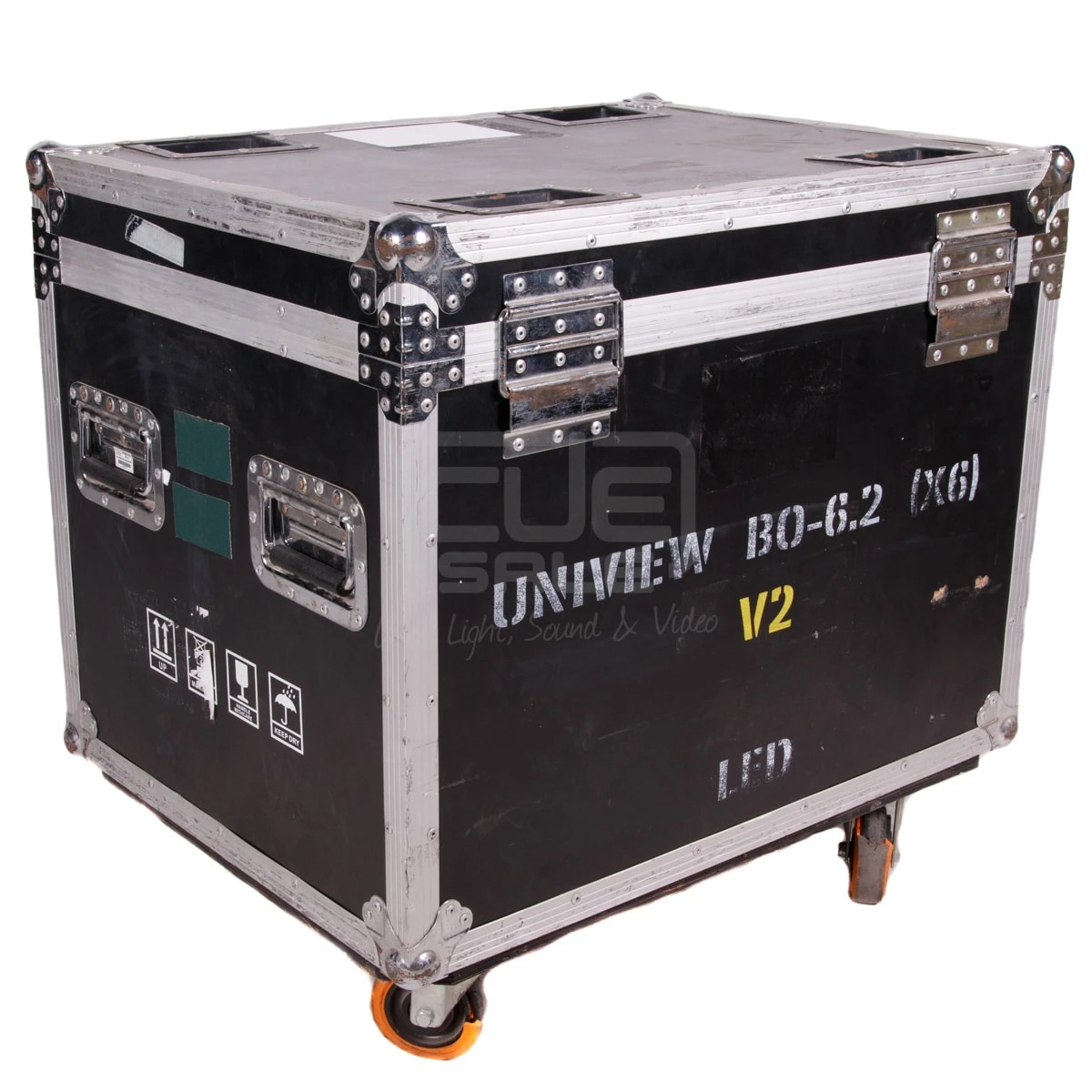

Including Novastar processor: MCTRL660, flightcases and floor supports

Download spec sheet

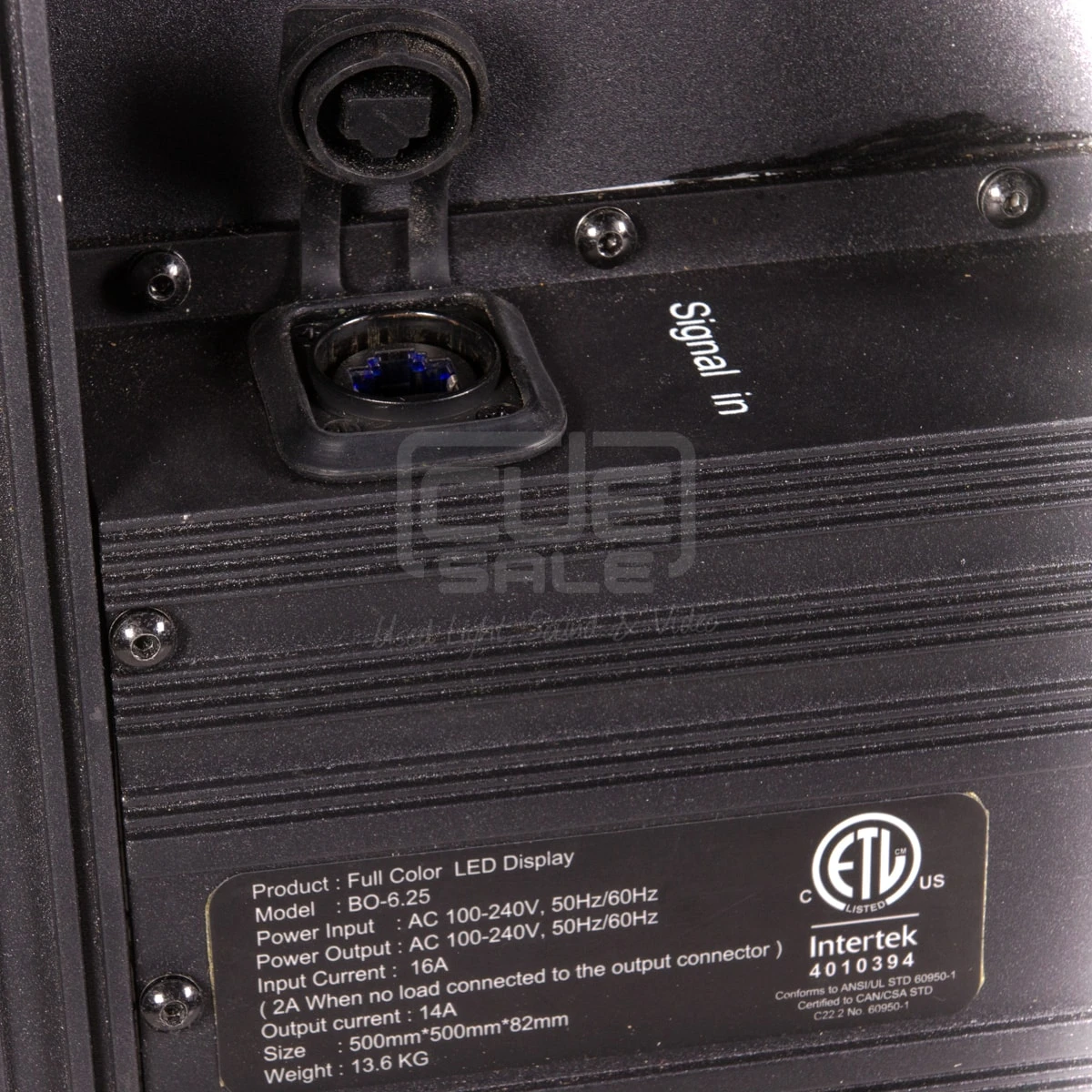

Loading capacity over 2000kg/sqm. IP65 Rated. Powercon TRUE1 / Ethernet

• Pixel Pitch (mm): 6.25
• LED Configuration : SMD2727/2020
• Brightness (cd/m² ) : 3500/1000
• Module Size (W x H mm): 250×250
• Module Resolution: 40×40

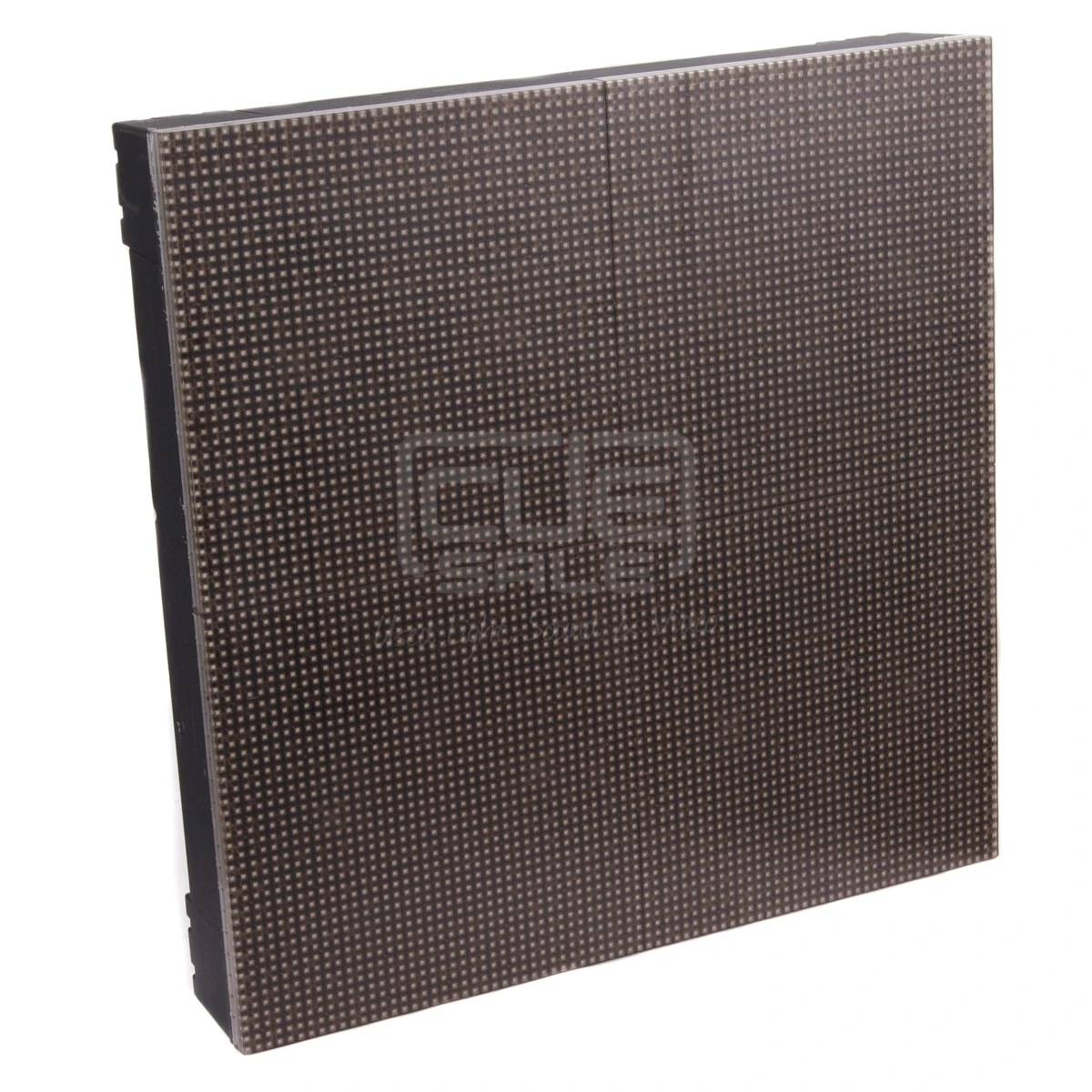

• Cabinet Size (W x H x D mm): 500x500x82
• Cabinet Resolution: 80×80
• Cabinet Weight (kg/pcs): 13
• Power Consumption (Max/Avg W/pcs): 180/60
• Refresh Rate (Hz): 1920/3840
• Gray Scale (Bit): 14
• Viewing Angle (H/V): 120°/ 120°
• IP Rating (Front/Rear) : IP65/IP54
