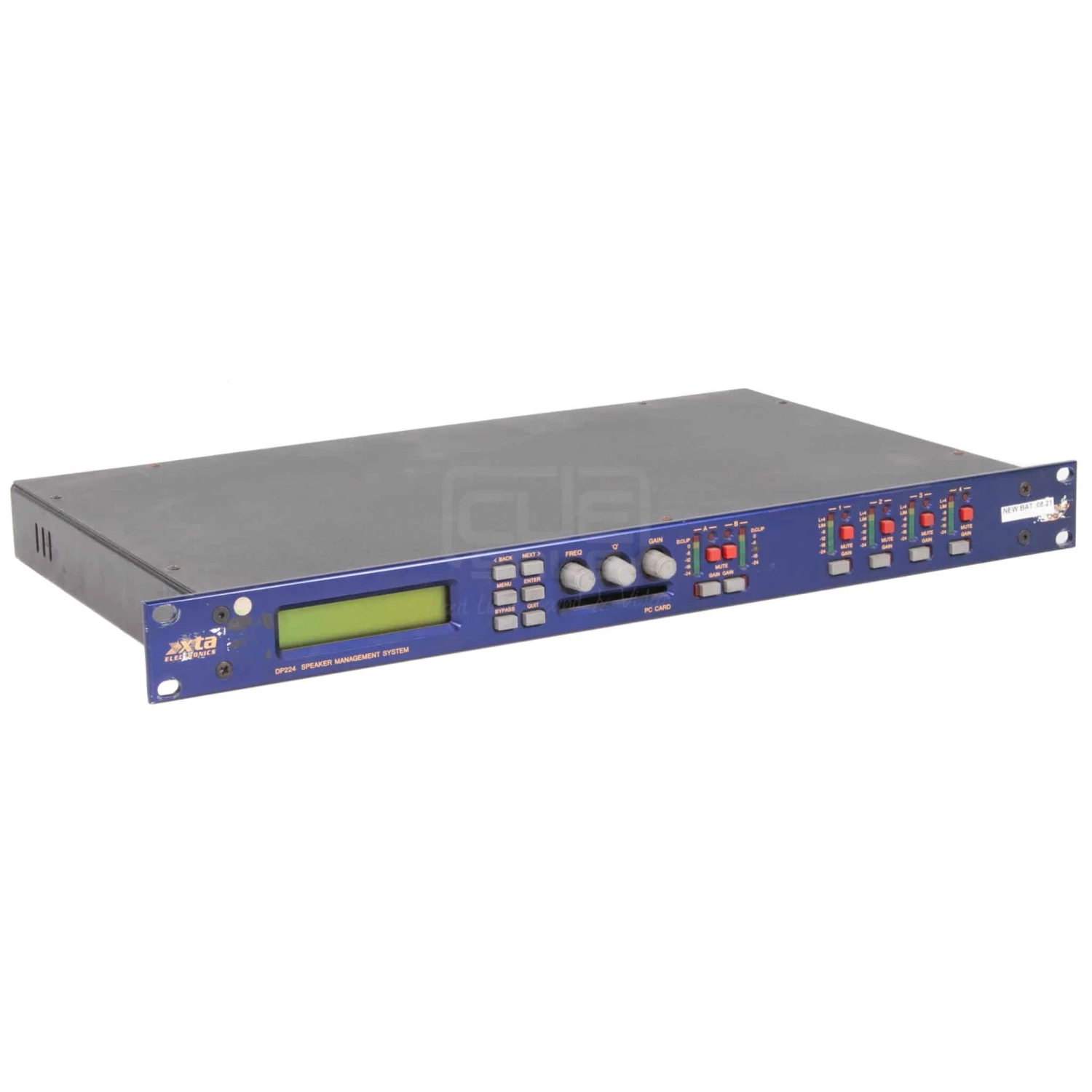

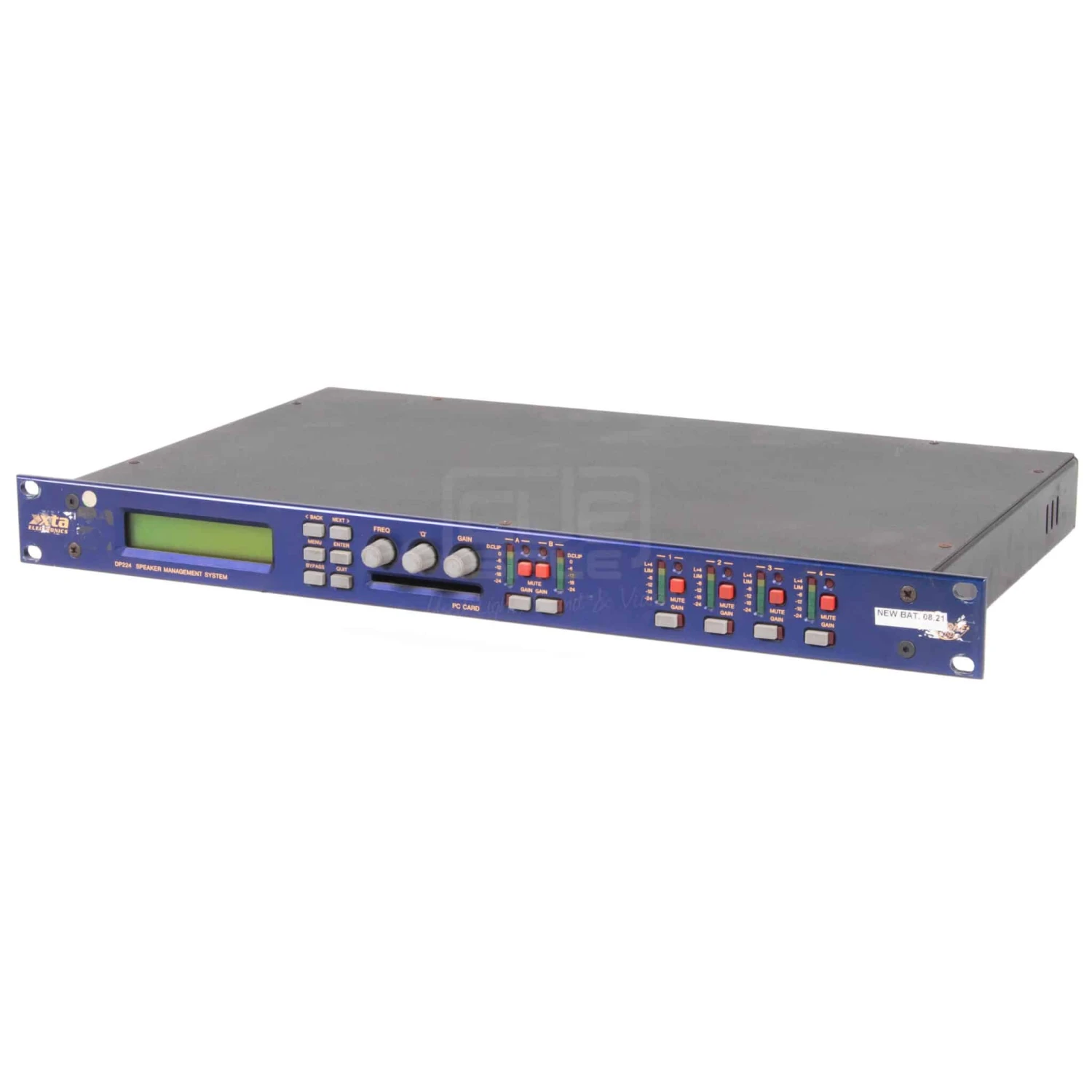

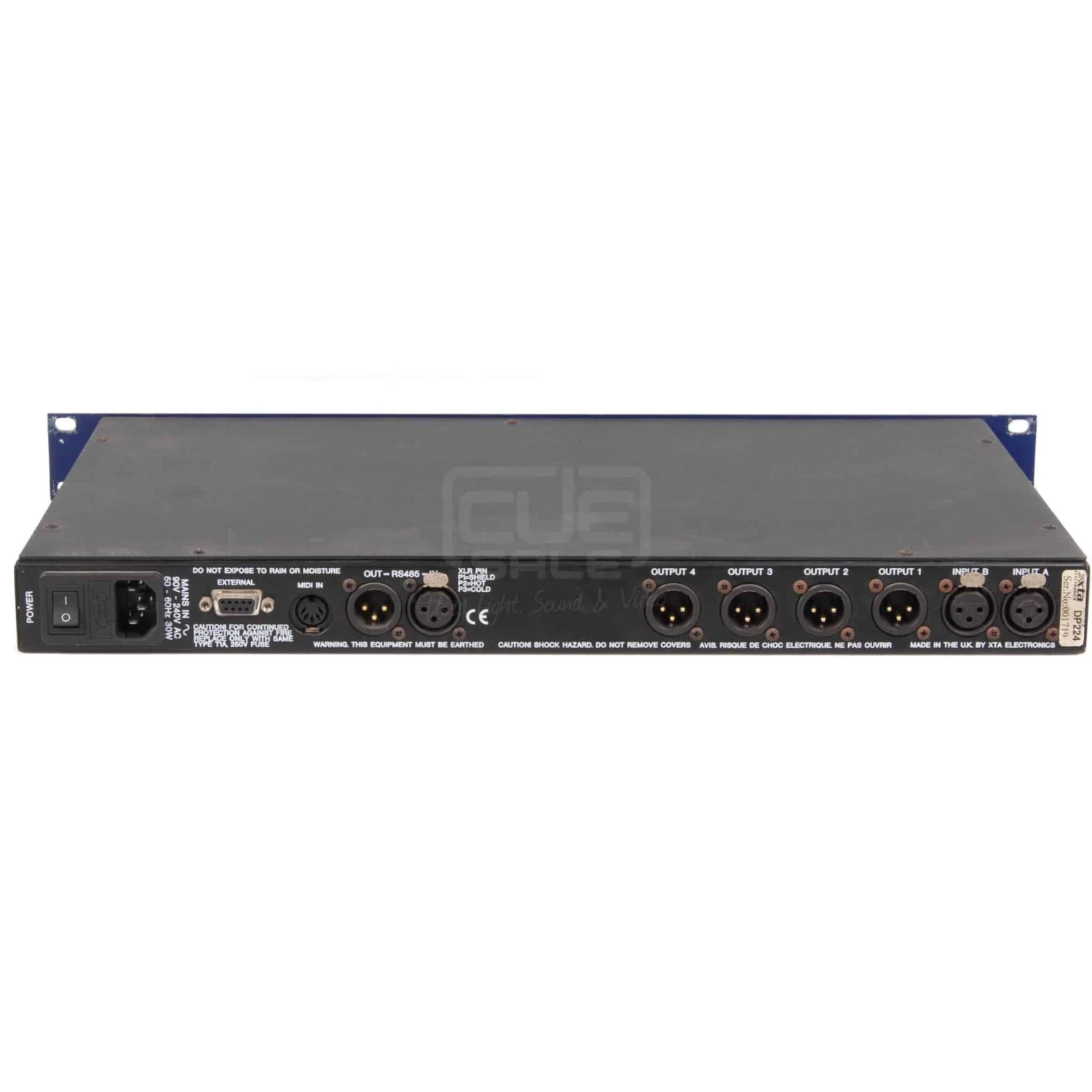

XTA Electronics DP224 Speaker Management System

XTA Electronics DP224 Speaker Management System

The DP224 loudspeaker management system features 2 inputs and 4 outputs, and has an 8 band parametric equalizer for each input. Outputs all feature crossover filters, 5 band parametric equalizers, selectable high and low shelving filters, a fully featured limiter and delay. Full metering is provided for both inputs and outputs, with mute and access buttons on the faceplate allowing quick set up and gain adjustment. The DP224 can also be controlled via PC with XTA’s AudioCore™ control software.

Superb audio quality – carefully optimized double precision signal processing coupled with a 40-bit internal data path ensures a dynamic range in excess of 110dB. The high sampling rate means minimal filtering providing exceptional sonic purity. A flexible 2-input/4-output multi-mode format caters for any crossover configuration, regardless of scale.
