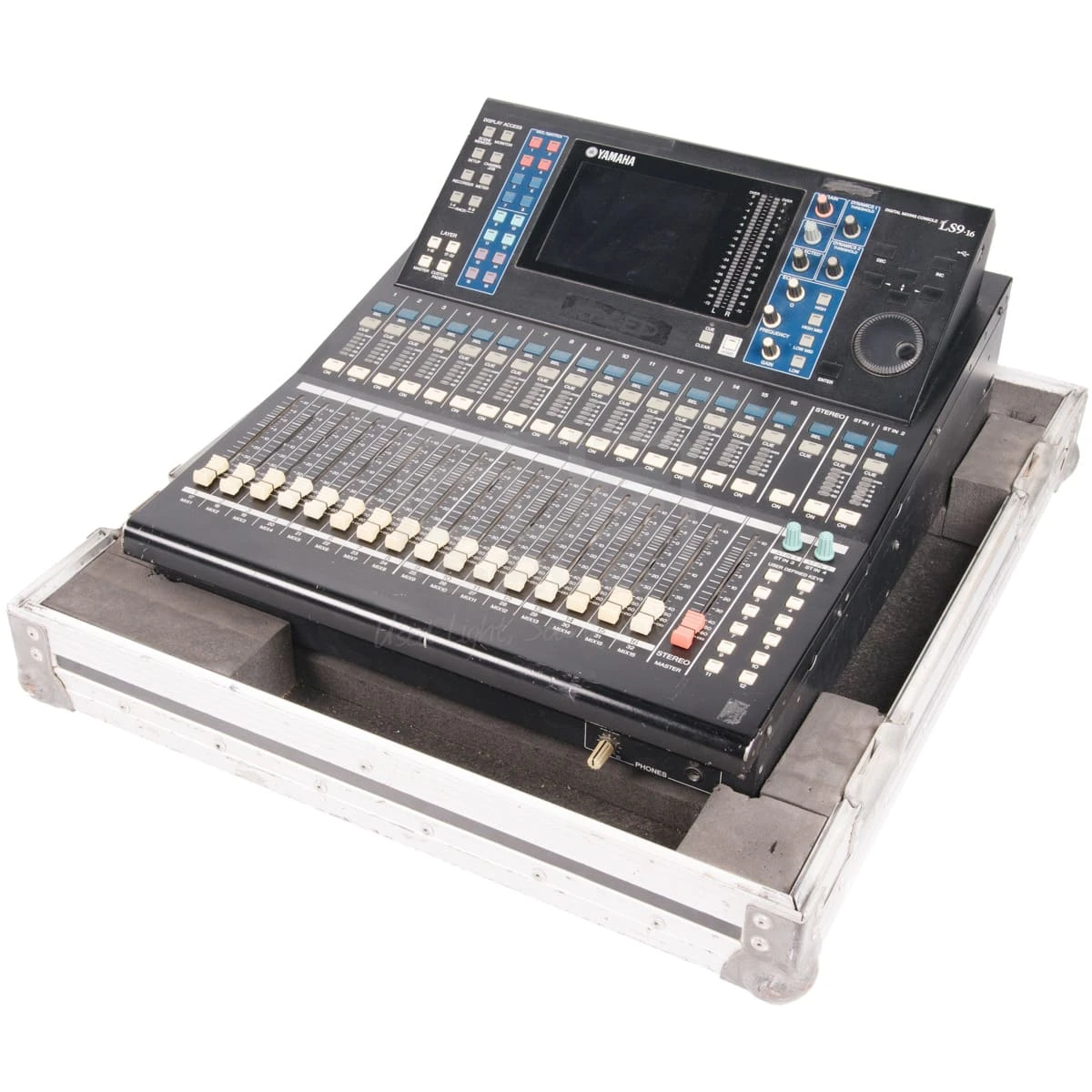

Yamaha LS9-16 Digital Mixer

Yamaha LS9-16 Digital Mixer

Lightweight, compact digital mixers with advanced features and outstanding sound quality.

The LS9 series consoles follow in the distinguished footsteps of the Yamaha PM1D, PM5D, and M7CL, expanding Yamaha’s digital mixing console lineup for live sound and installations. The LS9 series consists of the 32-mic/line input 64-channel LS9-32, and the 16-mic/line input 32 channel LS9-16. While being compact and light enough for one person to move and set up easily, both models include features that have been field-proven in previous Yamaha digital consoles as well as outstanding sonic quality. In addition to an extensive range of gating, compression, and equalization capabilities, there’s also a built-in USB memory recorder/player for recording or BGM playback, and other functionality that give you everything you need for small to medium scale live sound or installed applications in remarkably compact, all-in-one consoles.

Analog Input Characteristics

• Input 1-16 :
  • Gain : -62dB | +10dB
  • Actual Load Impedance : 3k ohms
  • For Use with Nominal : 50-600 ohm Mics & 600 ohm Lines
• Input Level :
  • Sensitivity : -82dBu | -10dBu
  • Nominal : -62dBu | +10dBu
  • Max. before clip : -42dBu | +30dBu
  • Connector : XLR3-31

Analog Output Characteristics

• OMNI Out 1-16 :
  • Actual Source Impedance : 75 ohms
  • For Use with Nominal : 600 ohm Lines
  • Gain SW : +24dB | +18dB
• Output Level :
  • Nominal : +4dBu | -2dBu
  • Max. before clip : +24dBu | +18dBu
  • Connector : XLR-3-32
• Phones Out :
  • Actual Source Impedance : 15 ohms
  • 8 ohm Phones :
    • Nominal  : 75 mW
    • Max. before clip : 150 mW
    • Connector : ST Phone jack
  • 40 ohm Phones :
    • Nominal : 65 mW
    • Max. before clip : 150 mW
    • Connector : ST Phone jack

Digital Output Characteristics

• Terminal : 2TR In Digital Coaxial
• Format : IEC60958
• Data Length : 24 bit
• Level : 0.5Vpp/75 ohms
• Connector : RCA pin jack

Control I/O Characteristics

• Network (Ethernet) : 100Base-T , RJ45
• MIDI In : DIN 5 Pin
• MIDI Out : DIN 5 Pin
• Word Clock In : TTL/75 ohms Terminated, BNC
• Word Clock Out : TTL/75 ohms, BNC
